38430 (CCR 3000) - Toro Snow Thrower (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY (MODEL NO. 38435) Parts Diagram

Snow Thrower

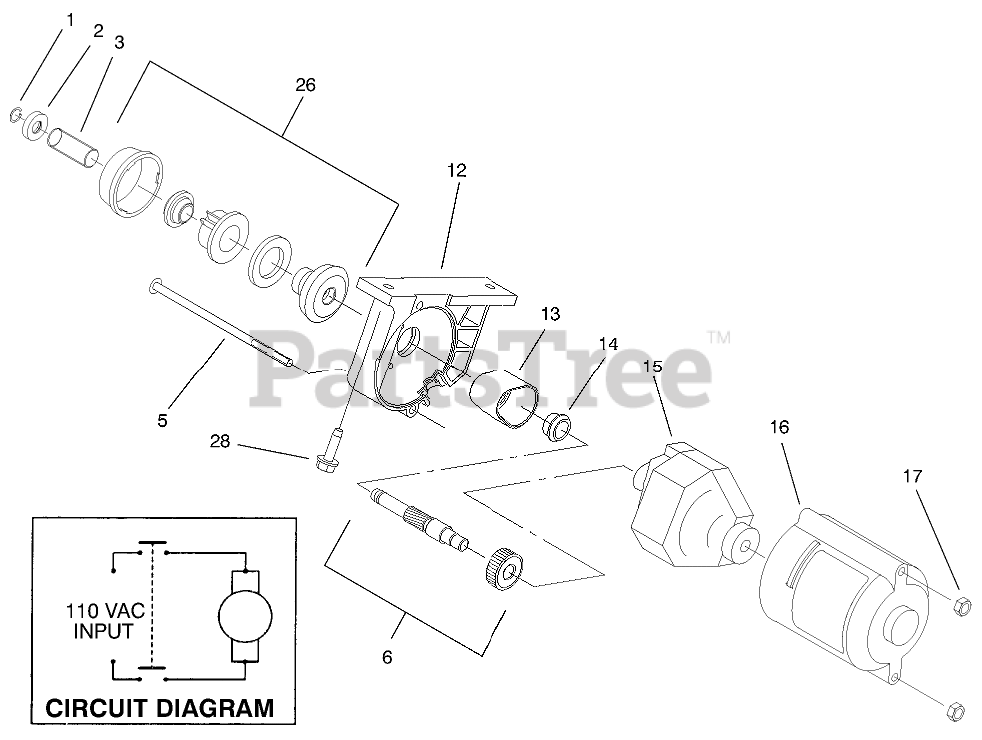

ENGINE ASSEMBLY (MODEL NO. 38435) Parts Diagram

  • Title

1

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 20+

0

2

Toro 61-4670

PINION STOP

$14.99

$

In Stock, only 4 left!

0

3

Toro 61-4690

SPRING

$

$

Not available

5

Toro 32144-101

SCREW

Note: Included in a service kit or in an assembly

$1.99

$

In Stock, only 4 left!

0

6

Toro 92-6003

Asm-shaft & Gear
(Superseded to 105-8831)

$116.99

$

Usually ships in 3-6 days

0

12

Toro 80-0710

HOUSING

$

$

Not available

13

Toro 70-7850

COVER-GEAR

$11.99

$

Usually ships in 3-6 days

0

14

Toro 70-7900

BUSHING

$3.49

$

In Stock, only 1 left!

0

15

Toro 70-7801

STARTER MOTOR ASSEMBLY

$

$

Not available

16

Toro 83-7350

HOUSING - LOWER STARTER

$

$

Not available

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 61-4700

Pinion ASM

$

$

Not available

28

Toro 56-6380

SCREW
(Superseded to 110-3986)

$1.49

$

Usually ships in 3-6 days

0
