38430 (CCR 3000) - Toro Snow Thrower (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY (MODEL NO. 38430) Parts Diagram

Snow Thrower

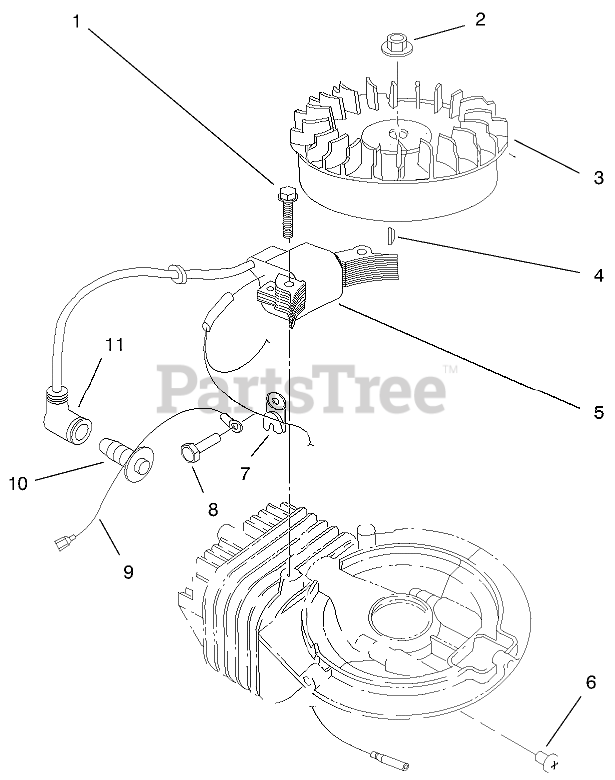

ENGINE ASSEMBLY (MODEL NO. 38430) Parts Diagram

  • Title
1

Toro 81-5710

SCREW

$

$

Not available

2

$11.99

$

Usually ships in 3-6 days

0

3

Toro 81-0320

FLYWHEEL

$

$

Not available

4

$7.49

$

Usually ships in 3-6 days

0

5

Toro 94-8890

ASM - MAGNETO COIL

$

$

Not available

6

Toro 81-0380

SCREW

$

$

Not available

7

Toro 81-1480

CLAMP

$5.99

$

Usually ships in 3-6 days

0

8

$

$

Not available

9

$

$

Not available

10

Toro 50-1170

SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

11

Toro 81-1500

CAP-SPARKPLUG

$40.99

$

In Stock, only 2 left!

0
