38430 (CCR 3000) - Toro Snow Thrower (SN: 089000001 - 089999999) (1998) DISCHARGE CHUTE & DEFLECTOR ASSEMBLY Parts Diagram

Snow Thrower

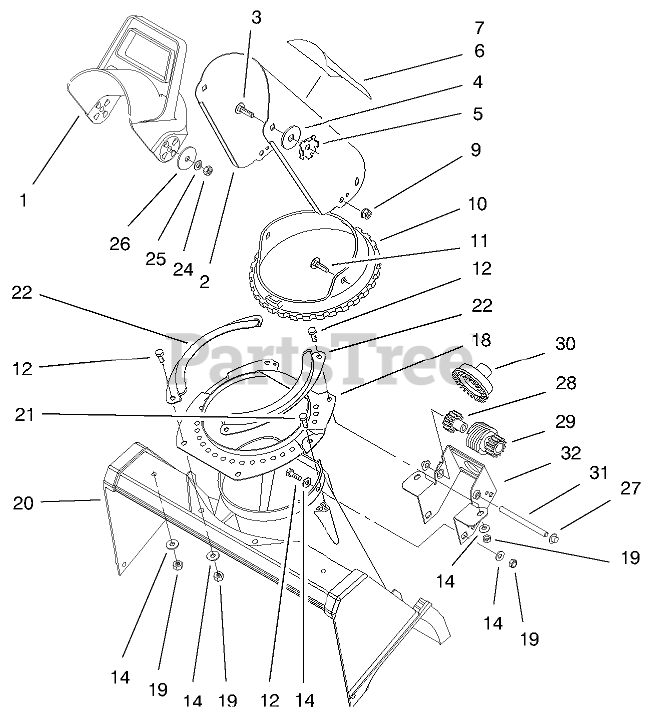

DISCHARGE CHUTE & DEFLECTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 56-2680

CHUTE-DEFLECTOR

$23.99

$

In Stock, only 1 left!

0

2

Toro 94-2790

CHUTE ASM W/DECAL
(Superseded to 104-4115)

$68.99

$

In Stock, only 1 left!

0

2

Toro 94-2791

CHUTE ASM

$

$

Not available

3

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

4

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

5

Toro 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

6

Toro 94-2900

DECAL - DANGER DISCHARGE
(Superseded to 104-4135)

$5.99

$

In Stock, only 1 left!

0

7

Toro 94-2901

DECAL-DANGER

$

$

Not available

9

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

10

Toro 55-8720

RING-GEAR, CHUTE

$

$

Not available

11

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 55-8921

Ring-Chute Support
(Superseded to 55-8921-03)

$28.99

$

In Stock, Qty 9

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 55-8700

HOUSING

$

$

Not available

21

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 20+

0

22

Toro 55-8910

Retainer-Chute Ring
(Superseded to 55-8910-03)

$21.99

$

In Stock, Qty 5

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

26

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

27

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 2 left!

0

28

Toro 55-8750

GEAR-SPUR, SPACER

$18.99

$

In Stock, only 1 left!

0

29

Toro 55-8730

GEAR-SPUR/WORM
(Superseded to 105-3512)

$40.99

$

In Stock, only 1 left!

0

30

Toro 55-8740

GEAR-FACE

$

$

Not available

31

Toro 55-9150

SHAFT-GEAR, WORM

$25.99

$

In Stock, only 1 left!

0

32

Toro 84-5650

Bracket-Chute Gear
(Superseded to 105-3513)

$

$

Not available
