38430 (CCR 3000) - Toro Snow Thrower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY MODEL NO. 47PT6-4 Parts Diagram

Snow Thrower

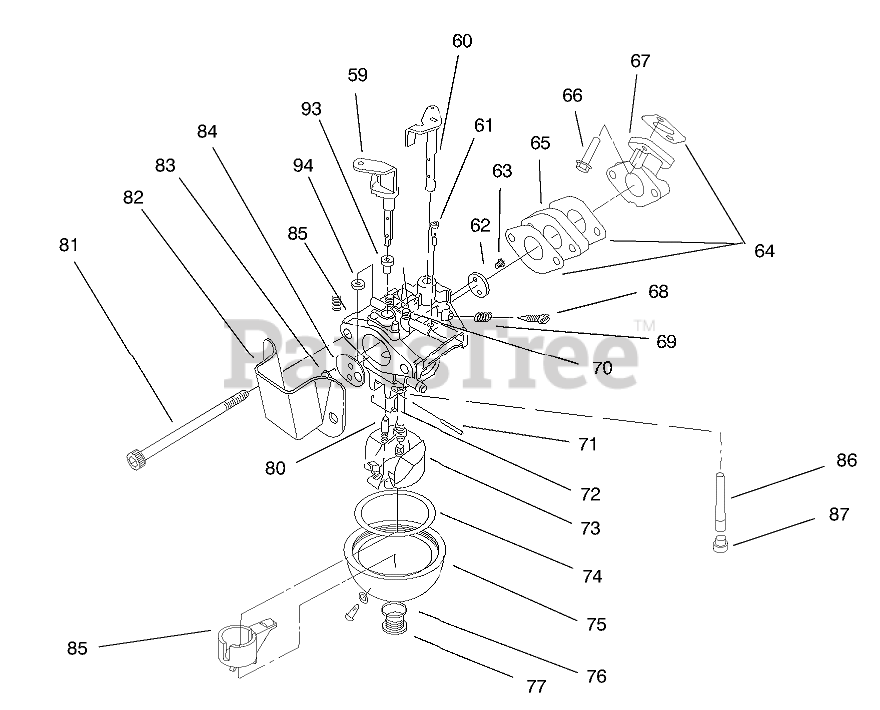

ENGINE ASSEMBLY MODEL NO. 47PT6-4 Parts Diagram

  • Title
59

Toro 81-5510

Shaft-Choke (Incl. Ref. #93 & 94)
(Superseded to 81-4270)

$

$

Not available

60

Toro 81-2920

SHAFT

$

$

Not available

61

$28.99

$

Usually ships in 3-6 days

0

62

Toro 81-2940

VALVE

$

$

Not available

63

Toro 81-2710

Screw
(Superseded to 81-2160)

$4.99

$

Usually ships in 3-6 days

0

64

Toro 81-2570

Gasket-Carburetor
(Superseded to 81-0780)

$6.99

$

In Stock, Qty 12

0

65

Toro 81-0460

CARB INSULATOR

$31.99

$

Usually ships in 3-6 days

0

66

$

$

Not available

67

Toro 81-0470

MANIFOLD

$

$

Not available

68

Toro 50-2360

ADJUSTER

$20.99

$

Usually ships in 3-6 days

0

69

Toro 81-2580

SPRING-PILOT SCREW

$

$

Not available

70

Toro 81-2590

SPRING

$

$

Not available

71

Toro 81-2600

PIN-HINGE

$8.49

$

Usually ships in 3-6 days

0

72

Toro 81-2610

TORSION SPRING

$

$

Not available

73

Toro 81-4920

FLOAT

$54.99

$

Usually ships in 3-6 days

0

74

Toro 81-2630

FLOAT BOWL GASKET

$12.99

$

Usually ships in 3-6 days

0

75

$109.99

$

Usually ships in 3-6 days

0

76

Toro 81-2650

GASKET

$6.99

$

Usually ships in 3-6 days

0

77

Toro 81-2660

SCREW

$29.99

$

In Stock, only 2 left!

0

78

Toro 81-2670

SCREW

$11.99

$

Usually ships in 3-6 days

0

79

Toro 81-2680

GASKET

$6.49

$

In Stock, only 3 left!

0

80

Toro 81-4700

NEEDLE
(Superseded to 81-5820)

$45.99

$

In Stock, only 2 left!

0

81

$

$

Not available

82

Toro 81-2700

SPIT CUP

$21.99

$

Usually ships in 3-6 days

0

83

Toro 81-2710

Screw
(Superseded to 81-2160)

$4.99

$

Usually ships in 3-6 days

0

84

Toro 81-2720

VALVE

$

$

Not available

85

Toro 81-4930

SPACER

$9.49

$

Usually ships in 3-6 days

0

86

Toro 81-2740

MAIN NOZZLE

$

$

Not available

87

Toro 81-1040

MAIN JET

$29.99

$

Usually ships in 3-6 days

0

Toro 81-1940

MAIN JET (76.3)

Note: Not illustrated

$

$

Not available

93

Toro 81-5520

UPPER CHOKE RING

$15.99

$

Usually ships in 3-6 days

0

94

Toro 81-5530

LOWER CHOKE RING

$15.99

$

Usually ships in 3-6 days

0

Toro 81-4690

ASM - CARBURETOR
(Superseded to 95-7935)

Note: Not illustrated

$

$

Not available

Toro 81-2910

Choke Shaft Ass-y (Incl. Ref. #59 & 93-94)

Note: Not illustrated

$

$

Not available

Toro 81-5820

SEAT KIT

Note: Not illustrated

$45.99

$

In Stock, only 2 left!

0

Toro 92-6002

Carburetor Kit (Incl. Ref. #64, 72, 74, 79, 94, & Part No. 81-5820)

Note: Not illustrated

$

$

Not available
