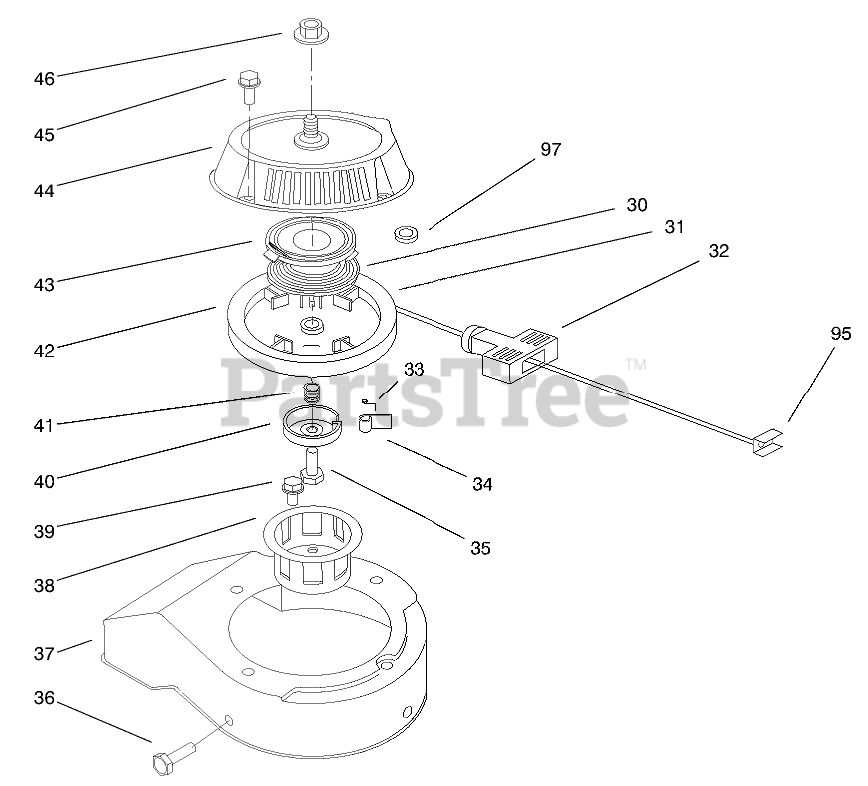

38430 (CCR 3000) - Toro Snow Thrower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY MODEL NO. 47PT6-4 Parts Diagram

Snow Thrower

ENGINE ASSEMBLY MODEL NO. 47PT6-4 Parts Diagram

  • Title

30

Toro 81-1200

Spring-Recoil
(Superseded to 81-2300)

$43.99

$

Usually ships in 3-6 days

0

31

Toro 81-2870

Rope
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

32

Toro 81-1630

HANDLE-RECOIL

$21.99

$

Usually ships in 3-6 days

0

33

Toro 81-1220

SPRING

$

$

Not available

34

Toro 81-1230

DOG

$

$

Not available

35

Toro 81-1260

BOLT

$

$

Not available

36

Toro 53-1340

BOLT

$

$

Not available

37

Toro 81-0310

BLOWER SHROUD

$

$

Not available

38

Toro 81-1290

CUP - STARTER

$25.99

$

Usually ships in 3-6 days

0

39

Toro 82-1300

WASHER-FLAT HD, TREATED

$

$

Not available

40

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

41

Toro 81-1240

SPRING

$

$

Not available

42

Toro 81-1210

REEL

$54.99

$

In Stock, only 2 left!

0

43

Toro 81-1640

Retainer-Recoil Spring
(Superseded to 81-2300)

$43.99

$

Usually ships in 3-6 days

0

44

Toro 81-0290

RECOIL CASE

$

$

Not available

45

Toro 81-0390

MOUNTING SCREW

$2.99

$

Usually ships in 3-6 days

0

46

Toro 81-0300

NUT (F/W & PPP)

$

$

Not available

78

Toro 81-2670

SCREW

$11.99

$

Usually ships in 3-6 days

0

79

Toro 81-2680

GASKET

$6.49

$

In Stock, Qty 6

0

95

Toro 81-5760

Insert Handle

$

$

Not available

97

Toro 55-9620

SPACER-PLATE, PIVOT

$1.49

$

Usually ships in 3-6 days

0

Toro 81-0280

Recoil Assembly (Incl. Ref. #30-35, & 40-44)

Note: Not illustrated

$

$

Not available

Toro 81-2300

Recoil Spring & Retainer Assembly (Incl. Ref. #30 & 43)

Note: Not illustrated

$43.99

$

Usually ships in 3-6 days

0
