38428 (CCR 2450) - Toro Snow Thrower (SN: 200000001 - 200999999) (2000) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

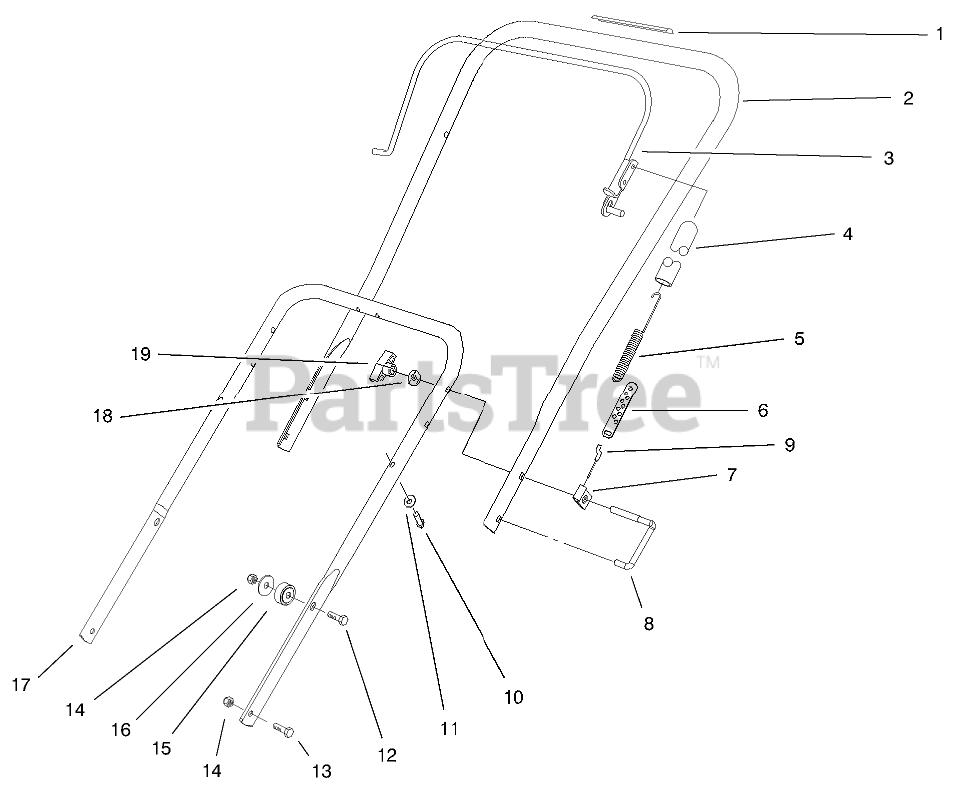

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-2577

DECAL-DRIVE, ROTOR

$4.99

$

In Stock, only 1 left!

0

2

Toro 95-2668

UPPER HANDLE ASM

$

$

Not available

3

Toro 71-5120-03

BAIL ASM

$46.99

$

In Stock, only 3 left!

0

4

Toro 71-5530

COVER-SPRING

$5.49

$

In Stock, Qty 10

0

5

Toro 71-5480

SPRING-CLUTCH

$7.99

$

In Stock, Qty 11

0

6

Toro 55-9380

ADJUSTER-CABLE

$9.49

$

In Stock, only 2 left!

0

7

Toro 2412-112

CLAMP

$1.49

$

In Stock, Qty 5

0

8

Toro 98-2266

LOCK-HANDLE

$5.49

$

In Stock, only 2 left!

0

9

Toro 94-9922

CABLE-CLUTCH
(Superseded to 110-3437)

$14.99

$

In Stock, only 4 left!

0

10

Toro 61-8640

SCREW
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 15

0

11

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

12

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

15

Toro 94-9923

SPACER - LOWER HANDLE

$

$

Not available

16

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

17

Toro 55-9121-03

HANDLE-LOWER

$108.99

$

Usually ships in 3-6 days

0

18

Toro 75-9130

WASHER-CURVED
(Superseded to 107-3844)

$1.49

$

In Stock, Qty 20+

0

19

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 16

0
