38424 (CCR 2500) - Toro Snow Thrower (SN: 089000001 - 089999999) (1998) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

Snow Thrower

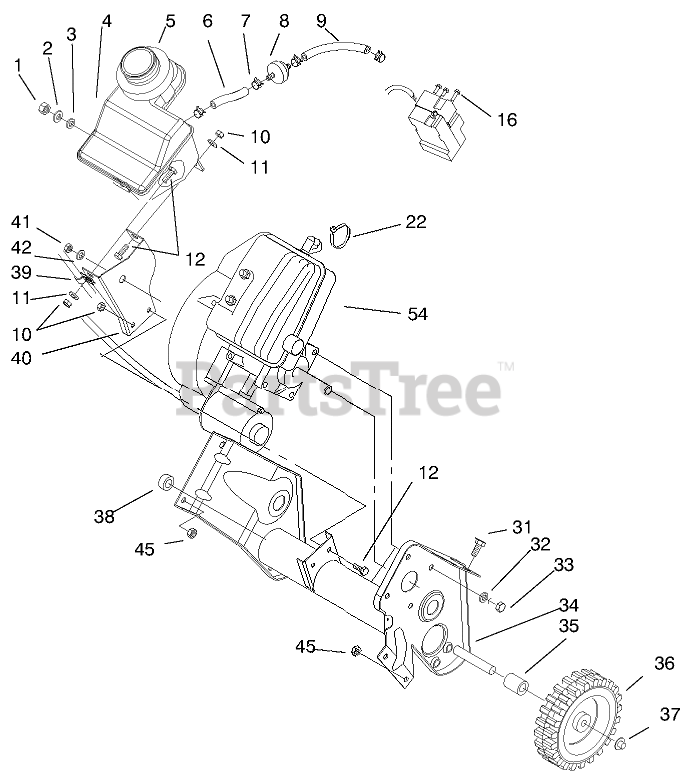

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 32152-8

NUT-LOCK, CONE

$3.49

$

In Stock, only 1 left!

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 237-89

GROMMET-RUBBER

$3.49

$

In Stock, only 4 left!

0

4

Toro 94-9920

Tank-Gas
(Superseded to 105-8952)

$93.99

$

In Stock, only 2 left!

0

5

Toro 55-9310

SEAL-FOAM

$

$

Not available

6

Toro 49-2482

LINE-FUEL

$16.99

$

In Stock, only 4 left!

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 6

0

9

Toro 94-9932

HOSE-FUEL
(Superseded to 109-0304)

$2.49

$

In Stock, Qty 11

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 32144-27

SCREW-PLASTITE

$7.49

$

Usually ships in 3-6 days

0

22

Toro 250-4

TIE-CABLE

$0.99

$

Usually ships in 3-6 days

0

25

Toro 92-6004

Decal-Plate

$

$

Currently unavailable

31

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

33

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 95-1892

Frame
(Superseded to 95-1892-03)

$

$

Not available

35

Toro 66-6501

SPACER-WHEEL

$3.99

$

In Stock, Qty 20+

0

36

Toro 66-6510

WHEEL

$24.99

$

In Stock, Qty 6

0

37

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

38

Toro 66-6500

SPACER-WHEEL

$3.49

$

In Stock, only 2 left!

0

39

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

40

Toro 94-9918-01

Support-Recoil
(Superseded to 94-9918-03)

$20.99

$

Usually ships in 3-6 days

0

41

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

42

Toro 71-5320

WASHER-SUPPORT, ENGINE

$14.99

$

Usually ships in 3-6 days

0

43

Toro 92-6031

SCREW

$

$

Not available

44

Toro 3255-10

WASHER-LOCK / EXT

$

$

Not available

45

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

52

Toro 95-6182

Engineering Specs.

$

$

Currently unavailable

54

ENGINE-BRIGGS AND STRATTON 084233-0198-E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

54

ENGINE-BRIGGS AND STRATTON 084233-0198-E1

Note: Not serviced separately

$

$

Not available

56

Toro 94-9874

Decal-Safety Cert

$

$

Currently unavailable
