38422 (CCR 2500) - Toro Snow Thrower (SN: 099000001 - 099999999) (1999) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

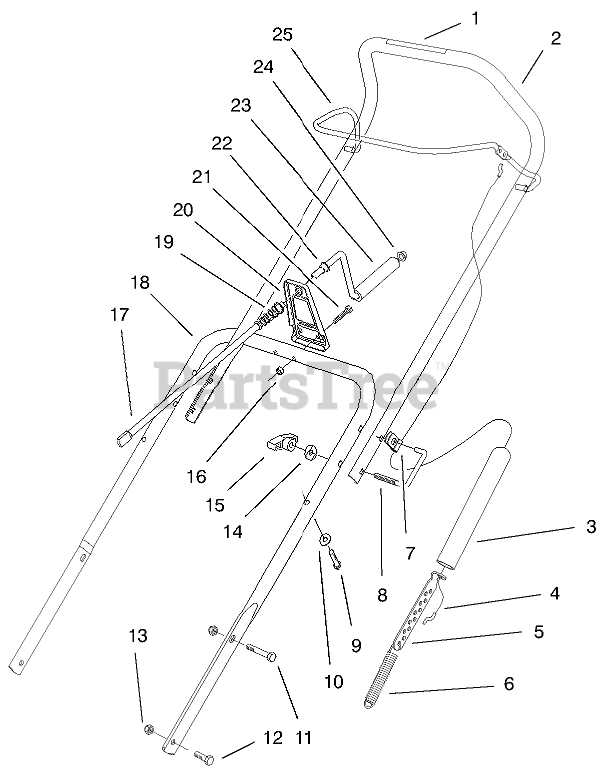

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 66-6870

DECAL - ROTOR DRIVE
(Superseded to 104-2775)

$4.49

$

Usually ships in 3-6 days

0

2

Toro 95-2669

UPPER HANDLE ASM

$147.99

$

Usually ships in 3-6 days

0

3

Toro 55-9390

COVER-SPRING

$9.99

$

In Stock, only 1 left!

0

4

Toro 55-9322

CABLE-CLUTCH

$11.99

$

In Stock, only 1 left!

0

5

Toro 55-9380

ADJUSTER-CABLE

$9.49

$

In Stock, only 3 left!

0

6

Toro 55-9270

SPRING-EXTENSION

$6.99

$

In Stock, only 3 left!

0

7

Toro 2412-112

CLAMP

$1.49

$

In Stock, Qty 15

0

8

Toro 98-2266

LOCK-HANDLE

$5.49

$

In Stock, Qty 20+

0

9

Toro 61-8640

SCREW
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 15

0

10

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

11

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 75-9130

WASHER-CURVED
(Superseded to 107-3844)

$1.49

$

In Stock, Qty 20+

0

15

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 55-9140

ROD-CRANK, CHUTE

$

$

Not available

18

Toro 55-9121-03

HANDLE-LOWER

$108.99

$

Usually ships in 3-6 days

0

19

Toro 55-9440

SPRING-COMPRESSION

$

$

Not available

20

Toro 55-9090

Support-Crank
(Superseded to 55-9090-03)

$

$

Not available

21

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

22

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 20+

0

23

Toro 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

24

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

25

Toro 98-2264

Bar-Control
(Superseded to 100-5473-03)

$51.99

$

In Stock, only 4 left!

0
