38421 (CCR 2500) - Toro Snow Thrower (SN: 079000001 - 079999999) (1997) CARBURETOR ASSEMBLY NO. 632751 Parts Diagram

Snow Thrower

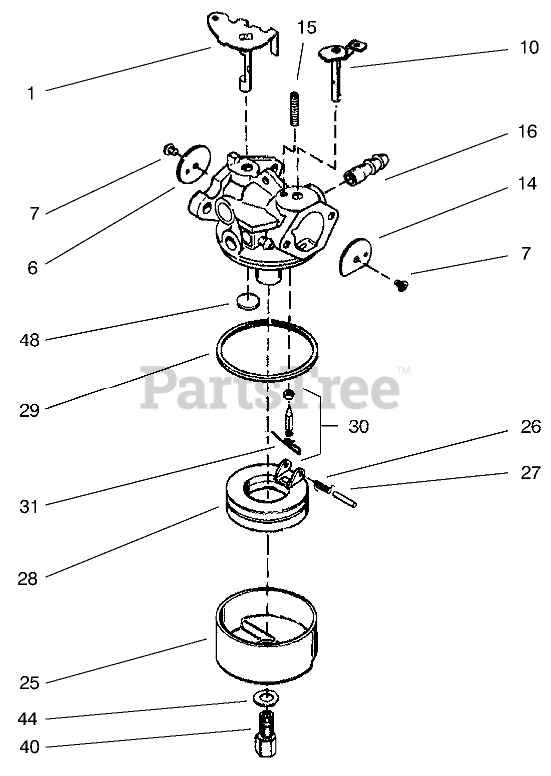

CARBURETOR ASSEMBLY NO. 632751 Parts Diagram

  • Title

Tecumseh 632751

Carburetor (Incl. 184 pg. 2)
(Superseded to 640308A)

$109.99

$

Usually ships in 3-12 days

0

1

Tecumseh 632538

Throttle Shaft & Lever Assembly

$7.49

$

Usually ships in 3-12 days

0

6

Tecumseh 631621

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 17

0

10

Tecumseh 632752

Choke Shaft & Lever Assembly

$

$

Not available

14

Tecumseh 631815

Shutter-choke

$1.99

$

In Stock, only 3 left!

0

15

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 632164

Fitting-Fuel

$3.99

$

In Stock, only 1 left!

0

25

Tecumseh 631867

Bowl-Float (no drain)

$3.49

$

In Stock, Qty 14

0

26

Tecumseh 632386

Spring-Float, Dampening

$1.49

$

Usually ships in 3-12 days

0

27

Tecumseh 631024

Shaft-Float

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, only 3 left!

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

$2.49

$

In Stock, only 2 left!

0

30

Tecumseh 631021

Inlet Needle, Seat & Clip (Incl. 31)
(Superseded to 631021B)

$6.99

$

In Stock, Qty 13

0

31

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

40

Tecumseh 632682

High Speed Bowl Nut

$7.49

$

Usually ships in 3-12 days

0

44

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

In Stock, only 1 left!

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, only 3 left!

0
