38419 (CCR 2450) - Toro Snow Thrower (SN: 210000001 - 210999999) (2001) CHUTE ASSEMBLY Parts Diagram

Snow Thrower

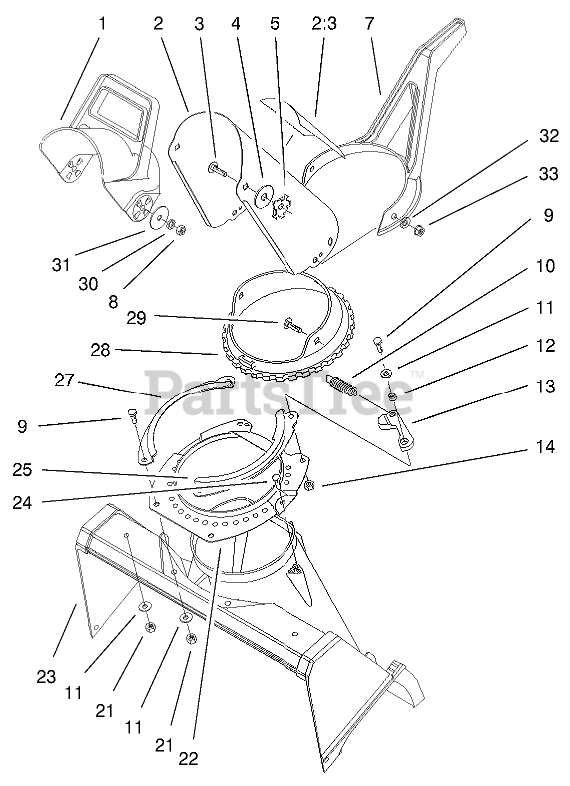

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 56-2680

CHUTE-DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

2

Toro 104-4115

Chute-Dischargew/Decal (only on:38413, 38419)

$68.99

$

In Stock, only 1 left!

0

2

Toro 94-2791

Chute ASM w/Decal (only on: 38428,38429)

$

$

Not available

2

Toro 94-2790

Chute ASM w/Decal(only on: 38413,38419)
(Superseded to 104-4115)

$68.99

$

In Stock, only 1 left!

0

2:3

Toro 94-2901

Decal-Danger Discharge (only on:38428, 38429)

$

$

Not available

2:3

Toro 94-2900

Decal-Danger Discharge (only on:38413, 38419)
(Superseded to 104-4135)

$5.99

$

In Stock, only 1 left!

0

2:1

Toro 104-4135

Decal-Danger (only on: 38413, 38419)

$5.99

$

In Stock, only 1 left!

0

3

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

4

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

5

Toro 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

7

Toro 94-9914

HANDLE-CONTROL, CHUTE

$11.99

$

In Stock, Qty 11

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 80-4600

SPRING-EXTENSION

$7.99

$

In Stock, Qty 9

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, Qty 20+

0

13

Toro 80-4610

DETENT

$12.99

$

In Stock, Qty 10

0

14

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 55-8921-03

RING-SUPPORT, CHUTE

$28.99

$

In Stock, Qty 9

0

23

Toro 55-8700

HOUSING

$

$

Not available

24

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

25

Toro 71-4980-03

RETAINER-CHUTE, LH

$

$

Not available

27

Toro 71-4990-03

RETAINER-CHUTE, RH

$

$

Not available

28

Toro 104-2763

RING-CHUTE

$47.99

$

In Stock, Qty 7

0

29

Toro 100-5487

SCREW-PTH

$1.99

$

In Stock, Qty 20+

0

30

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

31

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

32

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 16

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0
