38417 (CCR 2400) - Toro Snow Thrower (SN: 089000001 - 089999999) (1998) SIDE PLATE AND SCRAPER ASSEMBLY Parts Diagram

Snow Thrower

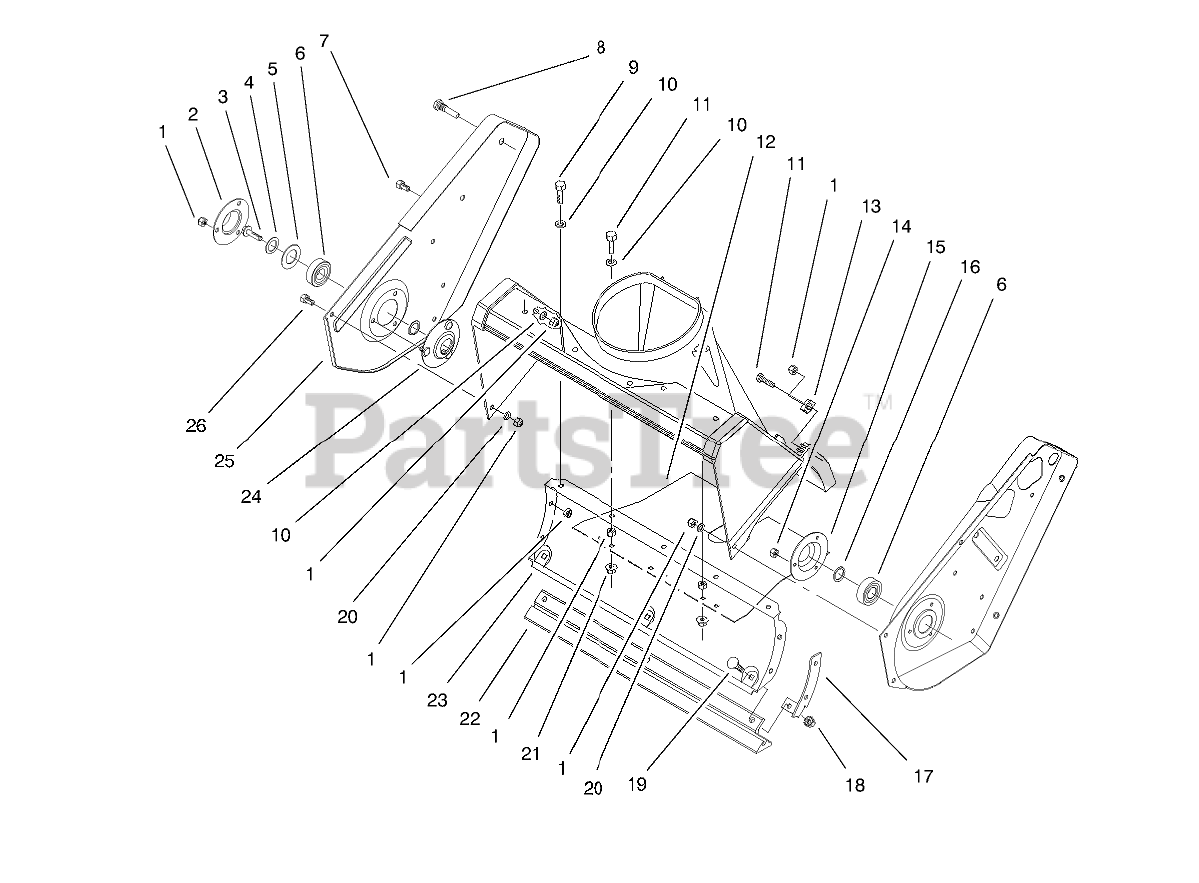

SIDE PLATE AND SCRAPER ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 52-7290

Trough
(Superseded to 52-7290-03)

$23.99

$

Usually ships in 3-6 days

0

3

Toro 3234-25

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 52-7270

WASHER-RUBBER

$4.49

$

In Stock, only 2 left!

0

6

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

7

Toro 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

8

Toro 38-8211

PIN-ROTOR

$6.99

$

Usually ships in 3-6 days

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 55-9512

COVER-BOTTOM

$21.99

$

In Stock, only 1 left!

0

13

Toro 55-9430

BRACKET-HOUSING

$7.99

$

Usually ships in 3-6 days

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 38-8620

FLANGE-BEARING

$

$

Not available

16

Toro 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

17

Toro 56-2610

BRACKET-HOUSING, LOWER

$21.99

$

In Stock, only 4 left!

0

18

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

19

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-67

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

21

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

22

Toro 55-8760

SCRAPER

$33.99

$

In Stock, Qty 20+

0

23

Toro 55-9220-01

Wa-Housing
(Superseded to 119-1551)

$86.99

$

In Stock, Qty 6

0

24

Toro 52-9110

FLANGE-BEARING

$24.99

$

In Stock, only 4 left!

0

25

Toro 55-8840-01

Sideplate-RH
(Superseded to 55-8840-03)

$

$

Not available

26

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0
