38410 (CCR 2400) - Toro Snow Thrower (SN: 079000001 - 079999999) (1997) RECOIL STARTER ASSEMBLY NO. 590743 (OPTIONAL) Parts Diagram

Snow Thrower

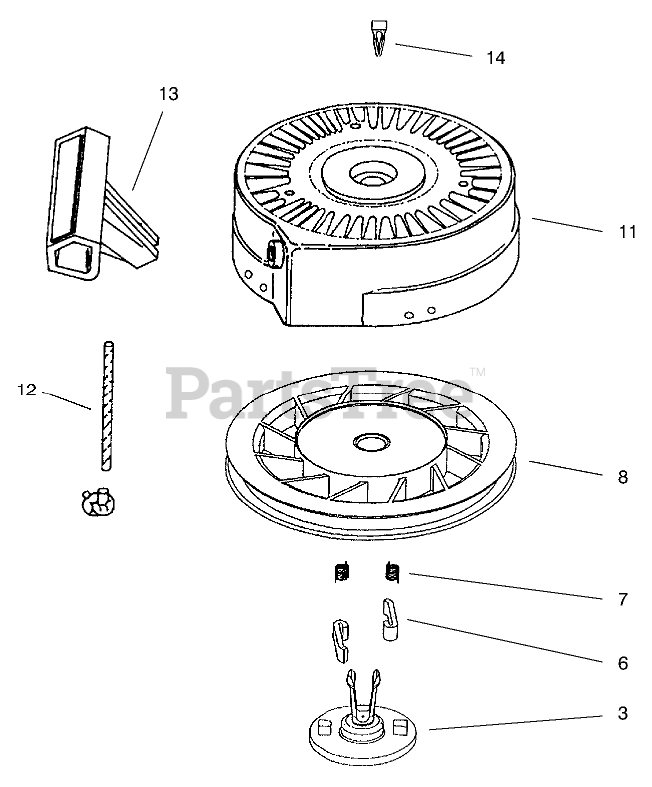

RECOIL STARTER ASSEMBLY NO. 590743 (OPTIONAL) Parts Diagram

  • Title

Tecumseh 590743

Rewind Starter ASM
(Superseded to 590784)

$50.99

$

Usually ships in 3-12 days

0

3

Tecumseh 590740

Retainer

$9.49

$

In Stock, Qty 12

0

6

Tecumseh 590616

Dog-Starter

$7.49

$

Usually ships in 3-12 days

0

7

Tecumseh 590617

Spring-Dog

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590645A

Pulley and Rewind Spring ASM

$

$

Not available

11

Tecumseh 590643

Starter Housing ASM
(Superseded to 590643A)

$38.99

$

In Stock, only 1 left!

0

12

Tecumseh 590535

Rope-Starter (98 cut to length)

$9.49

$

In Stock, Qty 12

0

13

Tecumseh 590710

Starter Handle

$8.49

$

Usually ships in 3-12 days

0

14

Tecumseh 590741

Locking Tab
(Superseded to 590760)

$4.99

$

In Stock, only 2 left!

0
