38410 (CCR 2400) - Toro Snow Thrower (SN: 079000001 - 079999999) (1997) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

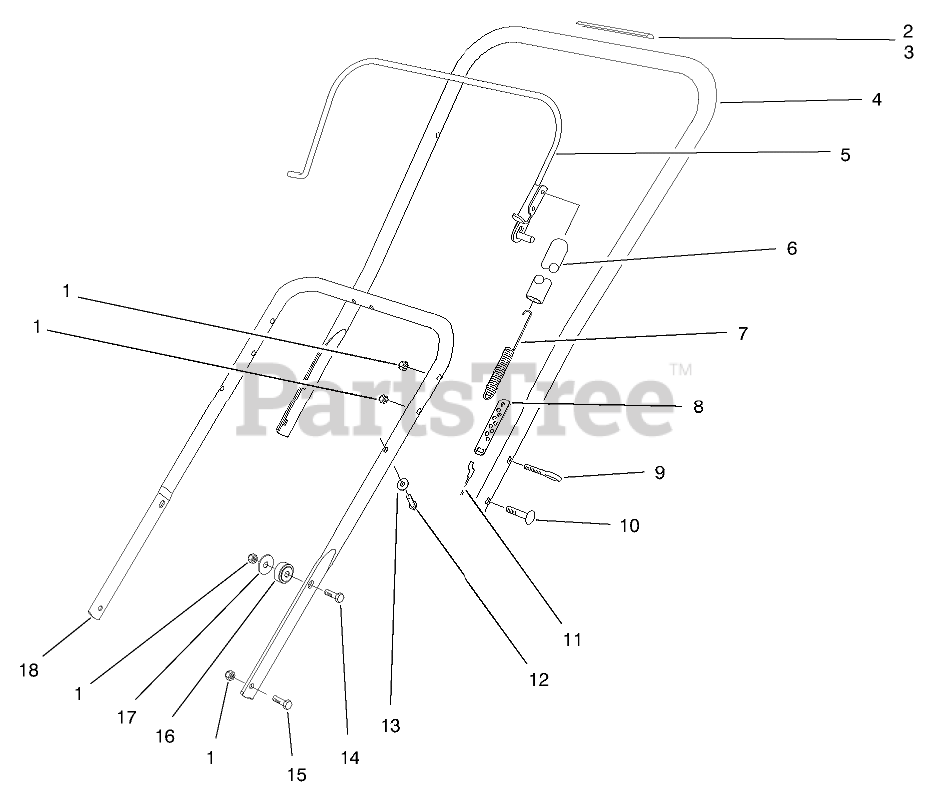

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

2

Toro 66-6870

Decal-Rotor Drive (Only On: 38410)
(Superseded to 104-2775)

$4.49

$

Usually ships in 3-6 days

0

3

Toro 94-2577

Decal-Rotor Drive (Only On: 38411)

$4.99

$

In Stock, only 1 left!

0

4

Toro 95-2667

ASM-Handle (Only On: 38410)

$

$

Not available

4

Toro 95-2668

ASM-Handle (Only On: 38411)

$

$

Not available

5

Toro 71-5120-01

Bail
(Superseded to 71-5120-03)

$46.99

$

In Stock, only 3 left!

0

6

Toro 71-5530

COVER-SPRING

$5.49

$

In Stock, Qty 10

0

7

Toro 71-5480

SPRING-CLUTCH

$7.99

$

In Stock, Qty 11

0

8

Toro 55-9380

ADJUSTER-CABLE

$9.49

$

In Stock, only 2 left!

0

9

Toro 55-9420

BOLT-EYE

$11.99

$

In Stock, only 2 left!

0

10

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

11

Toro 94-9922

CABLE-CLUTCH
(Superseded to 110-3437)

$14.99

$

In Stock, only 4 left!

0

12

Toro 61-8640

SCREW
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 15

0

13

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

14

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 94-9923

SPACER - LOWER HANDLE

$

$

Not available

17

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

18

Toro 55-9121-01

Handle-Lower
(Superseded to 55-9121-03)

$108.99

$

Usually ships in 3-6 days

0
