38410 (CCR 2400) - Toro Snow Thrower (SN: 079000001 - 079999999) (1997) ENGINE TECUMSEH MODEL NO. HSK850 TYPE 8313B Parts Diagram

Snow Thrower

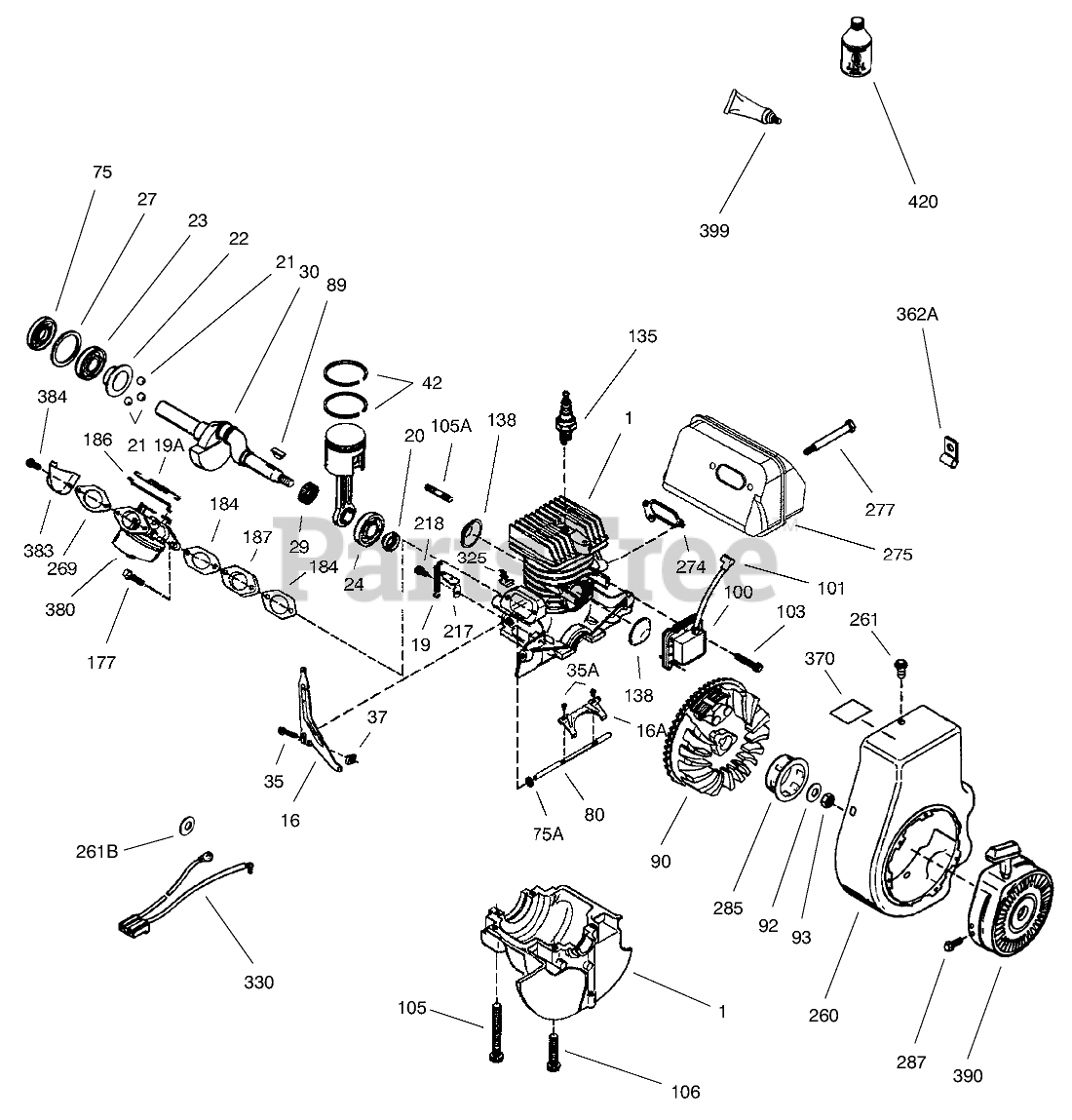

ENGINE TECUMSEH MODEL NO. HSK850 TYPE 8313B Parts Diagram

  • Title

RPM High 3550-3850

$

$

Not available

RPM Low 00

$

$

Not available

1

Tecumseh 250296A

Cylinder Ass-y (Incl. 75A, 105, 106, & 138)
(Superseded to 250305)

$

$

Not available

16

Tecumseh 490317

Governor Lever

$

$

Not available

16A

Tecumseh 490304

Governor Lever

$5.49

$

Usually ships in 3-12 days

0

19

Tecumseh 490325

Extension Spring
(Superseded to 570271)

$

$

Not available

19A

Tecumseh 490318

Throttle Link Spring

$5.49

$

In Stock, Qty 9

0

20

Tecumseh 510340

Oil Seal

$5.49

$

In Stock, only 1 left!

0

21

Tecumseh 570673

Ball

$1.99

$

In Stock, only 1 left!

0

22

Tecumseh 510338

Ring-Slide

$3.99

$

Usually ships in 3-12 days

0

23

Tecumseh 530158

Ball Bearing

$26.99

$

In Stock, only 1 left!

0

24

Tecumseh 530161

Ball Bearing

$22.99

$

In Stock, only 1 left!

0

27

Tecumseh 530159

Bearing Retainer

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 530164

Bearing-Strip

$13.99

$

Usually ships in 3-12 days

0

30

Tecumseh 290681

Crankshaft

$

$

Not available

35

Tecumseh 29826

Screw

$1.99

$

In Stock, only 3 left!

0

35A

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

37

Tecumseh 29216

Nut-Lock

$1.99

$

In Stock, only 2 left!

0

39

Tecumseh 310277B

Piston & Rod Ass-y (Incl. 29 & 42)
(Superseded to 310291A)

$106.99

$

Usually ships in 3-12 days

0

42

Tecumseh 310278

Ring Set

$

$

Not available

75

Tecumseh 510339

Oil Seal

$7.49

$

Usually ships in 3-12 days

0

75A

Tecumseh 510337

Oil Seal

$3.99

$

Usually ships in 3-12 days

0

80

Tecumseh 490305

Governor Shaft

$11.99

$

Usually ships in 3-12 days

0

89

Tecumseh 611191

"J" CLIP F

$1.99

$

Usually ships in 3-12 days

0

90

Tecumseh 611192

BRACKET-BRAKE F

$

$

Not available

92

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Nut-Flywheel

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

In Stock, only 3 left!

0

101

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

$1.99

$

In Stock, only 4 left!

0

105

Tecumseh 650892

Screw

$1.99

$

In Stock, only 1 left!

0

105A

Tecumseh 650796

Stud

$1.99

$

In Stock, only 4 left!

0

106

Tecumseh 650891

Screw

$

$

Not available

135

Tecumseh 611049

Spark Plug-Resistor (R C J 8Y)

$4.99

$

In Stock, Qty 20+

0

138

Tecumseh 570683

Cover-Port

$3.99

$

Usually ships in 3-12 days

0

177

Tecumseh 650959

Screw (5/32 Allen, 1/4-20 x 1)

$1.99

$

In Stock, Qty 8

0

184

Tecumseh 510326A

Gasket-Carburetor

$1.49

$

In Stock, only 3 left!

0

186

Tecumseh 490319

Governor Link

$1.99

$

In Stock, only 4 left!

0

187

Tecumseh 570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

217

Tecumseh 570667A

Control Lever

$1.99

$

Usually ships in 3-12 days

0

218

Tecumseh 650847

Screw

$1.99

$

In Stock, only 2 left!

0

239

Tecumseh 35815

Gasket-Cleaner, Air

$1.49

$

In Stock, Qty 20+

0

260

Tecumseh 350462

Blower Housing

$

$

Not available

261

Tecumseh 650894

Screw

$1.99

$

Usually ships in 3-12 days

0

261B

Tecumseh 650890

Washer

$1.99

$

In Stock, only 2 left!

0

274

Tecumseh 510343A

Exhaust Gasket

$3.99

$

In Stock, only 1 left!

0

275

Tecumseh 390342

Muffler
(Superseded to 390343)

$

$

Not available

277

Tecumseh 651021

Screw

$5.49

$

In Stock, only 1 left!

0

285

Tecumseh 34449A

Starter Cup

$10.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw (8-32 x 21/64)

$1.49

$

In Stock, only 3 left!

0

325

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, only 4 left!

0

330

Tecumseh 611217

SCREW

$

$

Currently unavailable

370

Tecumseh 36261

Decal-Lubrication

$

$

Not available

380

Tecumseh 632751

Carburetor(Incl. 184)
(Superseded to 640308A)

$109.99

$

Usually ships in 3-12 days

0

383

Tecumseh 570695

Spit Cup

$3.99

$

In Stock, only 1 left!

0

384

Tecumseh 650229

Screw

$1.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590712

Rewind Starter Assembly (Optional)
(Superseded to 590784)

$50.99

$

Usually ships in 3-12 days

0

399

Tecumseh 510334

Gasket Eliminator

$12.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730227A

2-Cycle Oil (8oz)
(Superseded to 730227D)

$3.99

$

In Stock, Qty 5

0
