38405 (CCR 1000) - Toro Snow Thrower (SN: 210000001 - 210999999) (2001) DEFLECTOR & CONTROL PANEL ASSEMBLY Parts Diagram

Snow Thrower

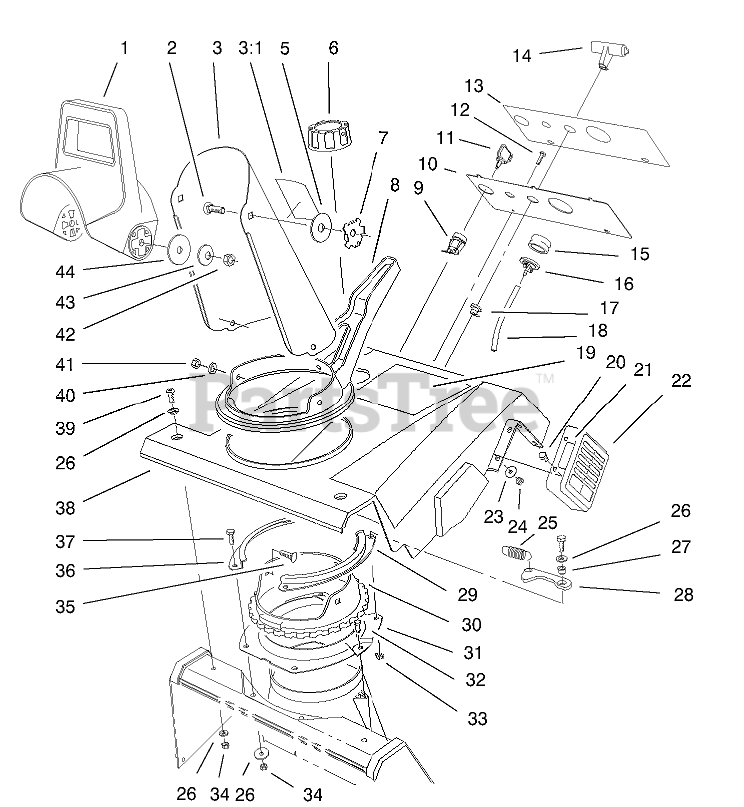

DEFLECTOR & CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 56-2680

CHUTE-DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

2

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

3

Toro 104-4115

CHUTE ASM

$68.99

$

In Stock, only 1 left!

0

3:1

Toro 104-4135

DECAL-DANGER

$5.99

$

In Stock, only 1 left!

0

5

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

6

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$16.99

$

In Stock, only 1 left!

0

7

Toro 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

8

Toro 71-4940

CHUTE - HANDLE

$

$

Not available

9

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

10

Toro 71-5241-03

CONTROL PANEL

$

$

Not available

11

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

12

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.99

$

In Stock, Qty 10

0

13

Toro 104-2786

DECAL-CONTROL PANEL

$

$

Not available

14

Toro 92-4853

HANDLE-STARTER

$9.49

$

In Stock, only 3 left!

0

15

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

16

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

17

Toro 23-7470

GUIDE-ROPE, STARTER

$23.99

$

Usually ships in 3-6 days

0

18

Toro 44-3173

HOSE-PRIMER

$5.49

$

In Stock, only 1 left!

0

19

Toro 100-3558

DECAL-CCR1000E

$12.99

$

In Stock, only 1 left!

0

20

Toro 3290-359

SCREW-HWH

$

$

Not available

21

Toro 104-2767

DECAL-WARNING

$4.49

$

Usually ships in 3-6 days

0

22

Toro 71-5340-03

GUARD-MUFFLER

$21.99

$

Usually ships in 3-6 days

0

23

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

24

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 80-4600

SPRING-EXTENSION

$7.99

$

In Stock, Qty 9

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, Qty 20+

0

28

Toro 80-4610

DETENT

$12.99

$

In Stock, Qty 10

0

29

Toro 71-4980-03

RETAINER-CHUTE, LH

$

$

Not available

30

Toro 104-2763

RING-CHUTE

$47.99

$

In Stock, Qty 7

0

31

Toro 55-8921-03

RING-SUPPORT, CHUTE

$28.99

$

In Stock, Qty 9

0

32

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

33

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

35

Toro 100-5488

SCREW-PTH

$

$

Not available

36

Toro 71-4990-03

RETAINER-CHUTE, RH

$

$

Not available

37

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 80-4811

SHROUD-UPPER

$298.99

$

Usually ships in 3-6 days

0

39

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

40

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 16

0

41

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

42

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

43

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

44

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0
