38405 (CCR 1000) - Toro Snow Thrower (SN: 200000001 - 200999999) (2000) HOUSING & SIDE PLATE ASSEMBLY Parts Diagram

Snow Thrower

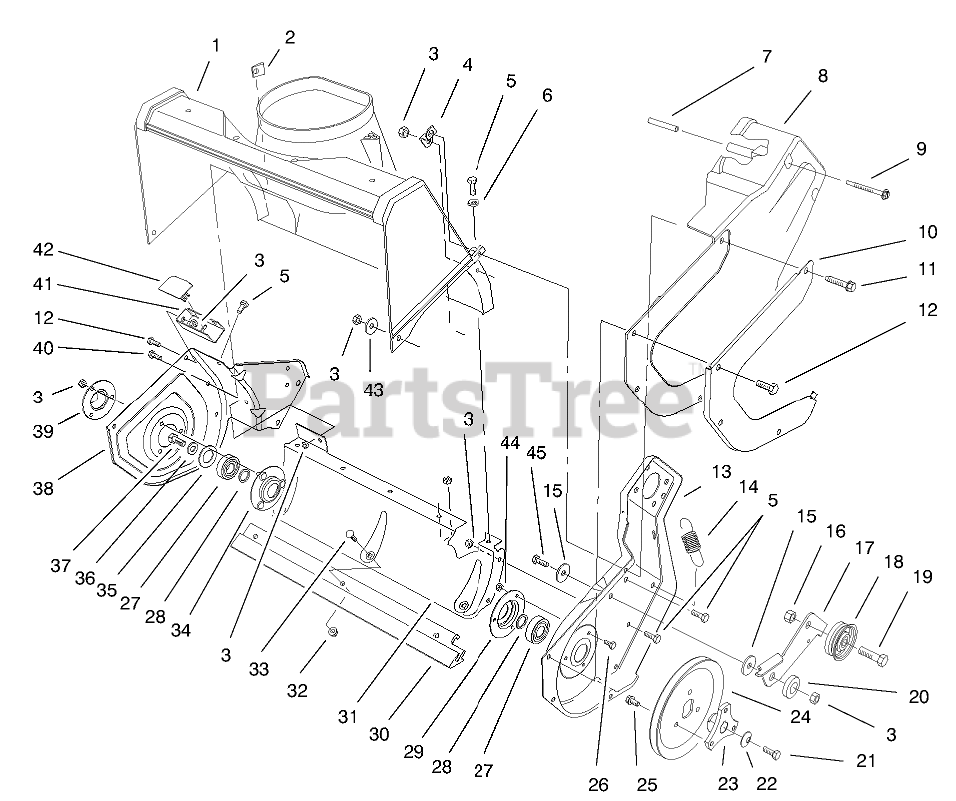

HOUSING & SIDE PLATE ASSEMBLY Parts Diagram

  • Title
1

Toro 55-8700

HOUSING

$

$

Not available

2

Toro 32115-14

SPEED NUT

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 55-9430

BRACKET-HOUSING

$7.99

$

Usually ships in 3-6 days

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 57-3830

TUBULAR SPACER

$5.99

$

Usually ships in 3-6 days

0

8

Toro 71-5030

DRIVE COVER

$

$

Not available

9

Toro 71-5350

SCREW-HWHTF

$

$

Not available

10

Toro 71-5150-03

EDGE GUARD

$

$

Not available

11

Toro 36-3860

SCREW-HWH, TAP

$2.49

$

In Stock, Qty 15

0

12

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

13

Toro 71-4911-03

LEFT SIDEPLATE

$

$

Not available

14

Toro 71-5470

SPRING-BRAKE

$3.99

$

In Stock, Qty 20+

0

15

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, Qty 11

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 71-5160

BRAKE ARM IDLER

$

$

Not available

18

Toro 71-5260

PULLEY-IDLER

$32.99

$

In Stock, only 4 left!

0

19

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

20

Toro 80-4620

SPACER

$

$

Not available

21

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

22

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

23

Toro 71-5070

HUB-MOUNTING, PULLEY

$

$

Not available

24

Toro 71-5410

ROTOR PULLEY

$

$

Not available

25

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

26

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

27

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

28

Toro 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

29

Toro 38-8620

FLANGE-BEARING

$

$

Not available

30

Toro 71-5390

SCRAPER

$28.99

$

In Stock, Qty 9

0

31

Toro 71-4930-03

LOWER HOUSING

$

$

Not available

32

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

33

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

34

Toro 52-9110

FLANGE-BEARING

$24.99

$

In Stock, only 4 left!

0

35

Toro 52-7270

WASHER-RUBBER

$4.49

$

In Stock, only 2 left!

0

36

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 3234-25

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0

38

Toro 71-4920-03

RH SIDEPLATE

$99.99

$

Usually ships in 3-6 days

0

39

Toro 52-7290-03

RETAINER-BEARING

$23.99

$

Usually ships in 3-6 days

0

40

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

41

Toro 71-5310-03

Bracket-Support

$

$

Currently unavailable

42

Toro 71-5270

BRACKET COVER

$

$

Not available

43

Toro 3256-67

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

44

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

45

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
