38400 (CCR 1000) - Toro Snow Thrower (SN: 200000001 - 200999999) (2000) ENGINE & GAS TANK ASSEMBLY Parts Diagram

Snow Thrower

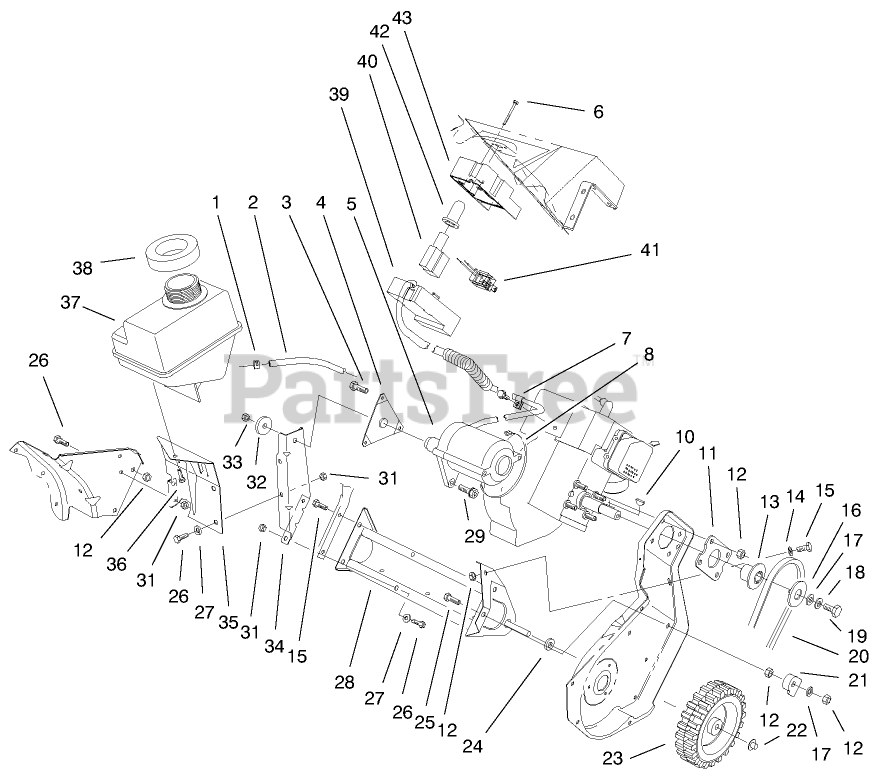

ENGINE & GAS TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

2

Toro 49-2482

LINE-FUEL

$16.99

$

In Stock, only 4 left!

0

3

Toro 3255-10

WASHER-LOCK / EXT

$

$

Not available

3

Toro 92-6031

SCREW

$

$

Not available

4

Toro 92-6012

BRACKET AND STUD ASM

$12.99

$

Usually ships in 3-6 days

0

5

Toro 77-0402

Motor & Switch Hsg ASM (only on: 38405)
(Superseded to 105-2953)

$

$

Not available

6

Toro 32144-27

Screw-Plastite (only on: 38405)

$7.49

$

Usually ships in 3-6 days

0

7

Toro 2412-91

Clamp R (only on: 38405)

$3.99

$

In Stock, only 2 left!

0

8

Toro 250-7

TIE-CABLE

$7.49

$

In Stock, only 1 left!

0

10

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

11

Toro 71-5290-03

PLATE-ENGINE

$6.99

$

In Stock, only 1 left!

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 71-5050

Hub-HALF SHEAVE

$54.99

$

Usually ships in 3-6 days

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Toro 71-5060

CAP-HALF SHEAVE

$14.99

$

Usually ships in 3-6 days

0

17

Toro 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 5

0

18

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

19

Toro 3235-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

20

Toro 71-5381

V-BELT

$24.99

$

In Stock, Qty 14

0

21

Toro 84-5610

GUIDE-CABLE

$3.49

$

Usually ships in 3-6 days

0

22

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

23

Toro 23-3250

WHEEL

$20.99

$

In Stock, Qty 7

0

24

Toro 71-5440

SPACER-PLASTIC

$5.99

$

Usually ships in 3-6 days

0

25

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 71-5200-03

FRAME

$157.99

$

Usually ships in 3-6 days

0

29

Toro 80-0700

Screw-Mtg Torx (only on: 38405)

$2.99

$

In Stock, only 2 left!

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

32

Toro 71-5320

WASHER-SUPPORT, ENGINE

$14.99

$

Usually ships in 3-6 days

0

33

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

34

Toro 71-5210-03

SUPPORT-ENGINE

$7.99

$

In Stock, only 1 left!

0

35

Toro 71-5220-03

BRACKET-TANK

$

$

Not available

36

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.99

$

In Stock, Qty 10

0

37

Toro 71-5020

Tank-Gas
(Superseded to 105-2997)

$

$

Not available

38

Toro 55-9310

SEAL-FOAM

$

$

Not available

39

Toro 100-3441

Base Housing Switch (only on: 38405)

$12.99

$

Usually ships in 3-6 days

0

40

Toro 61-4820

Switch,Starter (only on: 38405)

$18.99

$

In Stock, only 3 left!

0

41

Toro 94-9933

Power Plug (only on: 38405)

$7.99

$

In Stock, only 1 left!

0

42

Toro 61-4810

Boot,Switch (only on: 38405)

$

$

Not available

43

Toro 100-3442

Cap Housing Switch (only on: 38405)

$12.99

$

Usually ships in 3-6 days

0

Toro 28-9170

Cord (only on: 38405)
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
