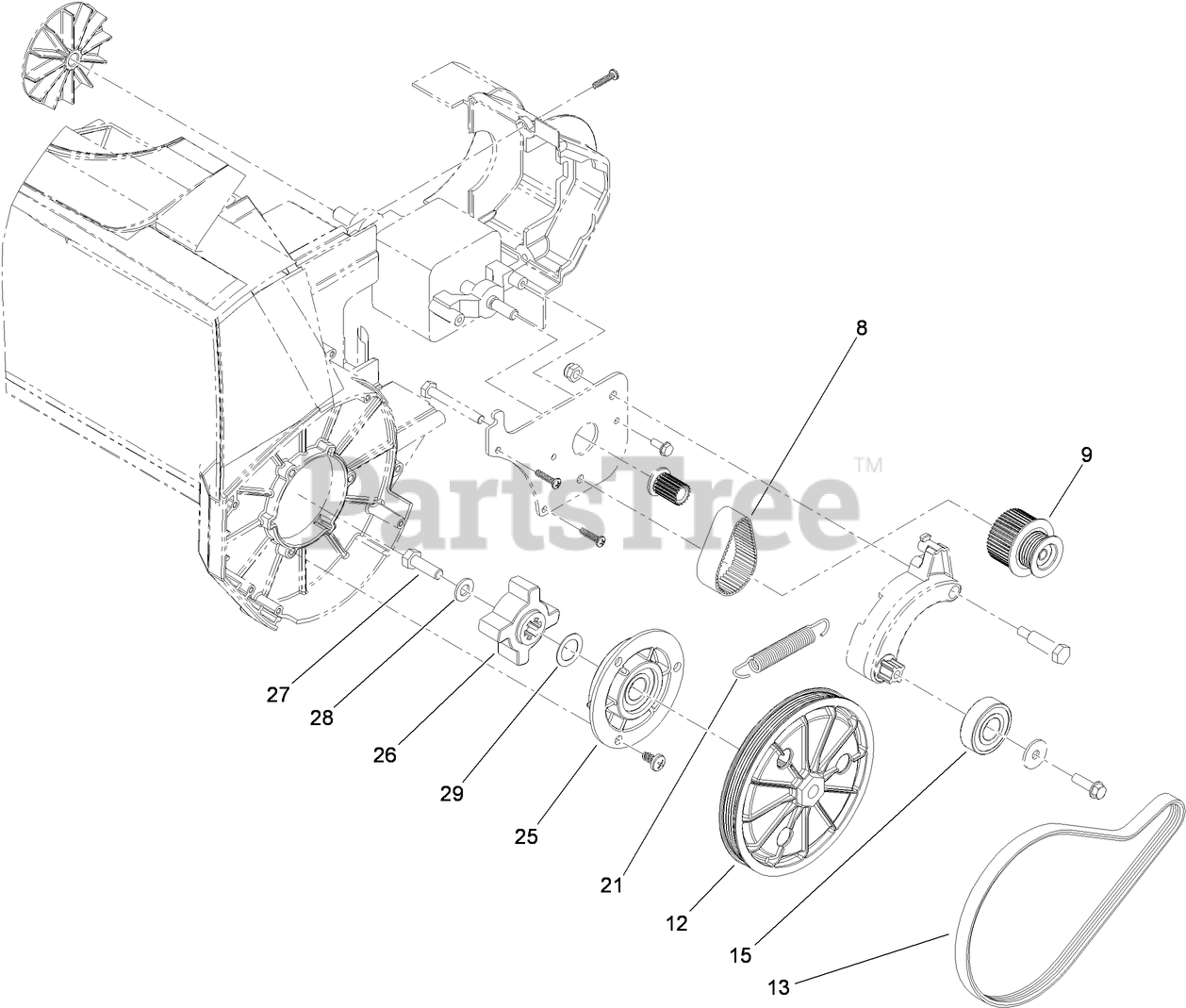

38381 (1800) - Lawn-Boy 18" Power Curve Snow Thrower (SN: 314000001 - 314999999) (2014) Drive Assembly Parts Diagram

18" Power Curve Snow Thrower

Drive Assembly Parts Diagram

  • Title
8

Lawn-Boy 73-0160

BELT-PULLEY, IDLER/DRIVER

$33.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 117-8770

IDLER PULLEY ASM

$45.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 117-8763

PULLEY ASM

$33.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 115-1192

BELT-DRIVE

$37.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 117-8783

BEARING-BALL

$27.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 117-2804

SPRING-IDLER

$4.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 117-2887

PILLOW BLOCK ASM

$19.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 117-8762

COUPLER-PULLEY

$5.49

$

Usually ships in 3-6 days

0

27

$2.99

$

Usually ships in 3-6 days

0

28

$5.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 7-4650

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0
