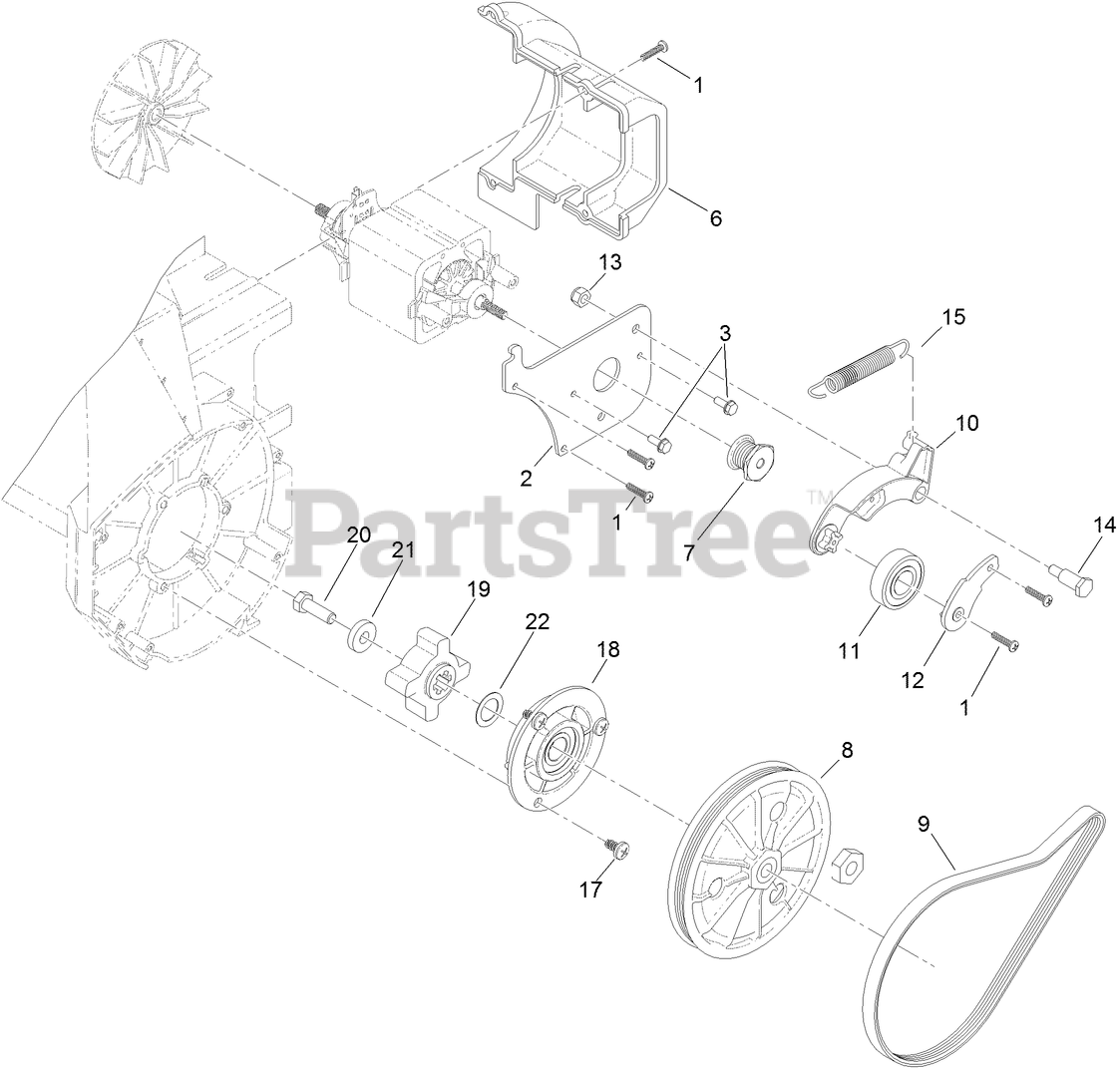

38371 (1500) - Lawn-Boy 15" Power Curve Snow Thrower (SN: 315000001 - 315999999) (2015) Drive Assembly Parts Diagram

15" Power Curve Snow Thrower

Drive Assembly Parts Diagram

  • Title

1

Lawn-Boy 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 117-2843

PLATE-MOTOR

$

$

Currently unavailable

3

Lawn-Boy 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 119-9809

COVER-MOTOR

$

$

Currently unavailable

7

Lawn-Boy 119-9810

PULLEY-DRIVE

$9.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 117-8763

PULLEY ASM

$33.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 119-9811

BELT-DRIVE

$23.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 119-9813

ARM-IDLER

$3.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

12

Lawn-Boy 119-9814

RETAINER-IDLER

$2.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

14

Lawn-Boy 119-9812

BOLT-SHOULDER

$1.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 117-2804

SPRING-IDLER

$4.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 105-6968

SCREW-SEAT, SWITCH

$3.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 117-2887

PILLOW BLOCK ASM

$19.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 117-8762

COUPLER-PULLEY

$5.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 117-2888

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 27-9560

SPACER

$5.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 7-4650

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0
