38350 - Toro Power Shovel Snow Thrower (SN: 003000001 - 003999999) (1983) ROTOR HOUSING ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

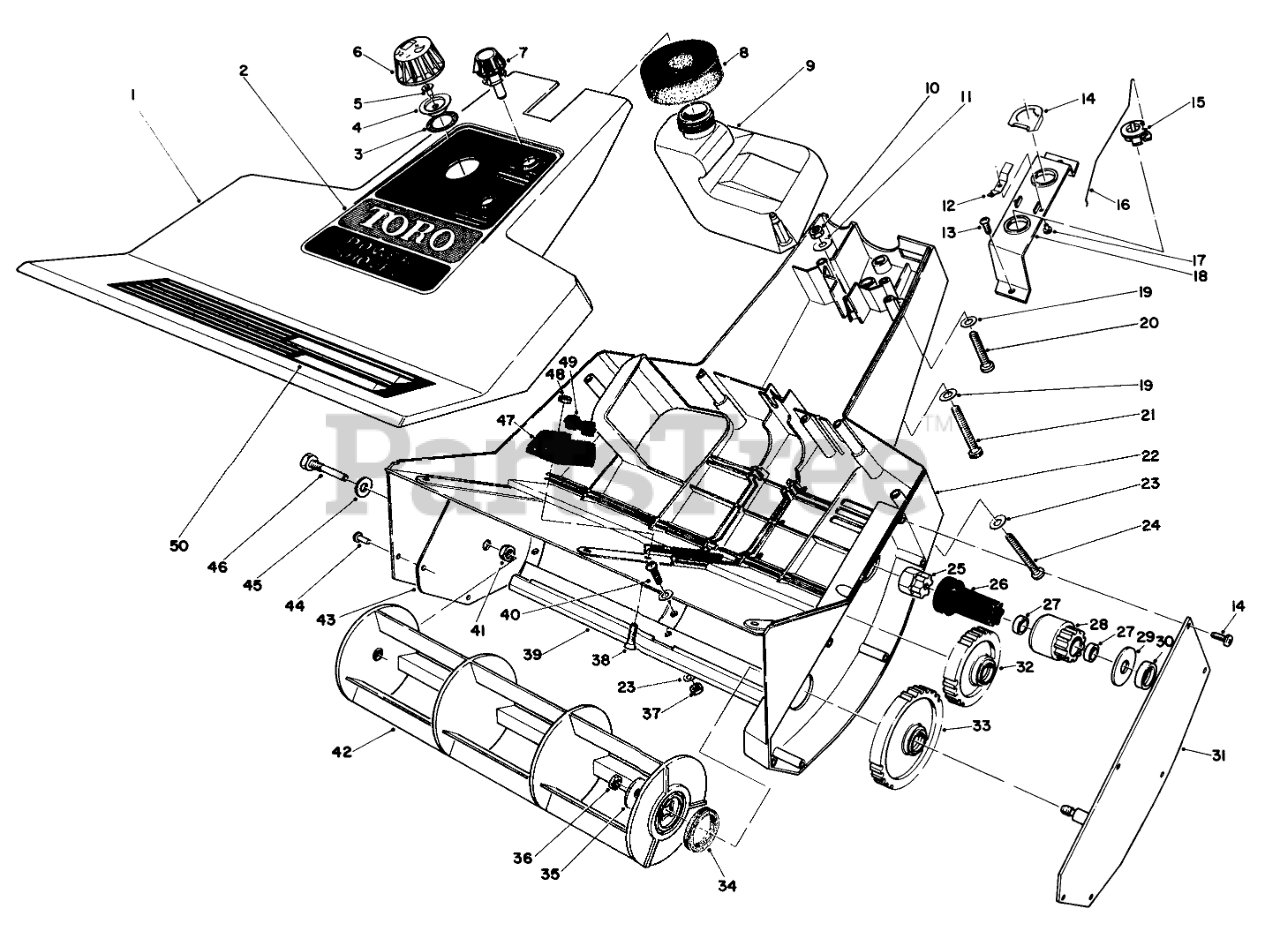

ROTOR HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 11-3359

Insert-Shroud Assembly (Incl. Ref. #50)

$

$

Not available

2

Toro 44-3150

CONTROL DECAL

$

$

Not available

3

Toro 42-5910

Gasket
(Superseded to 80-4730)

$

$

Not available

4

Toro 42-5680

Insert

$

$

Not available

5

Toro 42-5760

Valve
(Superseded to 42-5600)

$

$

Not available

6

Toro 44-3120

Gas Cap Assembly (Incl. Ref. #3-5)
(Superseded to 42-5600)

$

$

Not available

7

Toro 44-2800

Knob-Control

$

$

Not available

8

Toro 25-1610

FOAM PAD

$

$

Not available

9

Toro 44-2950

GAS TANK

$

$

Not available

10

Toro 329642

Nut

$

$

Currently unavailable

11

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

12

Toro 46-6750

CONTACT SWITCH

$

$

Not available

13

Toro 32104118

Screw-Self Tapping

$

$

Currently unavailable

14

Toro 46-6760

SWITCH ACTUATOR

$

$

Not available

15

Toro 44-2810

CONTROL

$

$

Not available

16

Toro 46-2000

CHOKE LINKAGE

$

$

Not available

17

Toro 3290-56

.125 X 1/8 POP RIVET

$

$

Not available

18

Toro 44-2770

Bracket-Controls

$

$

Not available

19

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3274-58

SCREW-HSH

$

$

Not available

21

Toro 3274-60

SCREW-HSH

$

$

Not available

22

Toro 46-5990

Housing (Incl.Ref. #43 & 44)

$269.99

$

Usually ships in 3-6 days

0

23

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

24

Toro 32105-6

MACH SCREW 10-24 2.25 L

$

$

Not available

25

Toro 44-2890

Adapter-Crankshaft

$

$

Not available

26

Toro 38-8570

DRIVE COUPLING

$44.99

$

Usually ships in 3-6 days

0

27

Toro 252-102

Bearing

$

$

Not available

28

Toro 44-2820

Gear Assembly-Drive (Incl. Ref. #27)

$

$

Not available

29

Toro 44-3190

Washer-Thrust
(Superseded to 5-0737)

$

$

Not available

30

Toro 44-3080

Spacer Gear

$

$

Not available

31

Toro 44-3070

Gear Carrier Plate

$

$

Not available

32

Toro 44-2780

Gear Assembly-Idler

$

$

Not available

33

Toro 44-2740

Gear Assembly-Rotor

$

$

Not available

34

Toro 44-2710

FELT WASHER

$

$

Not available

35

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

36

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 3296-54

NUT-LOCK

$5.49

$

In Stock, only 2 left!

0

38

Toro 32108-98

Screw-Machine Slotted Flat Hd.

$

$

Not available

39

Toro 44-2960

SCRAPER

$35.99

$

Usually ships in 3-6 days

0

40

Toro 3250-29

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

41

Toro 32146-21

3/8 24 JAM NUT

$2.49

$

Usually ships in 3-6 days

0

42

Toro 44-2730

ROTOR

$55.99

$

Usually ships in 3-6 days

0

43

Plate Housing Reinforcement

$

$

Not available

44

Toro 3290-55

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

45

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Toro 38-8210

ROTOR PIN

$21.99

$

Usually ships in 3-6 days

0

47

Toro 44-3090

Mount-Engine Upper

$

$

Not available

48

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

49

Toro 44-2860

Mount-Rubber Isolator

$

$

Not available

50

Toro 44-3160

Decal-Warning

$

$

Not available
