38350 - Toro Power Shovel Snow Thrower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

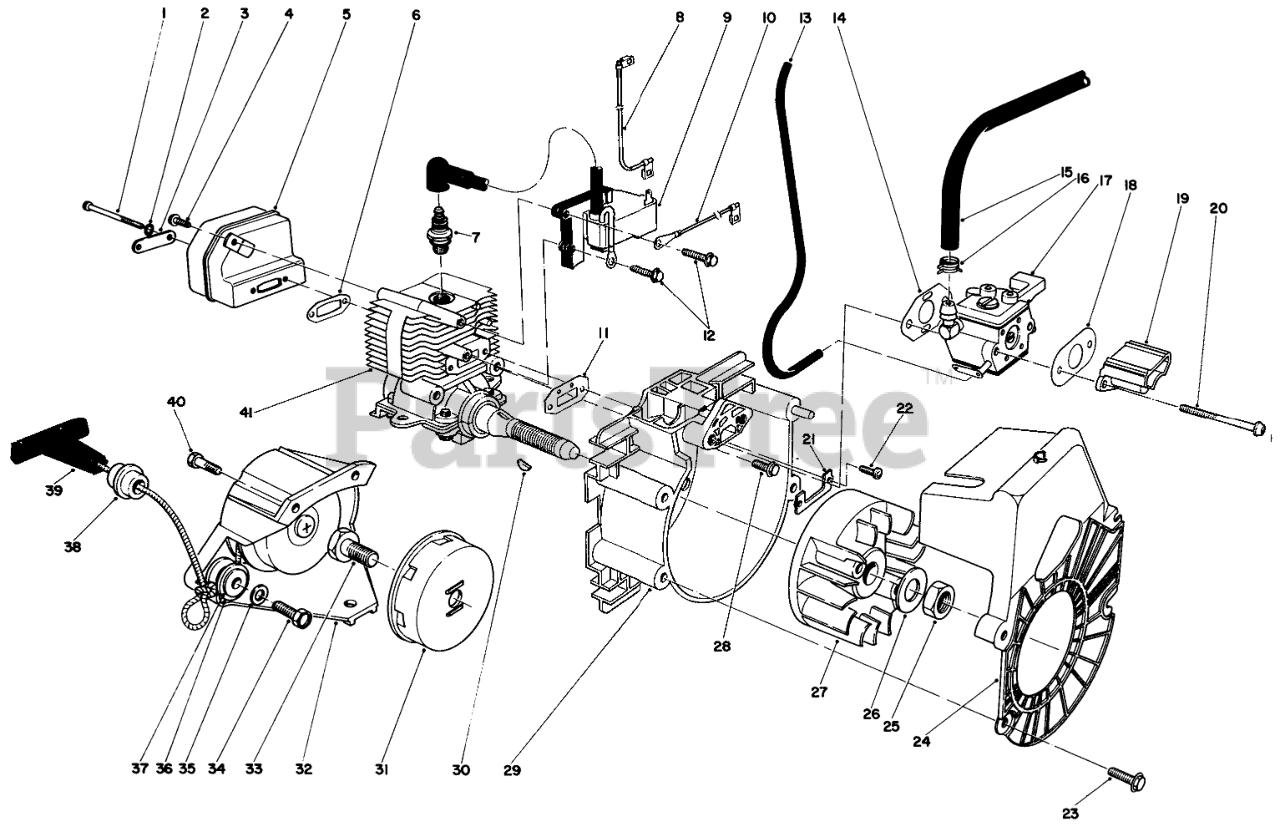

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 45-2380

MUFFLER SCREW

$

$

Not available

2

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

3

Toro 45-0410

Stress Plate, Muffler

$

$

Currently unavailable

4

Toro 45-2370

Screw, Muffler Tab

$

$

Not available

5

Toro 45-2510

Muffler Assembly

$

$

Not available

6

Toro 45-1950

EXHAUST GASKET

$

$

Not available

7

Toro 45-2860

SPARK PLUG

$

$

Not available

8

Toro 45-2340

Wire Assembly-Coil

$

$

Not available

9

Toro 45-2290

BIM Module

$

$

Not available

10

Toro 45-2330

Wire Assembly-Ground

$

$

Not available

11

Toro 45-1960

Gasket, Intake
(Superseded to 45-2990)

$9.99

$

Usually ships in 3-6 days

0

12

Toro 45-0640

Screw CDI

$

$

Not available

13

Toro 44-3170

HOSE-PRIMER

$10.99

$

Usually ships in 3-6 days

0

14

Toro 45-1790

Gasket, Carburetor
(Superseded to 45-3060)

$10.99

$

Usually ships in 3-6 days

0

15

Toro 44-2910

Hose Fuel
(Superseded to 46-4830)

$

$

Not available

16

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

17

Toro 45-2360

Carburetor

$

$

Not available

18

Toro 45-2350

CHOKE GASKET

$

$

Not available

19

Toro 45-2260

Spit Back Cup

$

$

Not available

20

Toro 45-2400

Screw-Carburetor

$

$

Not available

21

Toro 45-0540

Plate-Stress

$

$

Not available

22

Toro 45-2140

Screw lntake

$

$

Not available

23

Toro 45-0630

Screw-Shroud

$

$

Not available

24

Toro 45-1851

Cooling Shroud

$

$

Not available

25

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

26

Toro 45-2280

Washer, Flywheel

$

$

Not available

27

Toro 45-1670

Flywheel

$

$

Not available

28

Toro 45-0710

Screw
(Superseded to 32144-1)

$3.49

$

In Stock, Qty 20+

0

29

Toro 45-2021

Backing Plate Assembly

$

$

Not available

30

Toro 45-0470

FLYWHEEL KEY

$

$

Not available

31

Toro 45-2150

Cup, Starter

$

$

Not available

32

Toro 45-1480

Starter Assembly (Incl. Ref. #34-39)

$

$

Not available

33

Toro 45-2320

Spark Plug

$

$

Not available

34

Toro 45-2820

Screw, Idler Pulley

$

$

Not available

35

Toro 45-2830

Washer, Brake

$

$

Not available

36

Toro 45-2840

Idler Pulley (Incl. Ref. #37)

$

$

Not available

38

Toro 44-2850

Guide Rope

$

$

Not available

39

Toro 38-6570

Handle

$

$

Not available

40

Toro 45-0710

Screw
(Superseded to 32144-1)

$3.49

$

In Stock, Qty 20+

0

41

Toro 45-2270

SHORT BLOCK ASM

$

$

Not available

Toro 221-710

Engine Complete

Note: Not illustrated

$

$

Currently unavailable

Toro 45-2110

THREADED INSERT

Note: Not illustrated

$

$

Not available
