38325 C - Toro Power Shovel Snow Thrower (SN: 009000001 - 009999999) (1989) ROTOR HOUSING ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

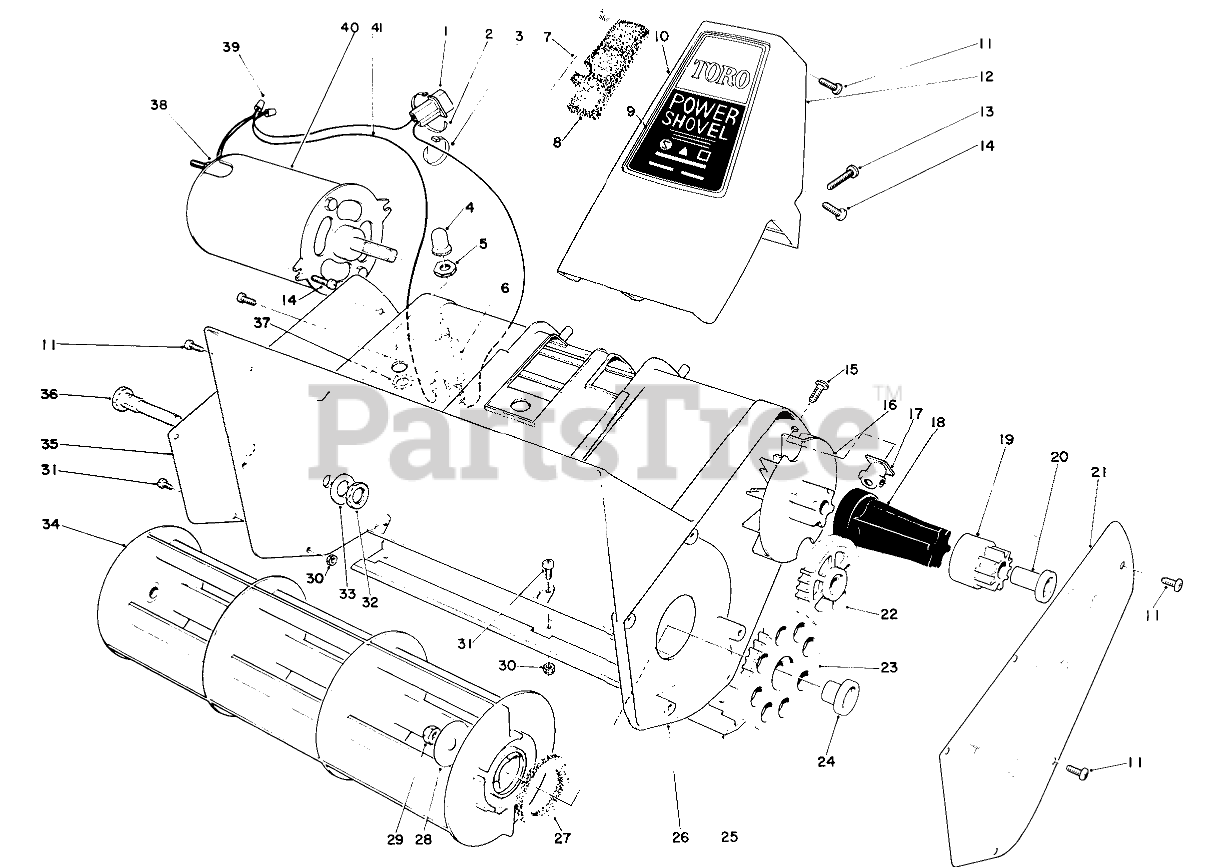

ROTOR HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 218-551

HSG PIN CONNECTOR

$

$

Not available

2

Toro 3290-381

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

3

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

4

Toro 218-518

Circuit Breaker Seal

$

$

Not available

5

Toro 218-523

Hex Nut

$

$

Not available

6

Toro 42-2660

Circuit Breaker (Incl. Ref. #5)

$

$

Not available

7

Toro 42-2910

RETAINER - FILTER

$

$

Not available

8

Toro 42-0050

FOAM FILTER

$6.49

$

Usually ships in 3-6 days

0

9

Toro 43-4950

DECAL-HDLE SUPRT (SEMKO

$

$

Not available

10

Toro 43-0060

FRONT SUPPORT

$

$

Not available

11

Toro 32104-118

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

12

Toro 42-2860

Handle Support-Back
(Superseded to 16-9389)

$

$

Not available

13

Toro 3250-20

SCREW-PPH

$5.99

$

In Stock, only 3 left!

0

14

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 6

0

15

Toro 32144-65

SCREW-PPH

$2.49

$

Usually ships in 3-6 days

0

16

Toro 41-9820

FAN, POWER SHOVEL

$37.99

$

In Stock, only 1 left!

0

17

Toro 53-9390

MOUNTING BLOCK

$

$

Not available

18

Toro 38-8570

DRIVE COUPLING

$44.99

$

Usually ships in 3-6 days

0

19

Toro 42-0240

Drive Gear (Incl. Ref. #20)

$64.99

$

Usually ships in 3-6 days

0

20

Toro 42-0010

BUSHING, DRIVE GEAR

$29.99

$

In Stock, only 1 left!

0

21

Toro 12-8029

Gear Carrier
(Superseded to 53-9300-03)

$76.99

$

Usually ships in 3-6 days

0

22

Toro 56-6770

IDLER GEAR ASM

$38.99

$

Usually ships in 3-6 days

0

23

Toro 42-0230

Rotor Gear (Incl. Ref. #24)

$

$

Not available

24

Toro 41-9890

BUSHING, ROTOR GEAR

$

$

Not available

25

Toro 41-9830

Scraper
(Superseded to 99-5386)

$32.99

$

In Stock, Qty 5

0

26

Toro 42-2610

HOUSING

$

$

Not available

27

Toro 38-8580

FELT WASHER

$8.49

$

Usually ships in 3-6 days

0

28

Toro 42-0070

ROTOR WASHER

$

$

Not available

29

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

30

Toro 3296-54

NUT-LOCK

$5.49

$

In Stock, only 2 left!

0

31

Toro 3250-19

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

32

Toro 32152-8

NUT-LOCK, CONE

$2.99

$

In Stock, only 1 left!

0

33

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 38-8170

ROTOR

$100.99

$

Usually ships in 3-6 days

0

35

Toro 12-8019

Cover-Right Side
(Superseded to 41-9960)

$26.99

$

Usually ships in 3-6 days

0

36

Toro 38-8210

ROTOR PIN

$21.99

$

Usually ships in 3-6 days

0

37

Toro 3255-16

WASHER-LOCK/EXT

$0.99

$

Usually ships in 3-6 days

0

38

Toro 3296-21

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

39

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

40

Toro 42-2710

Motor

$

$

Not available

41

Toro 73-1130

Wire Assembly

$

$

Not available
