38325 C - Toro Power Shovel Snow Thrower (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

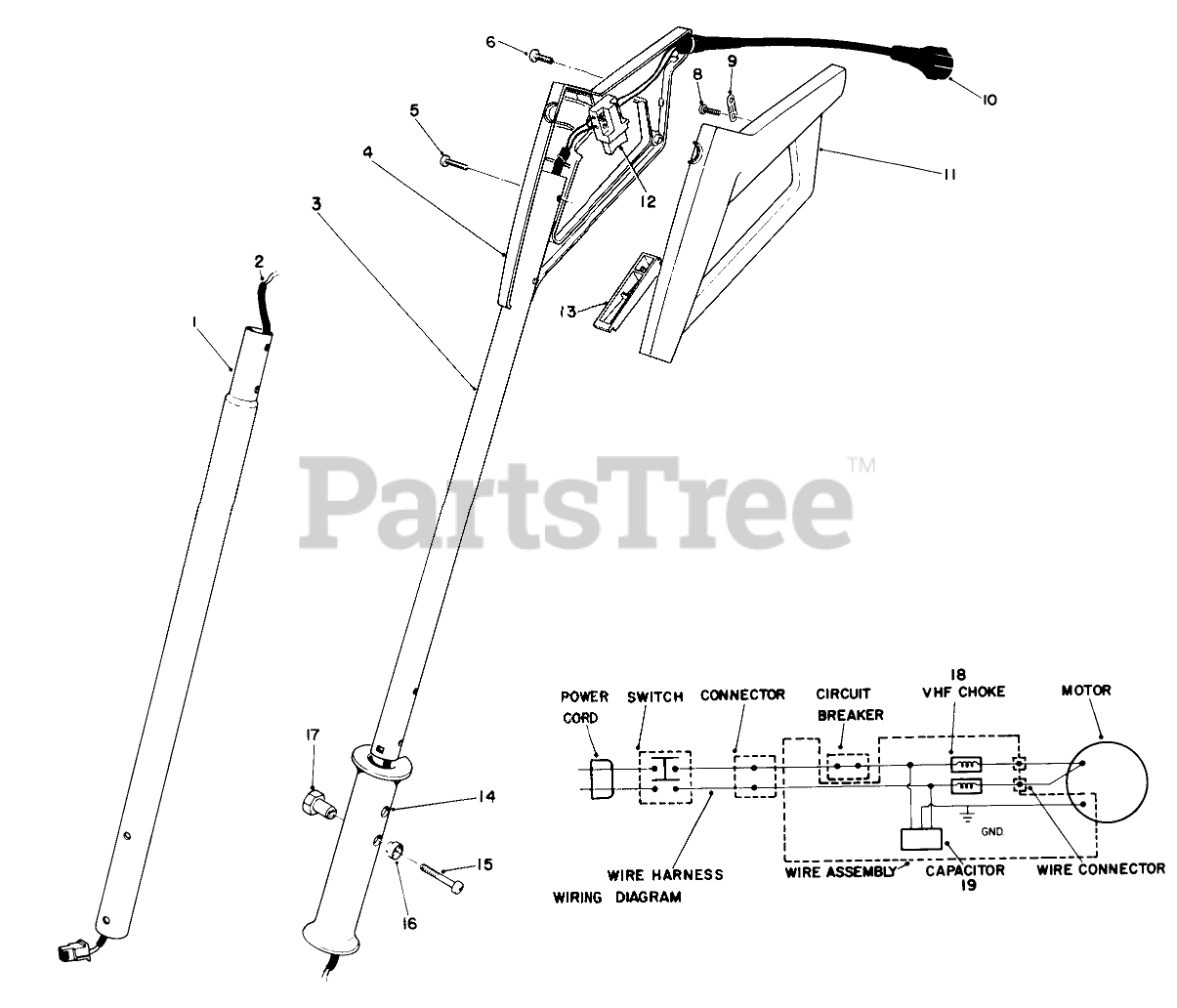

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 41-9850

LOWER TUBE, P. SHOVEL

$

$

Not available

2

Toro 56-6050

Wire Harness
(Superseded to 64-8800)

$

$

Not available

3

Toro 41-9860

Tube-Upper Handle

$

$

Not available

4

Toro 43-1620

Grip-Control R.H.

$

$

Not available

5

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

6

Toro 32104-118

SCREW-PPH

$

$

Not available

8

Toro 32144-33

Screw, Pan Head

$

$

Not available

9

Toro 42-2510

Clamp-Power Cord

$

$

Not available

10

Toro 42-2640

Power Cord-Upper Wiring Harness

$

$

Not available

11

Toro 43-1930

Grip-Control L.H.

$

$

Not available

12

Toro 33-7890

Switch

$

$

Not available

13

Toro 42-2480

Switch Bar

$

$

Not available

14

Toro 41-9880

Grip-Handle

$

$

Not available

15

Toro 39-3720

SPEC PAN HD SCREW

$

$

Not available

16

Toro 42-4360

Bushing-Screw

$

$

Not available

17

Toro 39-3710

SPECIAL HEX NUT

$

$

Not available

18

VHF Choke

$

$

Not available

19

Capacitor

$

$

Not available
