38310 - Toro Power Shovel Snow Thrower (SN: 069000001 - 069999999) (1996) HANDLE ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

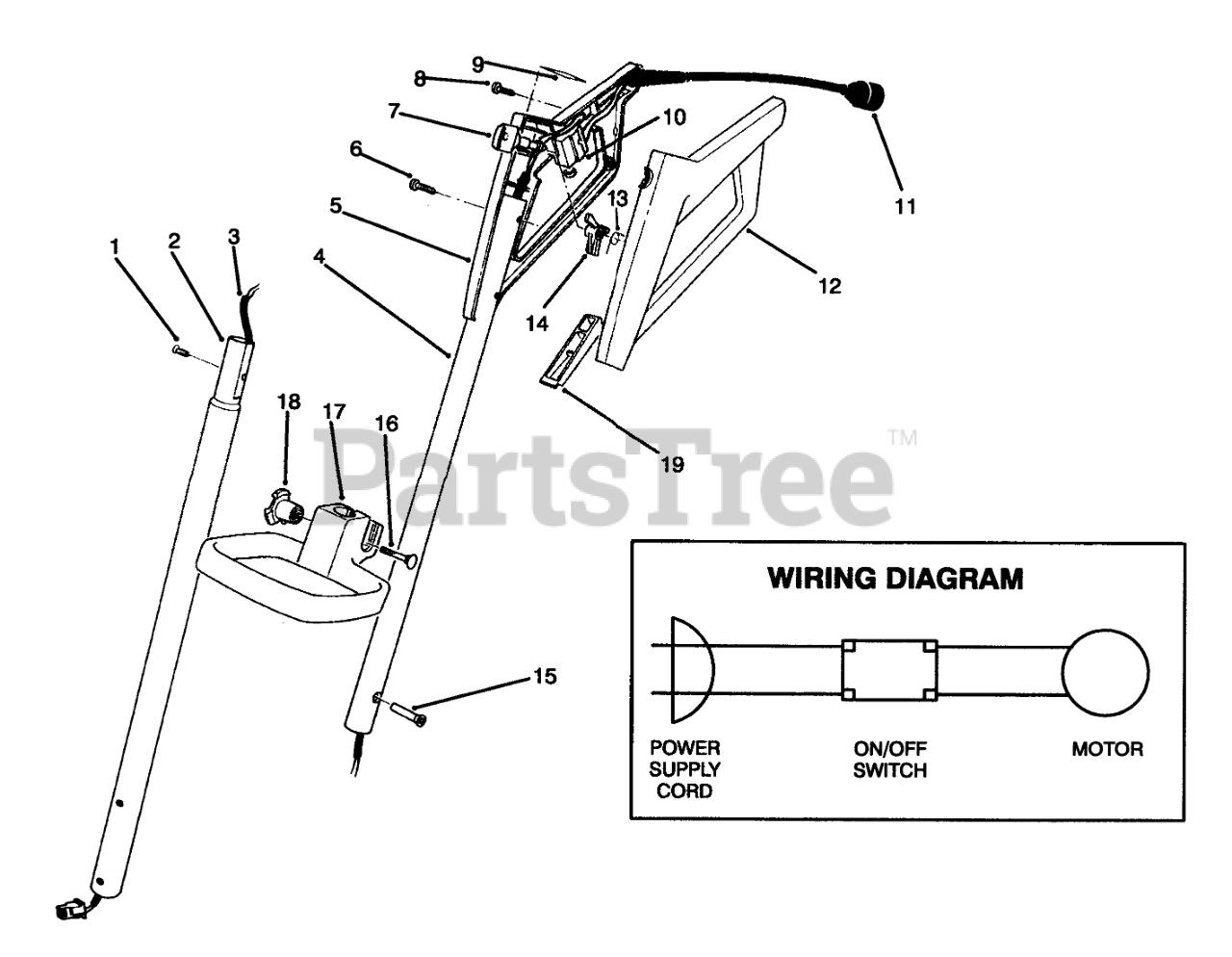

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 73-4360

SHOULDER SCREW

$

$

Not available

2

Toro 64-8810

LOWER TUBE P. SHOVEL

$

$

Not available

3

Toro 64-8800

WIRE HARNESS, P.S.

$

$

Not available

4

Toro 64-8820

UPPER TUBE P. SHOVEL

$

$

Not available

5

Toro 42-2831

PS-CONTROL GRIP, RH

$

$

Not available

6

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

7

Toro 38-8310

KEY

$9.99

$

In Stock, only 2 left!

0

8

Toro 32104-118

SCREW-PPH

$

$

Not available

9

Toro 38-8340

UL GRIP DECAL

$

$

Not available

10

Toro 36-8340

SWITCH-STARTER

$31.99

$

In Stock, only 3 left!

0

11

Toro 42-0775

SUPPLY CORD, 1200

$

$

Not available

12

Toro 42-2841

PS-CONTROL GRIP, LH

$

$

Not available

13

Toro 38-8330

TORSION SPRING

$

$

Not available

14

Toro 41-9870

LOCKOUT

$10.99

$

Usually ships in 3-6 days

0

15

Toro 73-4350

COUNTER SUNK NUT

$

$

Not available

16

Toro 33-5790

BOLT-CARR

$5.49

$

In Stock, only 2 left!

0

17

Toro 61-8901

PS-ADJUST HANDLE-BLK

$20.99

$

In Stock, only 1 left!

0

18

Toro 73-4740

HANDLE KNOB

$10.99

$

Usually ships in 3-6 days

0

19

Toro 42-2870

SWITCH BAR,POWER SHOVEL

$

$

Not available

Toro 60-9652

Loose Parts
(Superseded to 60-9653)

Note: Not illustrated

$

$

Not available
