38310 - Toro Power Shovel Snow Thrower (SN: 005000001 - 005999999) (1985) ROTOR HOUSING ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

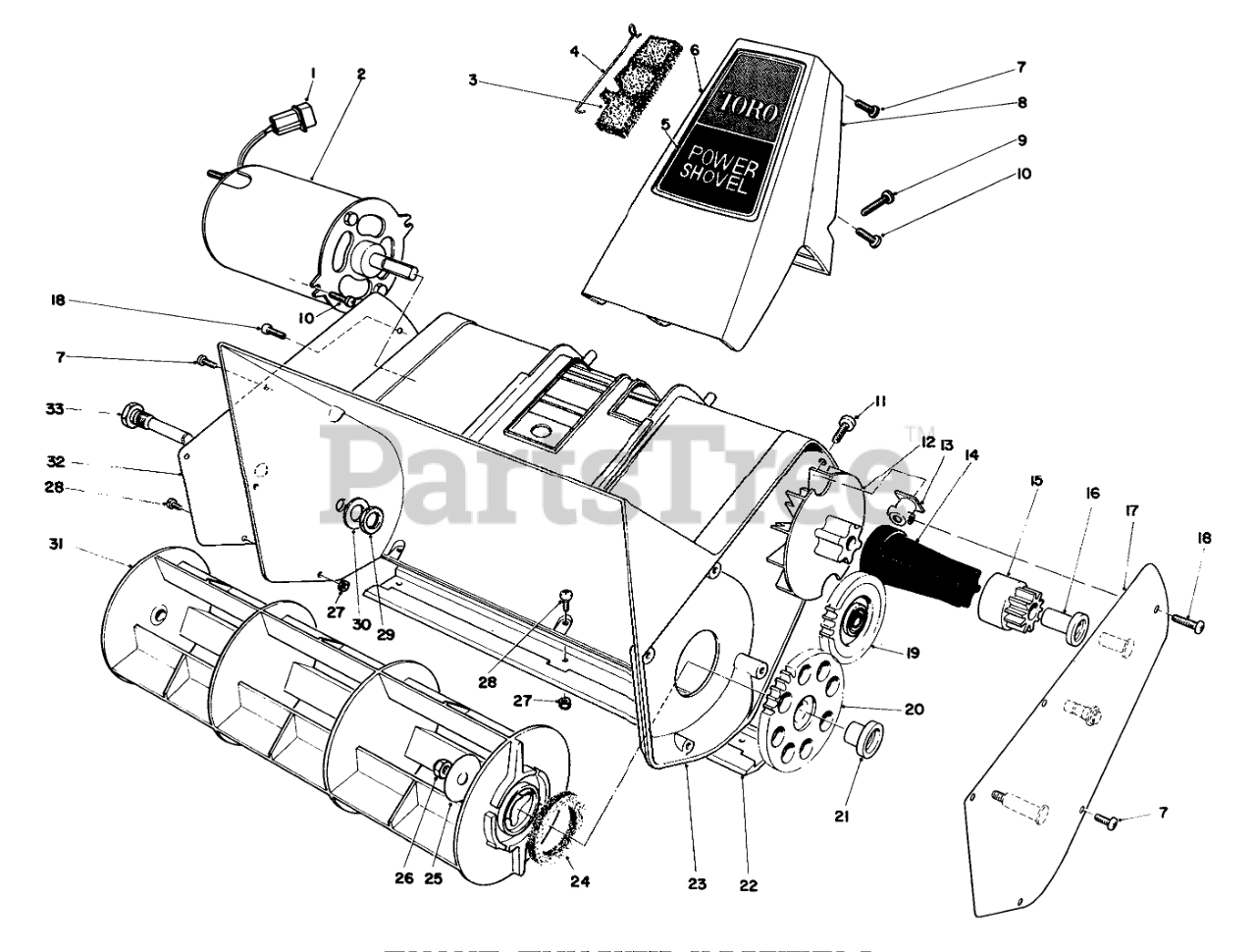

ROTOR HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 218-517

Pin Housing

$

$

Not available

2

Toro 41-9920

Motor
(Superseded to 43-2590)

$

$

Not available

3

Toro 42-0050

FOAM FILTER

$7.49

$

Usually ships in 3-6 days

0

4

Toro 42-2910

RETAINER - FILTER

$

$

Not available

5

Toro 41-9840

HANDLE SUPT DECAL

$

$

Not available

6

Toro 42-2850

HANDLE SUPPORT, FRONT

$

$

Not available

7

Toro 32104-118

SCREW-PPH

$

$

Not available

8

Toro 42-2860

Handle Support-Back
(Superseded to 16-9389)

$

$

Not available

9

Toro 3250-20

SCREW-PPH

$6.99

$

In Stock, only 3 left!

0

10

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11

Toro 32144-65

SCREW-PPH

$

$

Not available

12

Toro 41-9820

FAN, POWER SHOVEL

$37.99

$

In Stock, only 1 left!

0

13

Toro 53-9390

MOUNTING BLOCK

$

$

Not available

14

Toro 38-8570

DRIVE COUPLING

$51.99

$

Usually ships in 3-6 days

0

15

Toro 424240

Drive Gear (Incl. Ref. #16)

$

$

Currently unavailable

16

Toro 424010

Latch-Door

$

$

Currently unavailable

17

Toro 53-9300

Gear Carrier
(Superseded to 53-9300-03)

$89.99

$

Usually ships in 3-6 days

0

18

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

19

Toro 53-9320

Idler Gear Assembly

$

$

Not available

20

Toro 42-0230

Rotor Gear Assembly (Incl. Ref. #21)

$

$

Not available

21

Toro 41-9890

BUSHING, ROTOR GEAR

$

$

Not available

22

Toro 41-9830

Scraper
(Superseded to 99-5386)

$32.99

$

In Stock, only 4 left!

0

23

Toro 53-9380

Housing
(Superseded to 16-3379)

$

$

Not available

24

Toro 38-8580

FELT WASHER

$9.99

$

Usually ships in 3-6 days

0

25

Toro 42-0070

ROTOR WASHER

$

$

Not available

26

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

27

Toro 3296-54

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

28

Toro 3250-19

SCREW-PPH

$2.49

$

In Stock, only 3 left!

0

29

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

30

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 38-8170

ROTOR

$117.99

$

Usually ships in 3-6 days

0

32

Toro 41-9960

RT. SIDE COVER (RAW)

$31.99

$

Usually ships in 3-6 days

0

33

Toro 38-8210

ROTOR PIN

$

$

Not available
