38310 - Toro Power Shovel Snow Thrower (SN: 001000001 - 001050100) (1981) ROTOR HOUSING ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

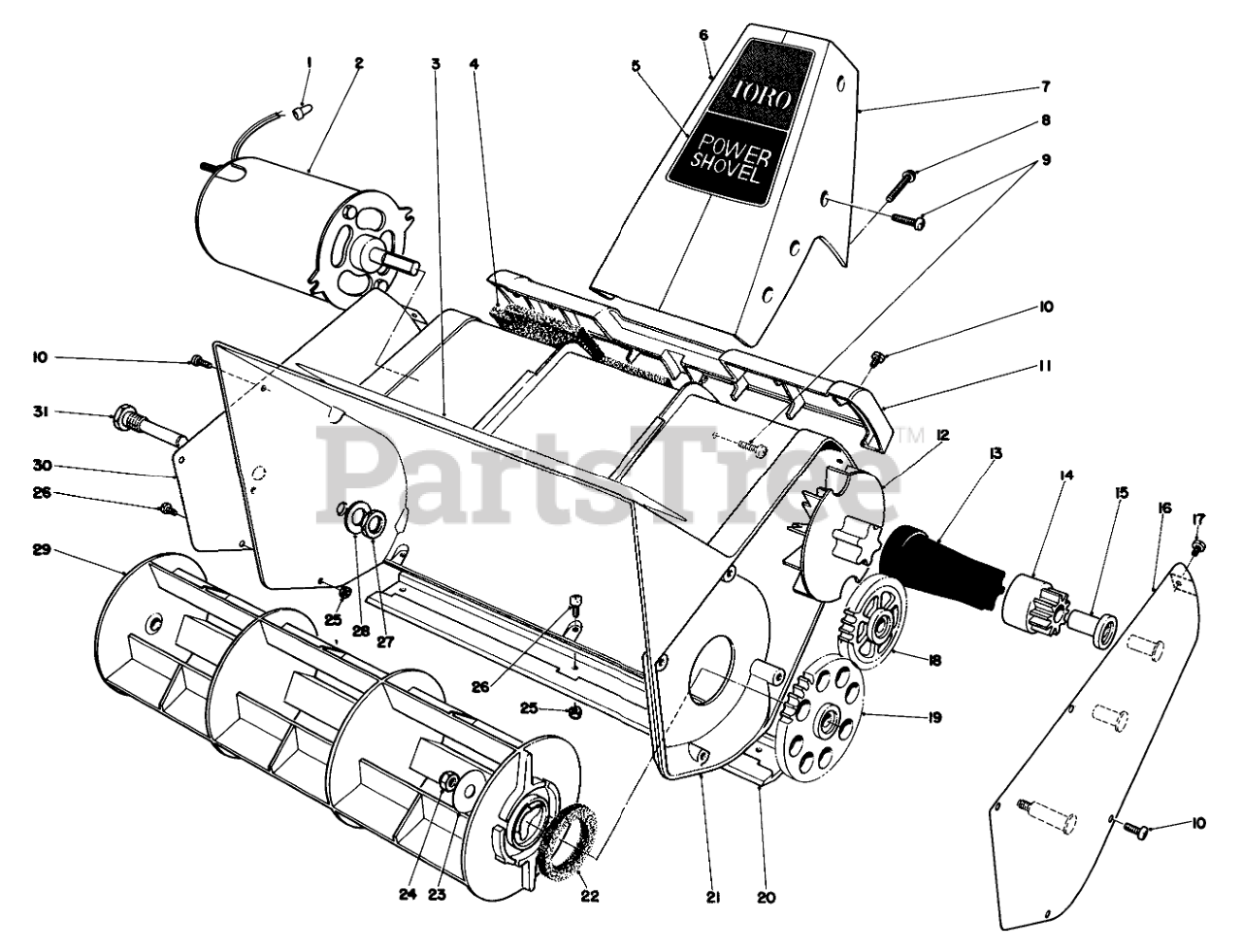

ROTOR HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 218-505

Wire Connector
(Superseded to 218-496)

$

$

Not available

2

Toro 38-8120

Electric Motor
(Superseded to 43-2590)

$

$

Not available

3

Toro 38-8440

Decal-U.L.

$

$

Not available

4

Toro 38-8490

Foam Filter

$

$

Not available

5

Toro 38-8350

HANDLE DECAL

$

$

Not available

6

Toro 38-8130

RH HANDLE SUPT

$

$

Not available

7

Toro 38-8140

LH HANDLE SUPT

$

$

Not available

8

Toro 3250-20

SCREW-PPH

$6.99

$

In Stock, only 3 left!

0

9

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

10

Toro 32104-118

SCREW-PPH

$

$

Not available

11

Toro 38-8550

DEFLECTOR

$

$

Not available

12

Toro 38-8250

Fan

$

$

Not available

13

Toro 38-8570

DRIVE COUPLING

$51.99

$

Usually ships in 3-6 days

0

14

Toro 38-8450

Pinion Assy. (Incl. Ref. #15)

$

$

Not available

15

Toro 38-8560

BUSHING

$

$

Not available

16

Toro 38-8540

Gear Carrier

$

$

Not available

17

Toro 32144-35

Taptite Screw
(Superseded to 3250-18)

$

$

Not available

18

Toro 38-8240

Idler Gear

$

$

Not available

19

Toro 38-8460

Rotor Gear (Incl. Ref. #15)

$

$

Not available

20

Toro 38-8370

SCRAPER

$

$

Not available

21

Toro 38-8110

Housing

$

$

Not available

22

Toro 38-8580

FELT WASHER

$9.99

$

Usually ships in 3-6 days

0

23

Toro 3-6916

WASHER

$

$

Not available

24

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

25

Toro 3296-54

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

26

Toro 3250-19

SCREW-PPH

$2.49

$

In Stock, only 3 left!

0

27

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 38-8170

ROTOR

$117.99

$

Usually ships in 3-6 days

0

30

Toro 38-8430

RT SIDE COVER

$

$

Not available

31

Toro 38-8210

ROTOR PIN

$

$

Not available
