38310 - Lawn-Boy Power Shovel Snow Thrower (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

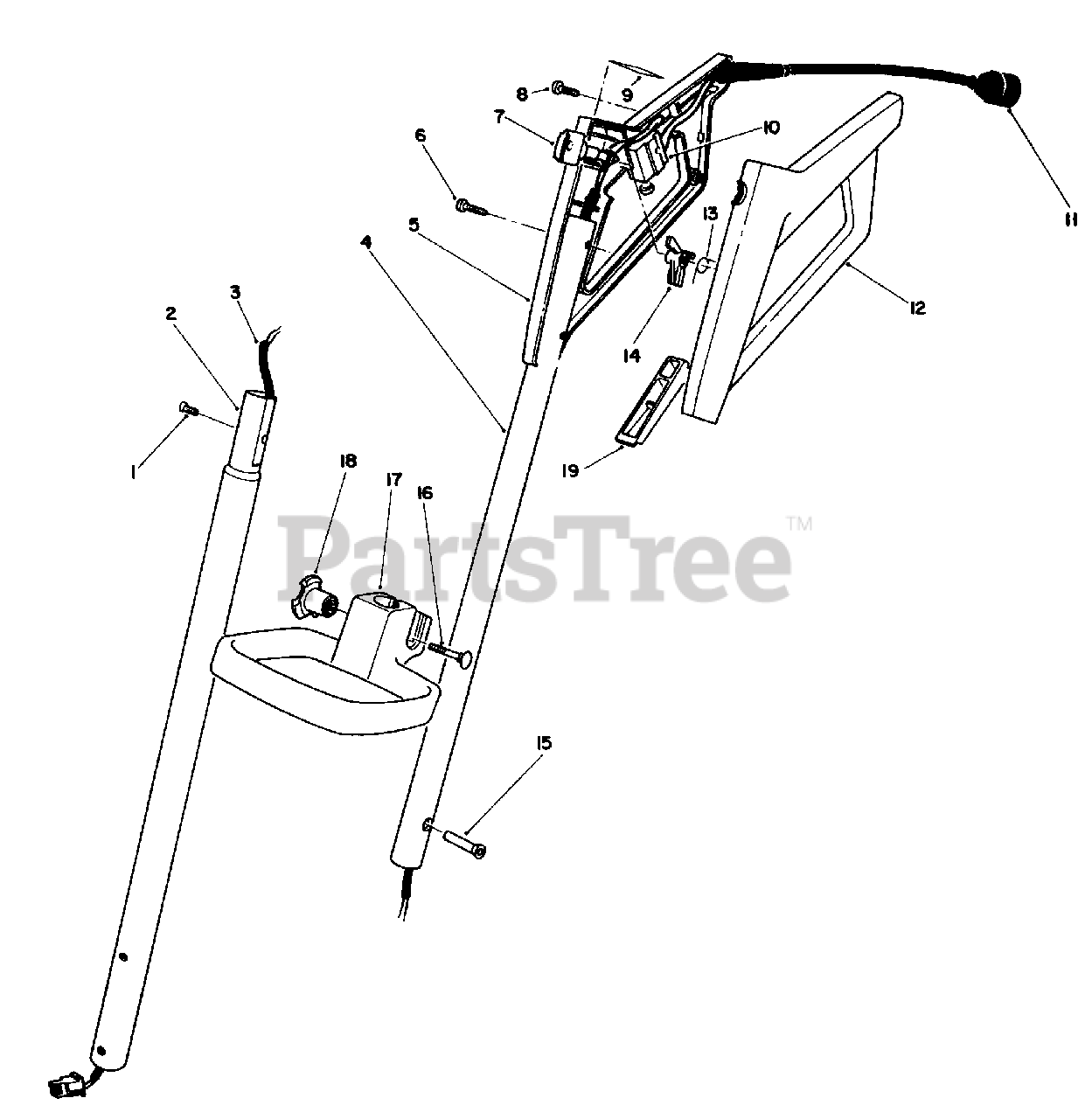

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 32108-104

Screw-Flat Head

$

$

Not available

2

Lawn-Boy 64-8810

Tube-Lower Handle

$

$

Not available

3

Lawn-Boy 64-8800

Wire Harness

$

$

Not available

4

Lawn-Boy 64-8820

Tube-Upper Handle

$

$

Not available

5

Lawn-Boy 42-2831

Grip-Control R.H.

$

$

Not available

6

Lawn-Boy 32104-121

Screw-Pan Hd.
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

$9.49

$

In Stock, only 1 left!

0

8

Lawn-Boy 32104-118

Screw-Pan Hd.

$

$

Not available

9

Lawn-Boy 38-8340

Decal-Control Grip

$

$

Not available

10

$29.99

$

In Stock, only 4 left!

0

11

Lawn-Boy 42-0775

Cord-Supply

$

$

Not available

12

Lawn-Boy 42-2841

Grip-Control L.H.

$

$

Not available

13

$

$

Not available

14

$9.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 73-1560

Nut-Counterksunk

$

$

Not available

16

Lawn-Boy 33-5790

Bolt-Carriage

$5.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 61-8901

Handle-Adjustable

$19.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 62-1920

Knob
(Superseded to 73-4740)

$9.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 42-2870

Switch Bar

$

$

Not available

Lawn-Boy 60-9652

Loose Parts
(Superseded to 60-9653)

Note: Not Illustrated

$

$

Not available
