38310 - Lawn-Boy Power Shovel Snow Thrower (SN: 008000001 - 008999999) (1988) ROTOR HOUSING ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

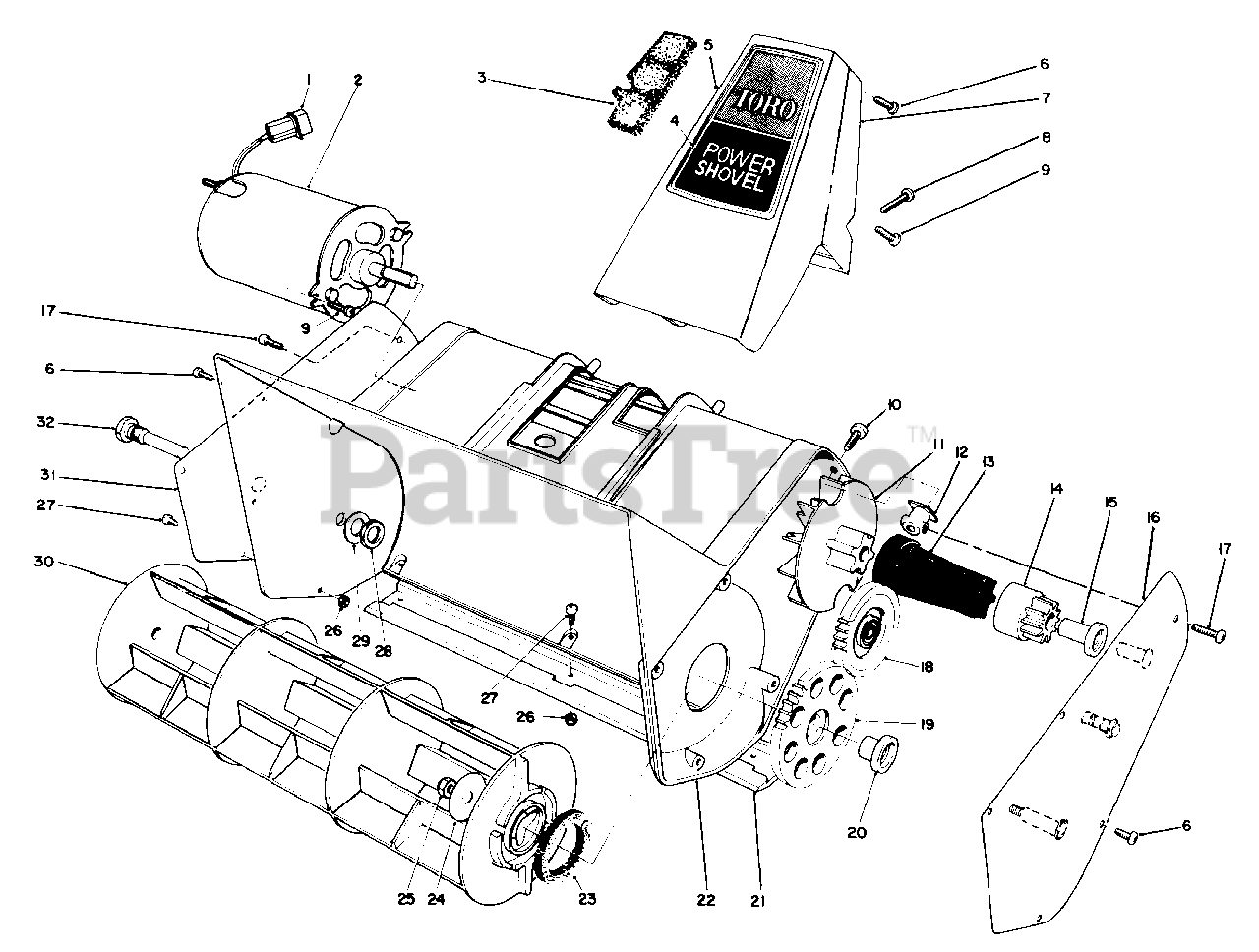

ROTOR HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 218-551

Pin-Housing

$

$

Not available

2

Lawn-Boy 53-4400

Motor
(Superseded to 53-4401)

$

$

Not available

3

Lawn-Boy 42-0050

Filter-Foam

$7.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 41-9840

Decal-Handle Support

$

$

Not available

5

Lawn-Boy 42-2850

Handle Support-Front

$

$

Not available

6

Lawn-Boy 32104-118

Screw-Pan Head

$

$

Not available

7

Lawn-Boy 42-2860

Handle Support-Back
(Superseded to 16-9389)

$

$

Not available

8

Lawn-Boy 3250-20

Screw-Pan Head

$6.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 32144-36

Screw-Pan Head

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 32144-66

Screw-Phillips Head

$3.49

$

Usually ships in 3-6 days

0

$37.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 53-9390

Block-Mounting

$

$

Not available

13

Lawn-Boy 38-8570

Coupling-Drive

$51.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 42-0240

Drive Gear (Incl. Ref. #15)

$

$

Not available

15

Lawn-Boy 42-0010

Bushing-Drive Gear

$29.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 53-9300

Gear-Carrier
(Superseded to 53-9300-03)

$89.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 32104-121

Screw-Pan Head
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 56-6770

Idler Gear Assembly

$43.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 42-0230

Rotor Gear Assembly (Incl. Ref. #20)

$

$

Not available

20

Lawn-Boy 41-9890

Bushing-Rotor

$

$

Not available

21

Lawn-Boy 41-9830

Scraper
(Superseded to 99-5386)

$32.99

$

In Stock, only 4 left!

0

22

Lawn-Boy 53-9380

Housing
(Superseded to 16-3379)

$

$

Not available

23

Lawn-Boy 38-8580

Washer-Felt

$9.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 42-0070

Washer-Rotor

$

$

Not available

25

$4.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 3296-54

Locknut-Thin

$5.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 3250-19

Screw-Pan Head

$2.49

$

In Stock, only 3 left!

0

28

Lawn-Boy 32152-8

Nut-Lock

$3.49

$

In Stock, only 1 left!

0

29

Lawn-Boy 3256-24

Flat-Washer

$0.99

$

In Stock, Qty 20+

0

30

$117.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 41-9960

Cover-Right Side

$31.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 38-8210

Pin-Rotor

$

$

Not available
