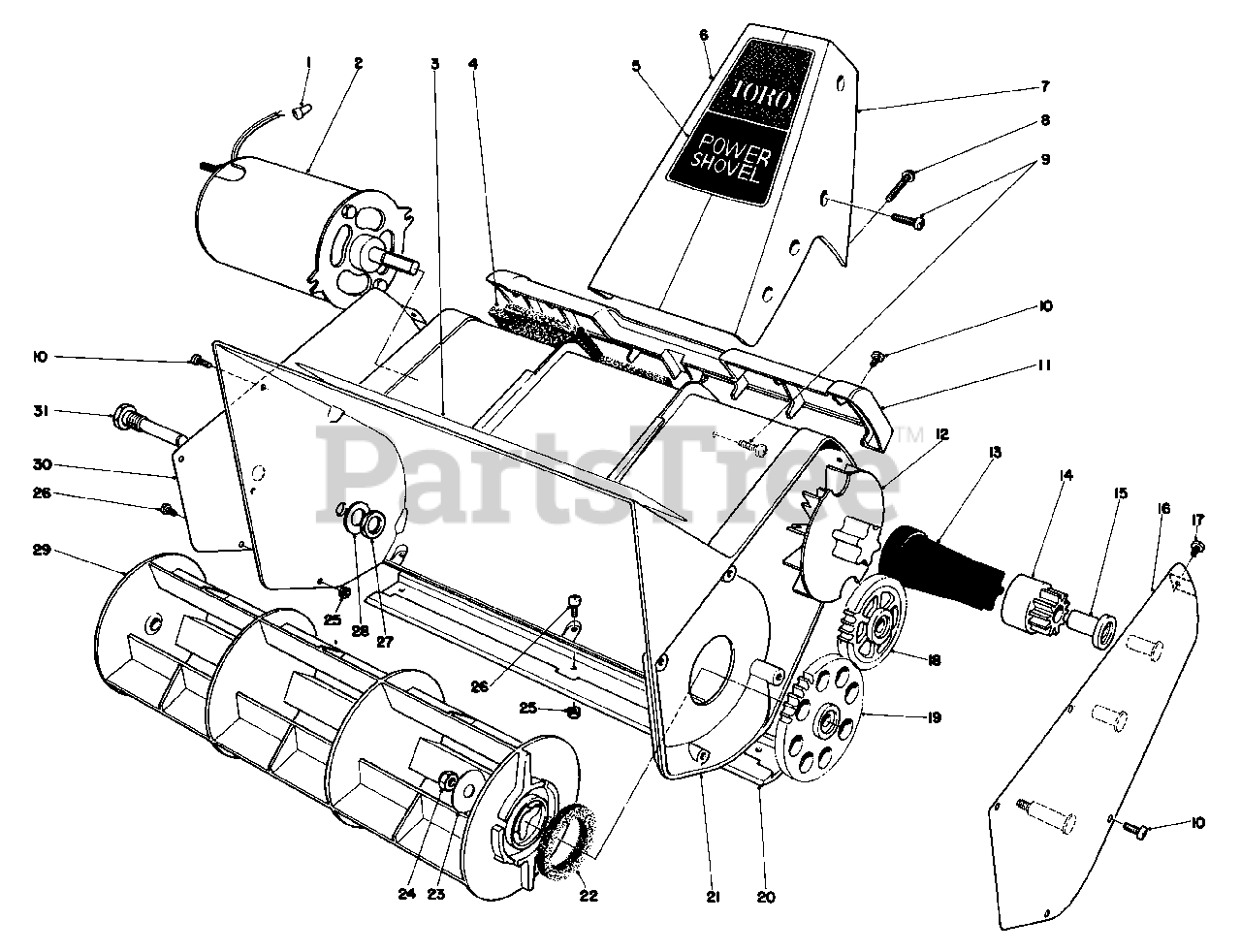

38310 - Lawn-Boy Power Shovel Snow Thrower (SN: 000000001 - 000999999) (1980) ROTOR HOUSING ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

ROTOR HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 218-505

Wire Connector
(Superseded to 218-496)

$

$

Not available

2

Lawn-Boy 38-8120

Electric Motor
(Superseded to 43-2590)

$

$

Not available

3

Lawn-Boy 38-8440

Decal-U.L.

$

$

Not available

4

Lawn-Boy 38-8490

Foam Filter

$

$

Not available

5

Lawn-Boy 38-8350

Decal-Handle Support

$

$

Not available

6

Lawn-Boy 38-8130

Handle Support R.H.

$

$

Not available

7

Lawn-Boy 38-8140

Handle Support L.H.

$

$

Not available

8

Lawn-Boy 3250-20

Plastite Screw

$6.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 32144-36

Plastite Screw

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 32104-118

Plastite Screw

$

$

Not available

11

Lawn-Boy 38-8550

Deflector

$

$

Not available

$

$

Not available

13

Lawn-Boy 38-8570

Drive Coupling

$51.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 38-8450

Pinion Assy. (Incl. Ref. #15)

$

$

Not available

15

Lawn-Boy 38-8560

Bushing-Gear

$

$

Not available

16

Lawn-Boy 38-8540

Gear Carrier

$

$

Not available

17

Lawn-Boy 32144-35

Taptite Screw
(Superseded to 3250-18)

$

$

Not available

18

Lawn-Boy 38-8240

Idler Gear

$

$

Not available

19

Lawn-Boy 38-8460

Rotor Gear (Incl. Ref. #15)

$

$

Not available

20

$

$

Not available

21

$

$

Not available

22

Lawn-Boy 38-8580

Washer-Felt

$9.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 3-6916

Washer-Steel

$

$

Not available

24

$1.49

$

In Stock, Qty 6

0

25

$5.49

$

Usually ships in 3-6 days

0

26

$2.49

$

In Stock, only 3 left!

0

27

Lawn-Boy 3296-5

Locknut

$3.49

$

In Stock, Qty 20+

0

28

$0.99

$

In Stock, Qty 20+

0

29

$117.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 38-8430

Cover, Right

$

$

Not available

31

Lawn-Boy 38-8210

Pin, Rotor

$

$

Not available
