38305 - Toro Power Shovel Snow Thrower (SN: 001090101 - 001999999) (1981) ROTOR HOUSING ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

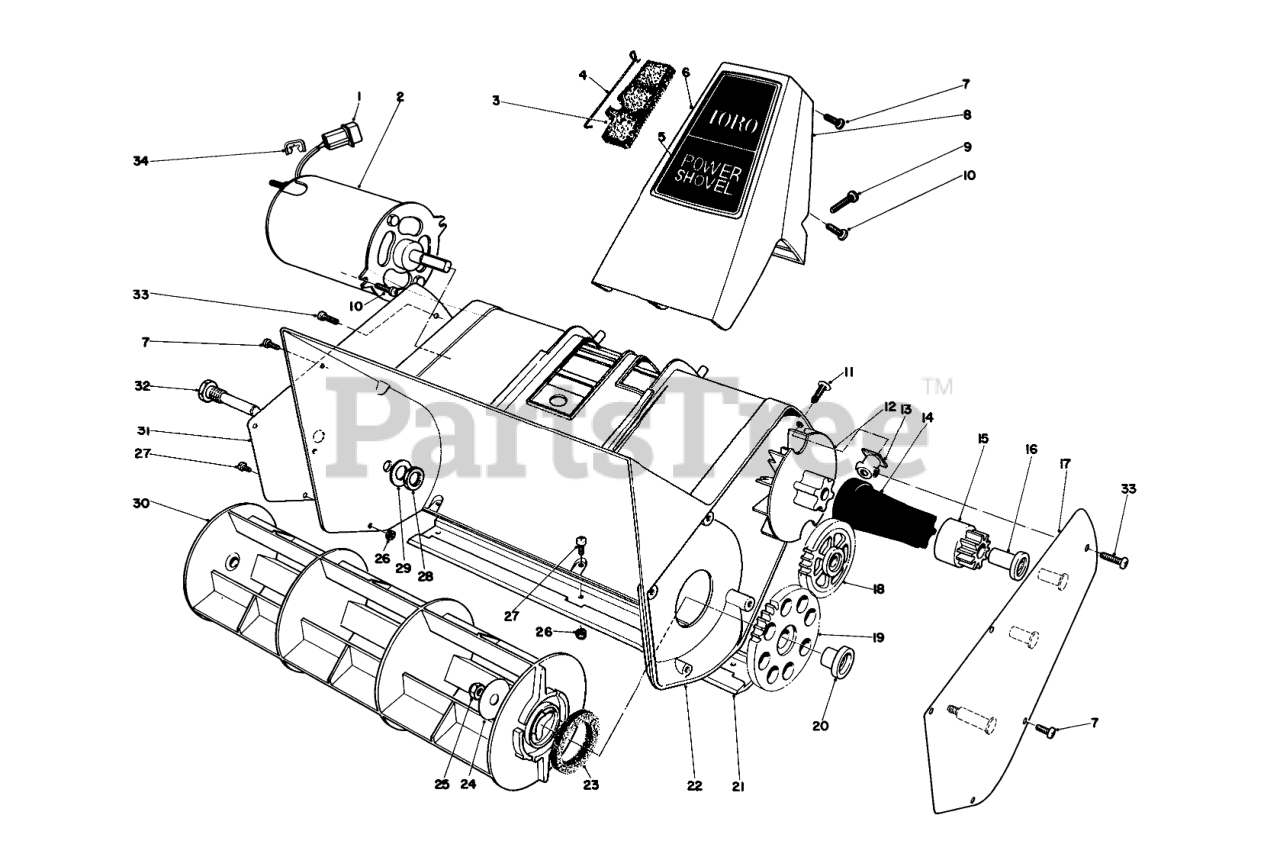

ROTOR HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 218-517

Pin Housing

$

$

Not available

2

Toro 41-9920

Motor
(Superseded to 43-2590)

$

$

Not available

3

Toro 42-0050

FOAM FILTER

$7.49

$

Usually ships in 3-6 days

0

4

Toro 42-2910

RETAINER - FILTER

$

$

Not available

5

Toro 41-9840

HANDLE SUPT DECAL

$

$

Not available

6

Toro 40-9420

Handle Support-Front
(Superseded to 42-2850)

$

$

Not available

7

Toro 32104-118

SCREW-PPH

$

$

Not available

8

Toro 40-9430

Handle Support-Back
(Superseded to 16-9389)

$

$

Not available

9

Toro 3250-20

SCREW-PPH

$6.99

$

In Stock, only 3 left!

0

10

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11

Toro 42-0250

XMAS TREE FASTENER

$

$

Not available

12

Toro 41-9820

FAN, POWER SHOVEL

$37.99

$

In Stock, only 1 left!

0

13

Toro 42-0060

MTG BLOCK

$

$

Not available

14

Toro 38-8570

DRIVE COUPLING

$51.99

$

Usually ships in 3-6 days

0

15

Toro 42-0240

Drive Gear (Incl. Ref. #16)

$

$

Not available

16

Toro 42-0010

BUSHING, DRIVE GEAR

$29.99

$

In Stock, only 1 left!

0

17

Toro 41-9910

Gear Carrier

$

$

Not available

18

Toro 41-9940

Idler Gear

$

$

Not available

19

Toro 42-0230

Rotor Gear Assy. (Incl. Ref. #20)

$

$

Not available

20

Toro 41-9890

BUSHING, ROTOR GEAR

$

$

Not available

21

Toro 41-9830

Scraper
(Superseded to 99-5386)

$32.99

$

In Stock, only 4 left!

0

22

Toro 40-9412

Housing

$

$

Not available

23

Toro 38-8580

FELT WASHER

$9.99

$

Usually ships in 3-6 days

0

24

Toro 42-0070

ROTOR WASHER

$

$

Not available

25

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

26

Toro 3296-54

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

27

Toro 3250-19

SCREW-PPH

$2.49

$

In Stock, only 3 left!

0

28

Toro 32146-21

3/8 24 JAM NUT

$

$

Not available

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 38-8170

ROTOR

$117.99

$

Usually ships in 3-6 days

0

31

Toro 41-9960

RT. SIDE COVER (RAW)

$31.99

$

Usually ships in 3-6 days

0

32

Toro 38-8210

ROTOR PIN

$

$

Not available

33

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

34

Toro 218-524

Strain Relief

$

$

Not available
