38305 C - Toro Power Shovel Snow Thrower (SN: 006000001 - 006999999) (1986) HANDLE ASSEMBLY Parts Diagram

Power Shovel Snow Thrower

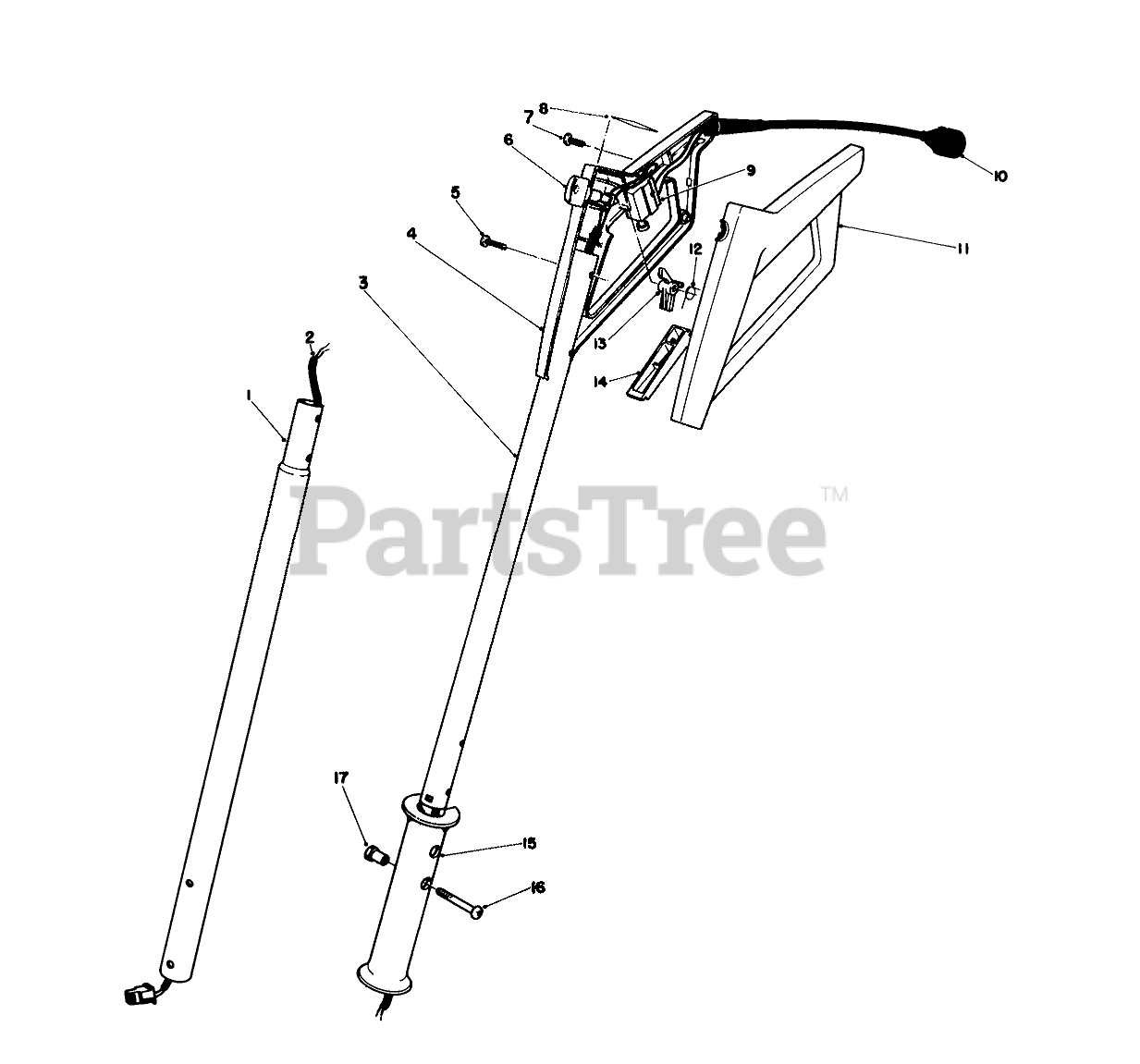

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 41-9850

LOWER TUBE, P. SHOVEL

$

$

Not available

2

Toro 56-6050

Wire Harness
(Superseded to 64-8800)

$

$

Not available

Toro 42-0020

Wire Harness

Note: Not illustrated

$

$

Not available

3

Toro 41-9860

Tube-Upper Handle

$

$

Not available

4

Toro 42-2830

Grip-Control R.H.
(Superseded to 42-2831)

$

$

Not available

5

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

6

Toro 38-8310

KEY

$9.49

$

In Stock, only 1 left!

0

7

Toro 32104-118

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

8

Toro 38-8340

UL GRIP DECAL

$

$

Not available

Toro 42-2890

Decal-Control Grip

Note: Not illustrated

$

$

Not available

9

Toro 36-8340

SWITCH-STARTER

$25.99

$

In Stock, only 4 left!

0

10

Toro 42-0770

Cord-Supply
(Superseded to 42-0775)

$

$

Not available

11

Toro 42-2840

Grip-Control L.H.
(Superseded to 42-0040)

$

$

Not available

12

Toro 38-8330

TORSION SPRING

$

$

Not available

13

Toro 41-9870

LOCKOUT

$8.99

$

Usually ships in 3-6 days

0

14

Toro 42-2870

SWITCH BAR,POWER SHOVEL

$

$

Not available

15

Toro 41-9880

Grip-Handle

$

$

Not available

16

Toro 39-3720

SPEC PAN HD SCREW

$

$

Not available

17

Toro 39-3710

SPECIAL HEX NUT

$

$

Not available
