38303 (1800) - Toro 18" Power Curve Snow Thrower (SN: 323000001 - 323999999) (2023) Frame Assembly Parts Diagram

18" Power Curve Snow Thrower

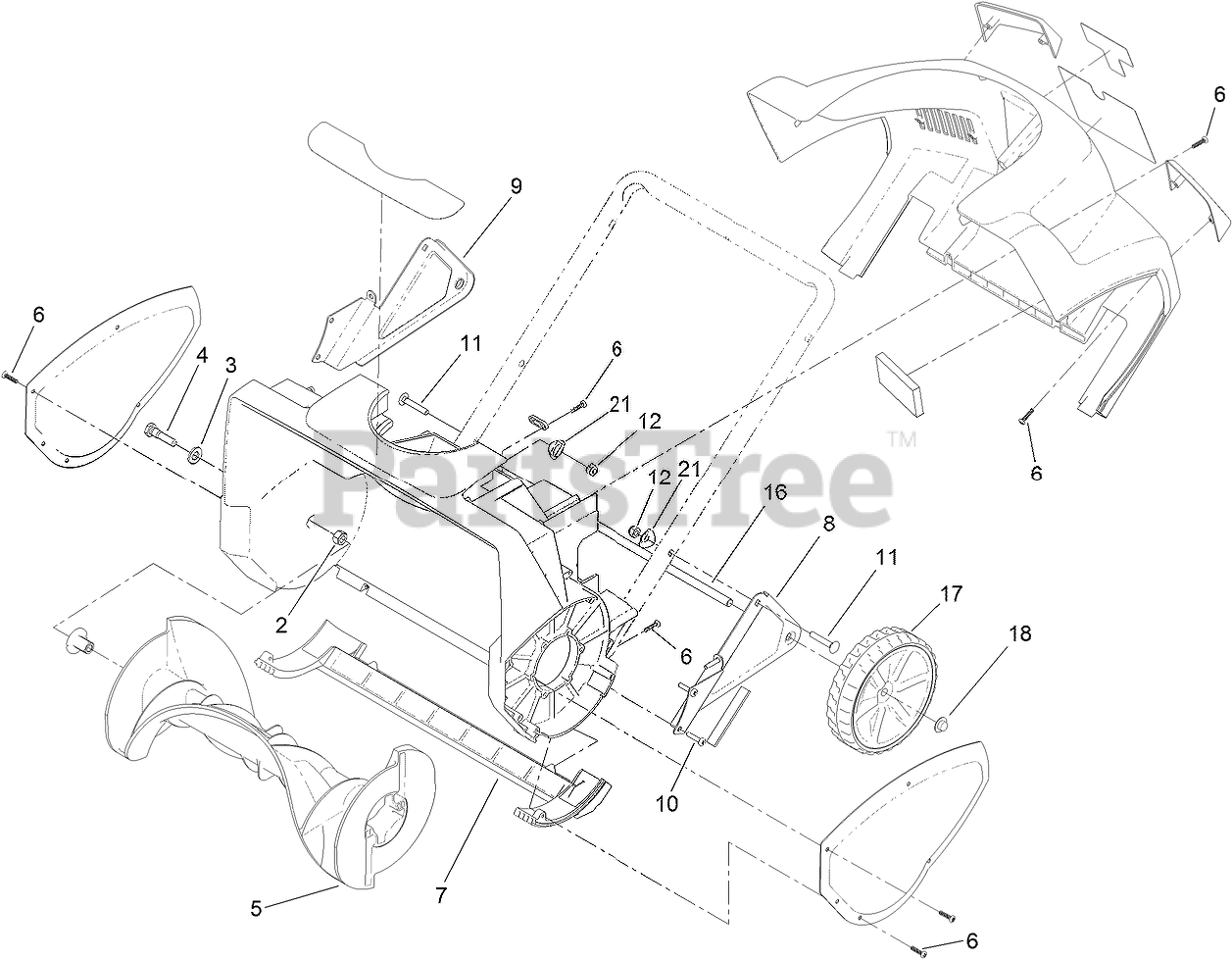

Frame Assembly Parts Diagram

  • Title

2

Toro 137-3118

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

3

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

4

Toro 38-8211

PIN-ROTOR

$6.99

$

Usually ships in 3-6 days

0

5

Toro 117-8775

ROTOR ASM

$45.99

$

In Stock, Qty 5

0

6

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Toro 117-2840

SCRAPER

$23.99

$

In Stock, only 3 left!

0

8

Toro 114-9194-03

BRACKET-WHEEL, LH

$6.99

$

Usually ships in 3-6 days

0

9

Toro 114-9195-03

BRACKET-WHEEL, RH

$11.99

$

Usually ships in 3-6 days

0

10

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11

Toro 137-3011

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

12

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

16

Toro 114-9208-03

AXLE-WHEEL

$11.99

$

Usually ships in 3-6 days

0

17

Toro 117-2306

WHEEL ASM

$26.99

$

In Stock, Qty 14

0

18

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, Qty 20+

0

21

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 8

0
