38303 (1800) - Toro 18" Power Curve Snow Thrower (SN: 318000001 - 318999999) (2018) IDLER AND PULLEY ASSEMBLY Parts Diagram

18" Power Curve Snow Thrower

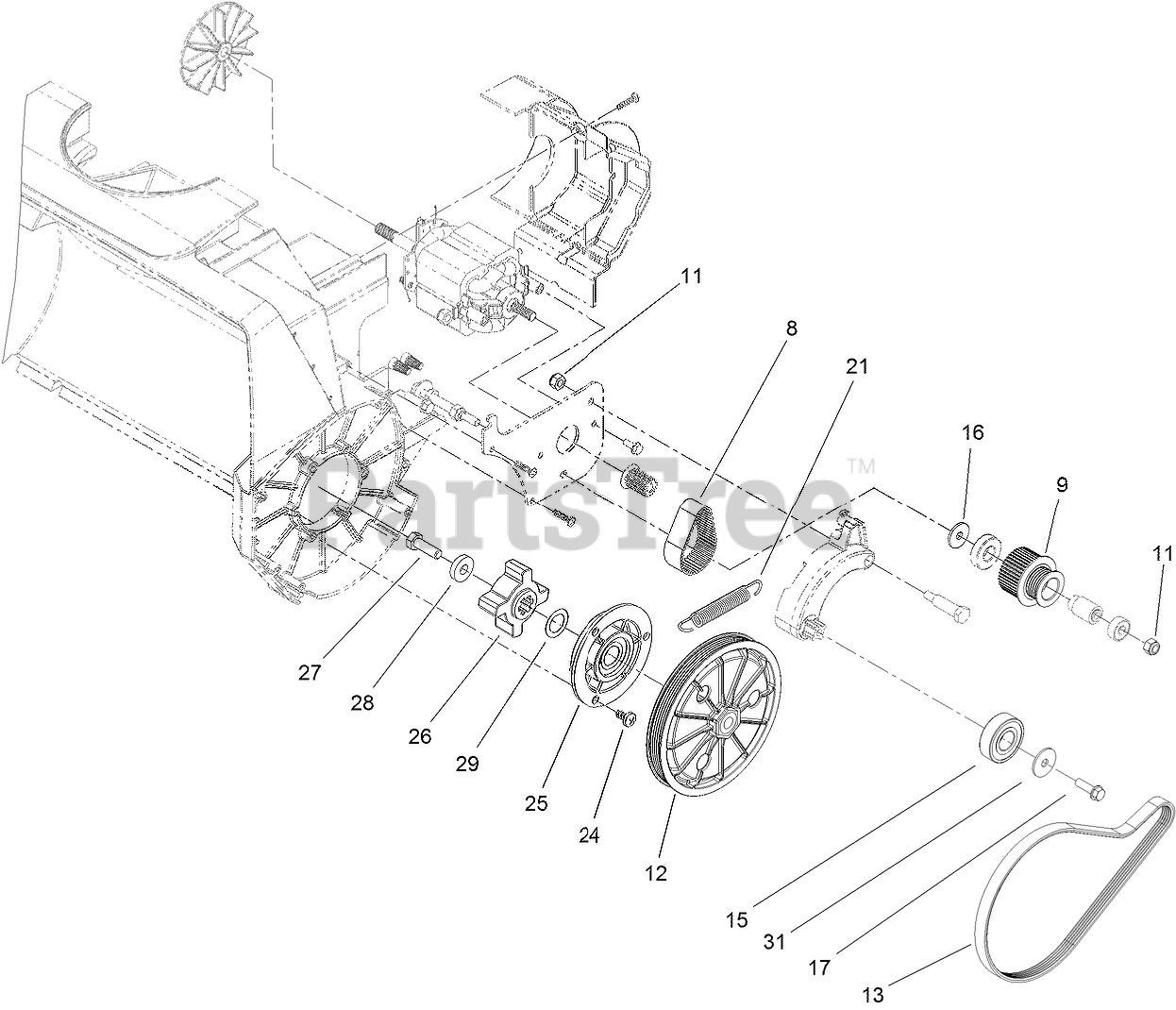

IDLER AND PULLEY ASSEMBLY Parts Diagram

  • Title

8

Toro 73-0160

BELT-PULLEY, IDLER/DRIVER

$33.99

$

In Stock, only 3 left!

0

9

Toro 117-8770

IDLER PULLEY ASM

$45.99

$

Usually ships in 3-6 days

0

11

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0

12

Toro 117-8763

PULLEY ASM

$33.99

$

In Stock, only 1 left!

0

13

Toro 115-1192

BELT-DRIVE

$37.99

$

Usually ships in 3-6 days

0

15

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

16

Toro 137-3106

WASHER-PLAIN

$3.99

$

Usually ships in 3-6 days

0

17

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 117-2804

SPRING-IDLER

$4.99

$

Usually ships in 3-6 days

0

24

Toro 105-6968

SCREW-SEAT, SWITCH

$3.99

$

Usually ships in 3-6 days

0

25

Toro 117-2887

PILLOW BLOCK ASM

$19.99

$

Usually ships in 3-6 days

0

26

Toro 117-8762

COUPLER-PULLEY

$5.49

$

Usually ships in 3-6 days

0

27

Toro 117-2888

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

28

Toro 27-9560

SPACER

$5.49

$

Usually ships in 3-6 days

0

29

Toro 137-3120

WASHER-PLAIN

$4.99

$

Usually ships in 3-6 days

0

31

Toro 114-9049

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0
