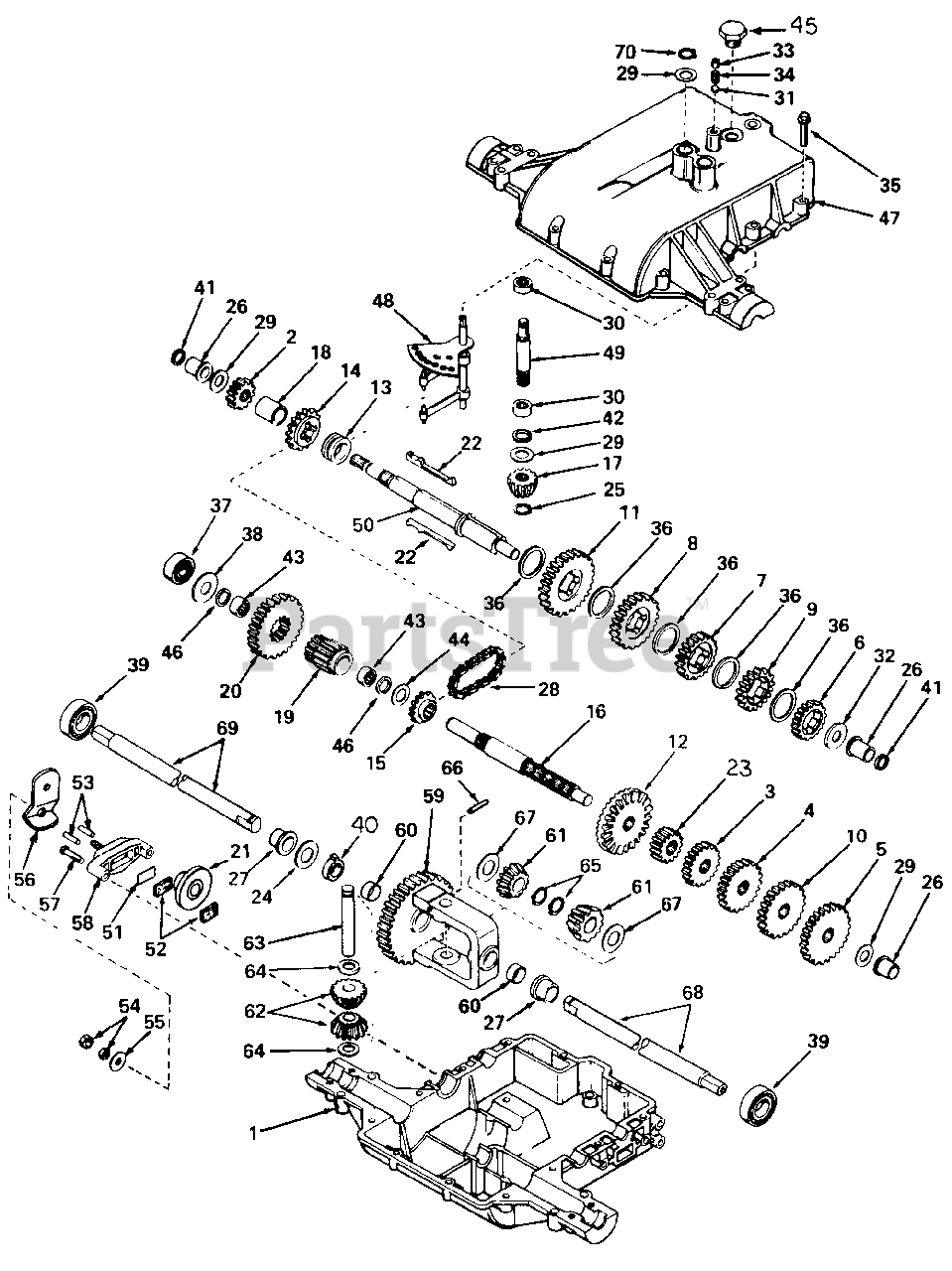

383 (0350033U) - Cub Cadet Lawn Tractor Transaxle-Gear Drive-S/N 70001 & Up Parts Diagram

Lawn Tractor

Transaxle-Gear Drive-S/N 70001 & Up Parts Diagram

  • Title

Cub Cadet 717-3029

Transaxle Assy

$

$

Not available

1

Cub Cadet TC-770071A

Case, Transaxle

$

$

Not available

2

Cub Cadet TC-778136

Gear, Spur -15T

$24.99

$

In Stock, only 1 left!

0

3

Cub Cadet TC-778126A

Gear, Spur -20T

$48.99

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-778127A

Gear, Spur -25T

$53.99

$

In Stock, only 3 left!

0

5

Cub Cadet TC-778129A

Gear, Spur -30T

$37.99

$

In Stock, only 1 left!

0

6

Cub Cadet TC-778121A

Gear, Spur -20T

$46.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-778123A

Gear, Spur -25T

$48.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-778124A

Gear, Spur -30T

$34.99

$

In Stock, only 3 left!

0

9

Cub Cadet TC-778122A

Gear, Spur -22T

$39.99

$

Usually ships in 3-12 days

0

10

Cub Cadet TC-778128A

Gear, Spur -28T

$40.99

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-778146A

Gear, Spur -37T
(Superseded to TC-778207A)

$63.99

$

In Stock, only 2 left!

0

12

Cub Cadet TC-778137A

Gear, Bevel -42T

$54.99

$

Usually ships in 3-12 days

0

13

Cub Cadet TC-784266

Collar

$11.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-786083

Sprocket -18T

$20.99

$

In Stock, only 1 left!

0

15

Cub Cadet TC-786082

Sprocket -9T

$15.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-776204

Shaft, Counter

$79.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-778113A

Pinion, Input Bevel

$34.99

$

In Stock, only 1 left!

0

18

Cub Cadet TC-786074

Spacer

$8.49

$

In Stock, only 1 left!

0

19

Cub Cadet TC-778138

Pinion, Output

$54.99

$

Usually ships in 3-12 days

0

20

Cub Cadet TC-778139

Gear, Output

$42.99

$

Usually ships in 3-12 days

0

21

Cub Cadet TC-790003

Disc, Brake

$20.99

$

Usually ships in 3-12 days

0

22

Cub Cadet TC-792089A

Key
(Superseded to TC-792089B)

$35.99

$

Usually ships in 3-12 days

0

23

Cub Cadet TC-778145

Gear, Spur -12T

$18.99

$

Usually ships in 3-12 days

0

24

Cub Cadet TC-780001

Washer

Note: (Replaces IH-106636-C1)

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet TC-788040

Ring, .521 Ext Ret

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet TC-780105A

Bushing

$8.49

$

In Stock, Qty 10

0

27

Cub Cadet TC-780118A

Bushing

$8.49

$

Usually ships in 3-12 days

0

28

Chain, Roller

Note: (Use 24 Links of No. 41 Chain)

$

$

Not available

29

Cub Cadet TC-780072

Washer, Thrust

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet IH-106640-C91

Bearing, Needle
(Superseded to 941-0478)

$

$

Not available

31

Cub Cadet TC-792077

Ball, 5/16 Grade 200 Metal
(Superseded to TC-792077A)

$4.49

$

In Stock, only 4 left!

0

32

Cub Cadet TC-780109

Washer, Thrust

$4.49

$

Usually ships in 3-12 days

0

33

Cub Cadet TC-792078

Screw, 3/8 X 3/8 Znp F/Pt Hdl/Hs Set

$4.49

$

In Stock, only 1 left!

0

34

Cub Cadet TC-792079

Spring

$4.49

$

In Stock, only 1 left!

0

35

Cub Cadet TC-792073

Screw, 1/4 X 1-1/4 H/Hd Tap
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

36

Cub Cadet TC-780108

Washer, Thrust

$4.49

$

In Stock, Qty 9

0

37

Cub Cadet TC-780121

Bearing, Ball

$36.99

$

In Stock, only 1 left!

0

38

Cub Cadet TC-780113

Washer, Flat

$12.99

$

In Stock, only 1 left!

0

39

Cub Cadet TC-780119

Bearing, Ball
(Superseded to HG-44121P)

$56.99

$

In Stock, only 2 left!

0

40

Cub Cadet TC-780120

Bushing

$6.49

$

In Stock, only 3 left!

0

41

Cub Cadet TC-788051

Ring, Sq Cut
(Superseded to TC-788051A)

$4.49

$

In Stock, Qty 10

0

42

Cub Cadet TC-788057

Ring, Sq Cut

$4.49

$

In Stock, Qty 5

0

43

Cub Cadet IH-80289-C91

Bearing, Needle
(Superseded to TC-780112)

$21.99

$

Usually ships in 3-12 days

0

44

Cub Cadet TC-780114

Washer, Flat

$4.49

$

In Stock, only 1 left!

0

45

Cub Cadet TC-792074

Plug, Hex Hd

$22.99

$

Usually ships in 3-12 days

0

46

Cub Cadet TC-788053

Seal

$4.49

$

Usually ships in 3-12 days

0

47

Cub Cadet TC-772082

Cover, Transaxle

$

$

Not available

48

Cub Cadet TC-784290

Rod & Fork Assy

$93.99

$

Usually ships in 3-12 days

0

49

Cub Cadet TC-776140

Shaft, Input

$29.99

$

Usually ships in 3-12 days

0

50

Cub Cadet TC-776183A

Shaft, Brake

$

$

Not available

51

Cub Cadet TC-790007

Plate, Brake Pad

$5.99

$

In Stock, only 1 left!

0

52

Cub Cadet TC-790006

Pad, Brake
(Superseded to TC-799021A)

$10.99

$

In Stock, only 1 left!

0

53

Cub Cadet TC-786026

Pin, Dowel

$4.49

$

Usually ships in 3-12 days

0

54

Cub Cadet 712-0237

Nut, 5/16-NF Cad P/T Lock Type 5

$4.99

$

In Stock, only 4 left!

0

55

Cub Cadet 736-3078

Washer, .344 X 1.000 X .098 Phc Hdn

$4.49

$

In Stock, only 4 left!

0

56

Cub Cadet TC-790028

Lever, Brake

$

$

Not available

57

Cub Cadet TC-792073

Screw, 1/4 X 1-1/4 H/Hd Tap
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

58

Cub Cadet TC-790005

Holder, Brake Pad
(Superseded to TC-790025)

$17.99

$

Usually ships in 3-12 days

0

59

Cub Cadet TC-778175

Gear Assy, Diff

Note: (Includes Ref No. 60)

$

$

Not available

60

Cub Cadet TC-780064

Bushing

$6.49

$

In Stock, Qty 7

0

61

Cub Cadet TC-778067

Gear, Bevel

$

$

Not available

62

Cub Cadet TC-778068

Pinion, Bevel
(Superseded to TC-778131)

$39.99

$

In Stock, Qty 6

0

63

Cub Cadet TC-786034

Pin, Drive

$13.99

$

Usually ships in 3-12 days

0

64

Cub Cadet TC-780065

Washer, Thrust

$4.49

$

In Stock, Qty 6

0

65

Cub Cadet 716-3001

Ring, .689 Hvy Ext Ret

$4.99

$

In Stock, only 1 left!

0

66

Cub Cadet TC-792040

Pin, 3/16 X 1-1/2 Pln Slt Spr

$4.49

$

Usually ships in 3-12 days

0

67

Cub Cadet TC-780001

Washer, Thrust

Note: (Replaces IH-106636-C1)

$4.49

$

In Stock, only 4 left!

0

68

Cub Cadet TC-774436

Axle, 15-1/4 In. Long

$

$

Not available

69

Cub Cadet TC-774435

Axle, 13-3/8 In. Long

$

$

Not available

70

Cub Cadet 716-0115

Ring, .625 Ext Ret
(Superseded to 916-0115)

$

$

Not available
