38283 - Toro 18" CCR Powerlite Snow Thrower (SN: 313000001 - 313999999) (2013) ENGINE ASSEMBLY NO. 1 Parts Diagram

18" CCR Powerlite Snow Thrower

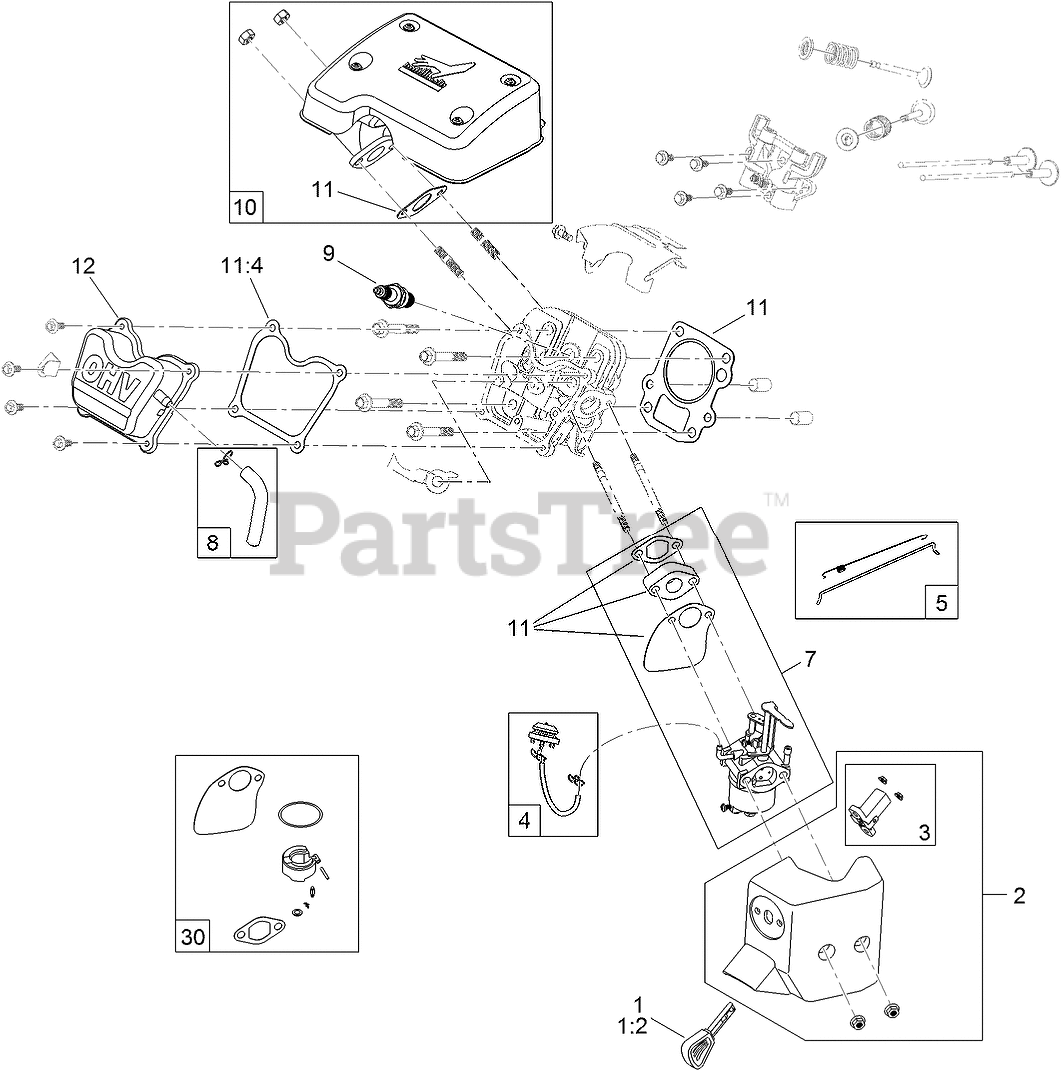

ENGINE ASSEMBLY NO. 1 Parts Diagram

  • Title

1

Toro 119-1929

KEY AND LANYARD KIT

$11.99

$

Usually ships in 3-6 days

0

1:2

Toro 117-7728

KEY

$4.49

$

In Stock, Qty 20+

0

2

Toro 119-1982

HEATER BOX KIT

$46.99

$

Usually ships in 3-6 days

0

3

Toro 119-1932

SWITCH KIT

$14.99

$

Usually ships in 3-6 days

0

4

Toro 119-1981

PRIMER BULB KIT

$35.99

$

In Stock, only 2 left!

0

5

Toro 121-0489

GOVERNOR KIT

$28.99

$

Usually ships in 3-6 days

0

7

Toro 119-1980

COMPLETE CARB SERVICE KIT

$84.99

$

Usually ships in 3-6 days

0

8

Toro 119-1921

BREATHER TUBE KIT
(Superseded to 139-0630)

$3.49

$

In Stock, only 1 left!

0

9

Toro 119-1961

SPARK PLUG
(Superseded to 121-4199)

$4.49

$

In Stock, Qty 13

0

10

Toro 119-1938

MUFFLER KIT
(Superseded to 133-9822)

$85.99

$

Usually ships in 3-6 days

0

11

Toro 119-1939

GASKET, SEAL AND O-RING KIT

$82.99

$

Usually ships in 3-6 days

0

11:4

Toro 121-0110

GASKET-COVER, VALVE

$12.99

$

In Stock, only 2 left!

0

12

Toro 121-0466

VALVE COVER ASM

$20.99

$

Usually ships in 3-6 days

0

30

Toro 119-1988

CARB FLOAT AND NEEDLE KIT

$23.99

$

Usually ships in 3-6 days

0
