38282 (180) - Toro 18" Power Clear Snow Thrower (SN: 310006957 - 310021428) (2010) ENGINE ASSEMBLY Parts Diagram

18" Power Clear Snow Thrower

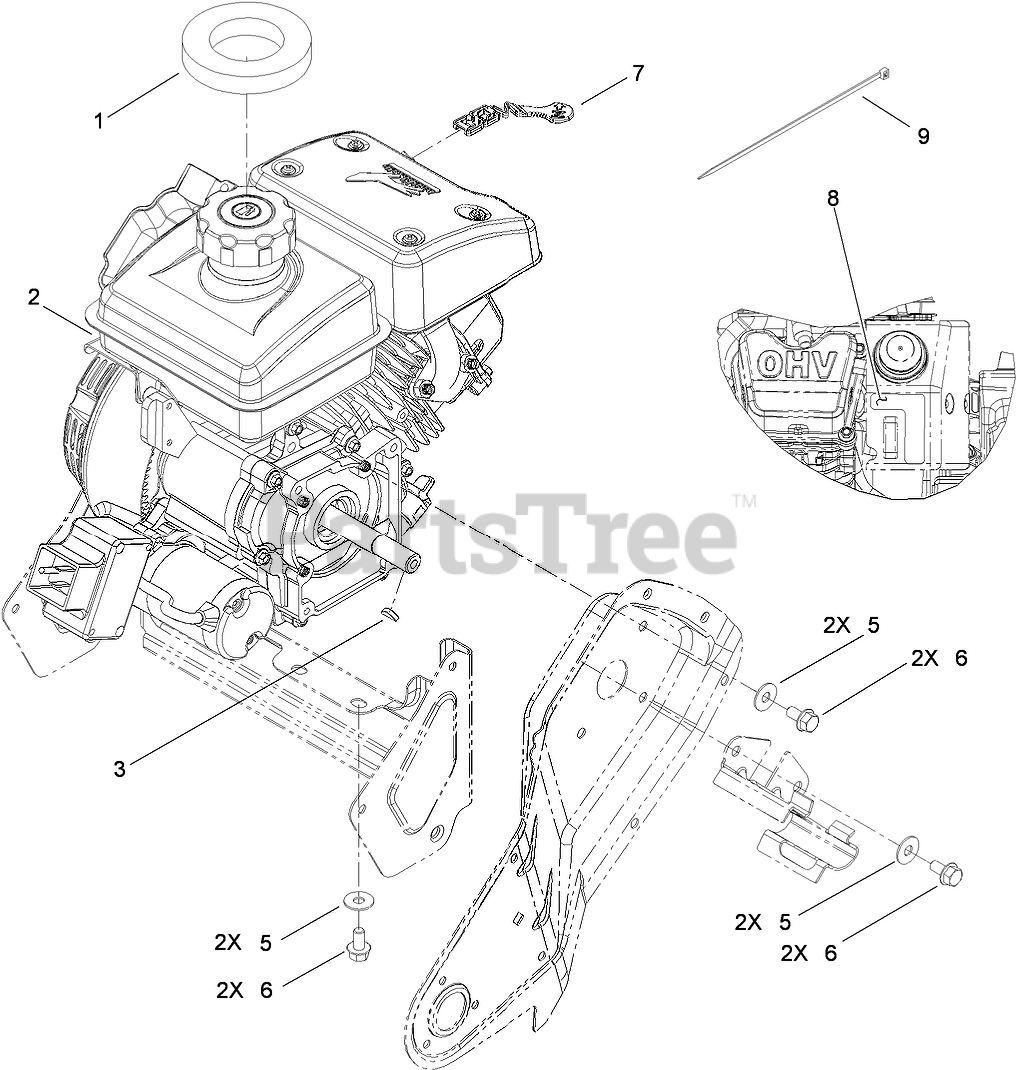

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 117-7723

SEAL-TANK

$3.49

$

In Stock, only 1 left!

0

2

Toro 119-1919

ENGINE-ELECTRIC START

$

$

Not available

3

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

5

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

6

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

7

Toro 117-7727

LEVER-CHOKE
(Superseded to 133-9975)

$4.99

$

In Stock, Qty 15

0

8

Toro 117-7741

DECAL-CONTROL, ENGINE

$3.49

$

Usually ships in 3-6 days

0

9

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
