38274 - Toro 18" CCR Powerlite Snow Thrower (SN: 406294000 - 406319999) Main Frame Assembly Parts Diagram

18" CCR Powerlite Snow Thrower

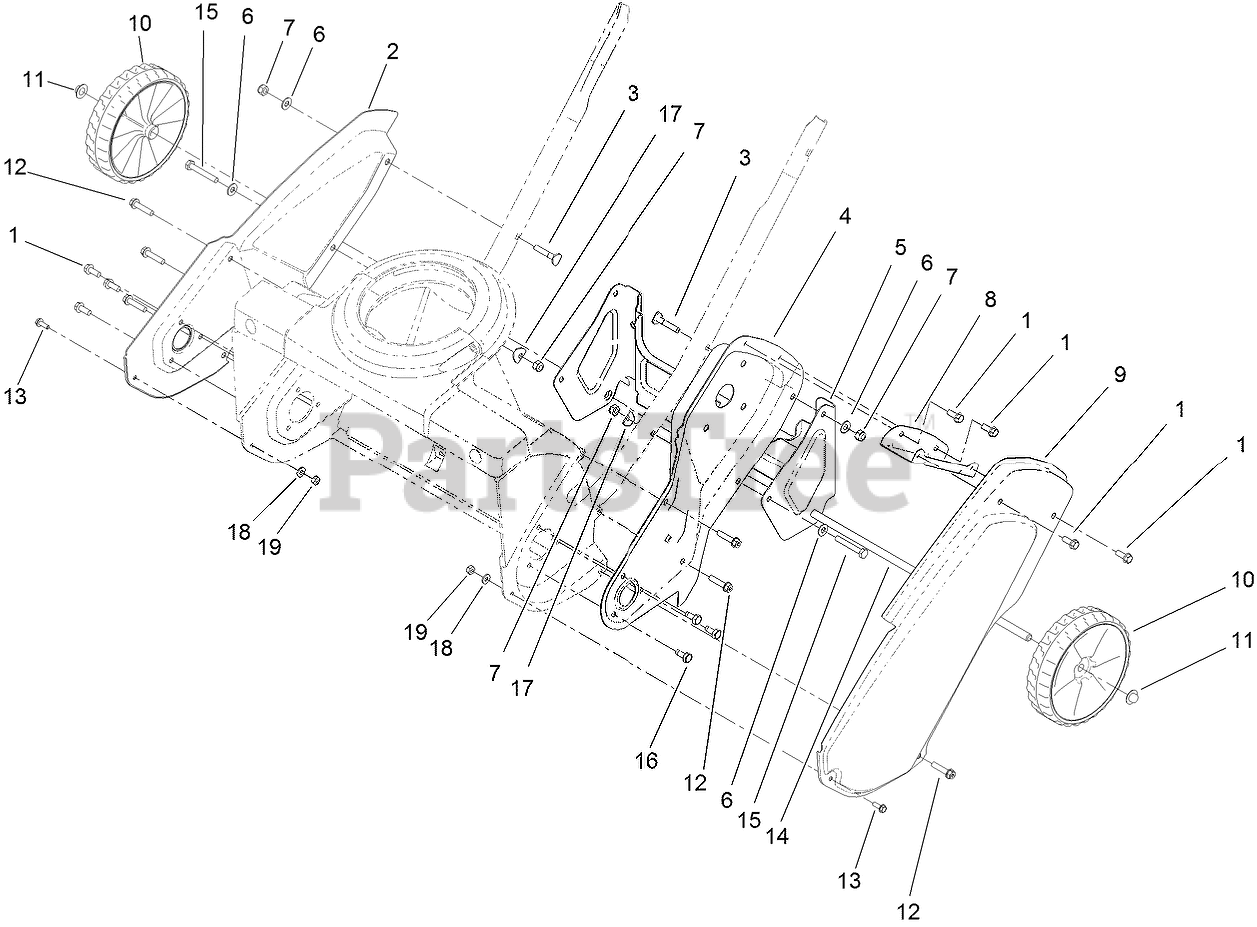

Main Frame Assembly Parts Diagram

  • Title

1

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

2

Toro 117-7704-03

SIDEPLATE-RH

$27.99

$

Usually ships in 3-6 days

0

3

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 11

0

4

Toro 117-2349-03

SIDEPLATE-LH

$27.99

$

Usually ships in 3-6 days

0

5

Toro 117-7702-03

BRACKET-WHEEL

$25.99

$

Usually ships in 3-6 days

0

6

Toro 137-3072

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

7

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

8

Toro 117-2334-03

BRACKET-COVER, BELT

$11.99

$

Usually ships in 3-6 days

0

9

Toro 117-7703-03

COVER-BELT

$25.99

$

In Stock, only 4 left!

0

10

Toro 117-2306

WHEEL ASM

$26.99

$

In Stock, Qty 14

0

11

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, Qty 20+

0

12

Toro 137-3101

SCREW-PLASTIC,HWH

$1.49

$

In Stock, Qty 20+

0

13

Toro 137-3030

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 136-7139

AXLE

$10.99

$

Usually ships in 3-6 days

0

15

Toro 137-3048

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

16

Toro 114-9291

SCREW-HH, TAPTITE

$1.99

$

Usually ships in 3-6 days

0

17

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

18

Toro 137-3073

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

19

Toro 137-3085

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0
