38273 - Toro 18" CCR Powerlite Snow Thrower (SN: 312000001 - 312999999) (2012) BELT AND DRIVE ASSEMBLY Parts Diagram

18" CCR Powerlite Snow Thrower

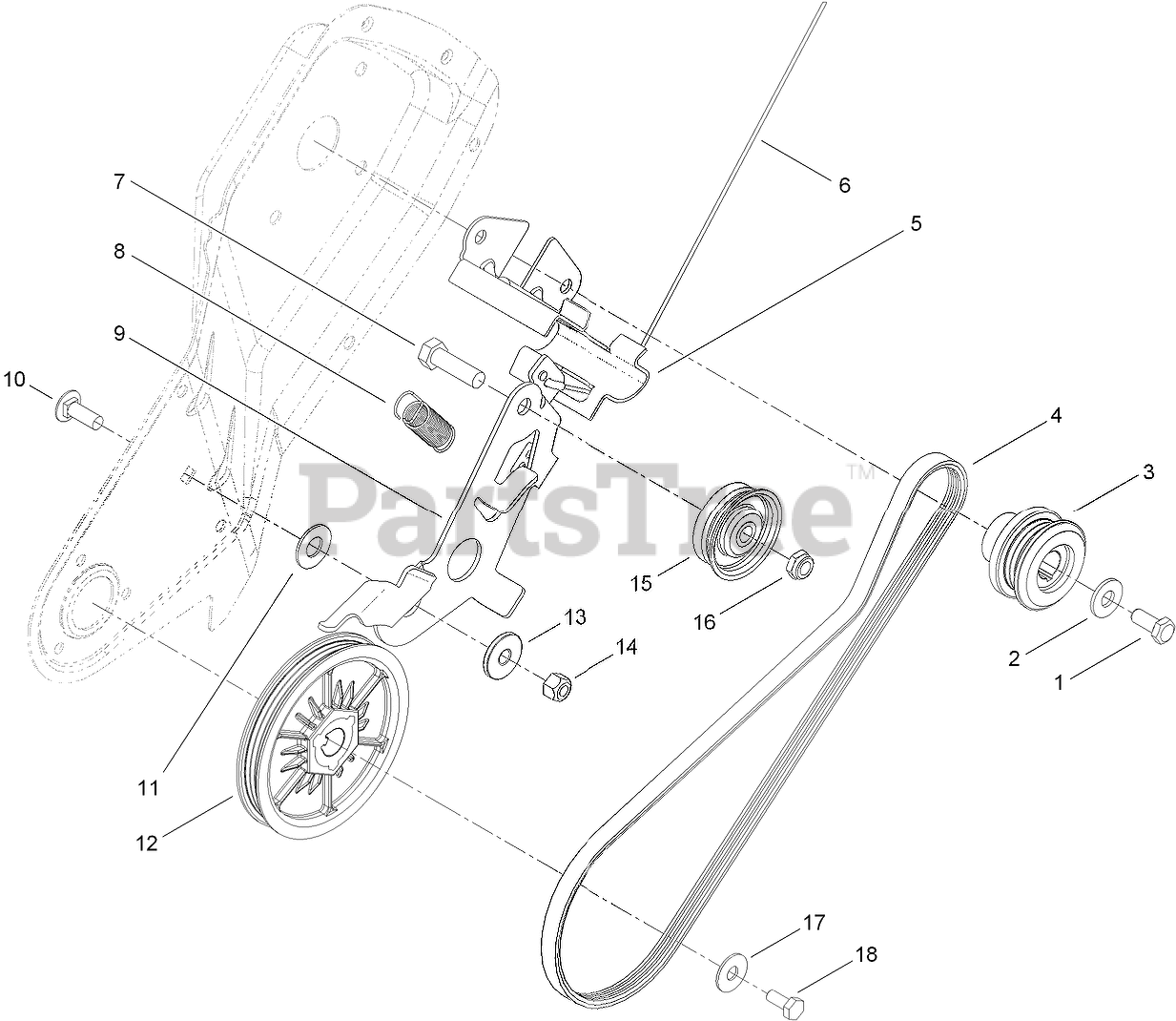

BELT AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3235-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

2

Toro 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

3

Toro 117-7734

PULLEY-ENGINE

$54.99

$

Usually ships in 3-6 days

0

4

Toro 117-7733

BELT-V, RIBBED

$17.99

$

In Stock, Qty 5

0

5

Toro 119-2907

GUIDE-BELT

$11.99

$

In Stock, only 1 left!

0

6

Toro 117-7721

CABLE-CLUTCH

$26.99

$

Usually ships in 3-6 days

0

7

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

8

Toro 117-7715

SPRING-BRAKE

$5.49

$

In Stock, only 1 left!

0

9

Toro 117-7735

ARM-IDLER

$18.99

$

In Stock, only 1 left!

0

10

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

11

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

12

Toro 117-7732

ROTOR PULLEY ASM

$33.99

$

Usually ships in 3-6 days

0

13

Toro 117-7711

BUSHING-IDLER

$2.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 117-9105

PULLEY-IDLER

$36.99

$

Usually ships in 3-6 days

0

16

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

17

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

18

Toro 110-9381

SCREW-HH

$1.99

$

In Stock, only 3 left!

0
