38273 - Toro 18" CCR Powerlite Snow Thrower (SN: 311003001 - 311999999) (2011) RECOIL ENGINE COMPONENT ASSEMBLY 119-1974 Parts Diagram

18" CCR Powerlite Snow Thrower

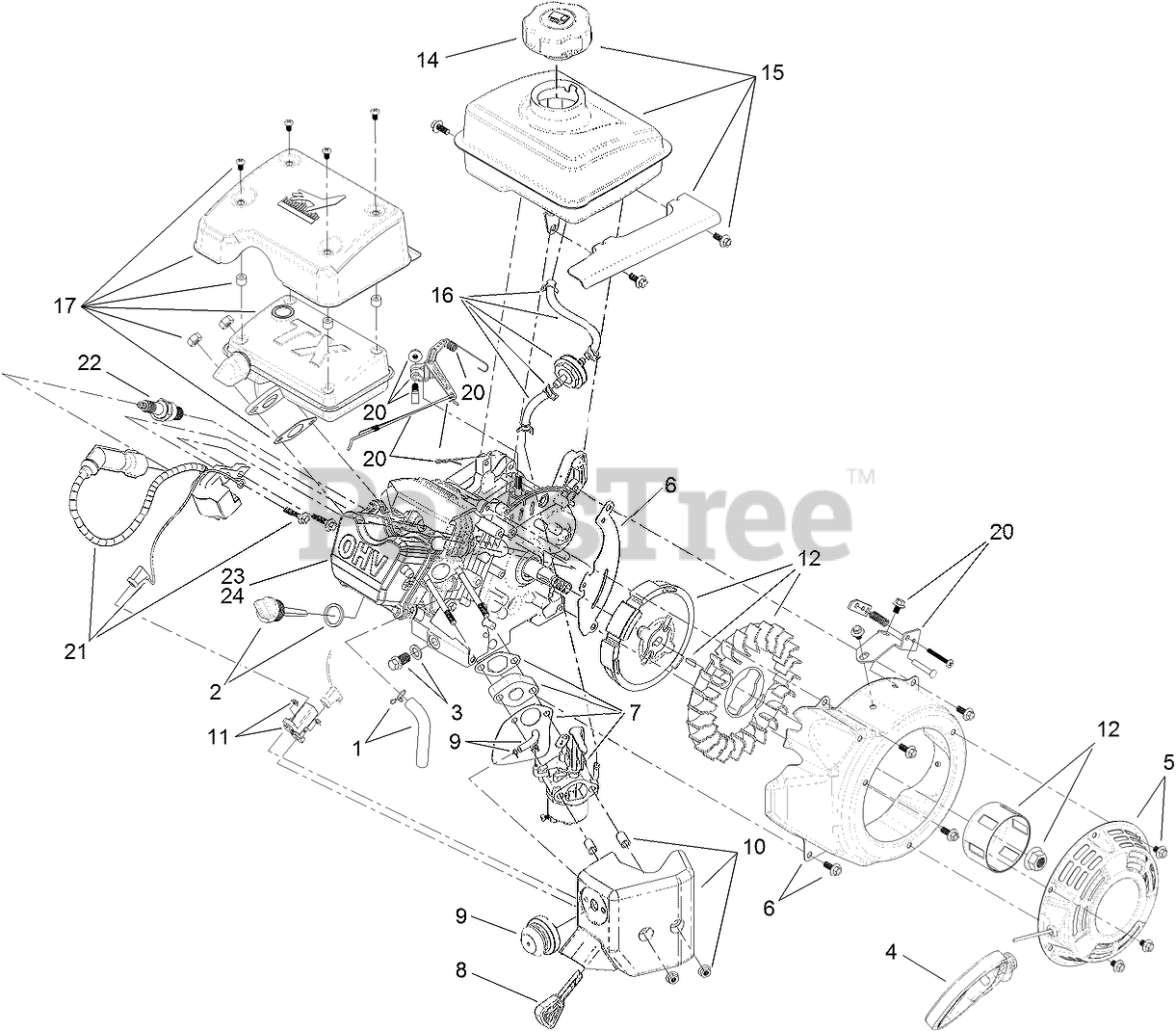

RECOIL ENGINE COMPONENT ASSEMBLY 119-1974 Parts Diagram

  • Title

1

Toro 119-1921

BREATHER TUBE KIT
(Superseded to 139-0630)

$3.99

$

Usually ships in 3-6 days

0

2

Toro 119-1922

DIPSTICK AND O-RING KIT

$12.99

$

In Stock, only 3 left!

0

3

Toro 119-1923

DRAIN PLUG KIT

$8.49

$

In Stock, only 2 left!

0

4

Toro 119-1924

MITTEN GRIP KIT

$14.99

$

Usually ships in 3-6 days

0

5

Toro 119-1925

RECOIL ASM KIT

$101.99

$

Usually ships in 3-6 days

0

6

Toro 119-1927

BLOWER SHROUD KIT

$60.99

$

Usually ships in 3-6 days

0

7

Toro 119-1980

COMPLETE CARB SERVICE KIT

$88.99

$

In Stock, only 2 left!

0

7

Toro 119-1988

CARB FLOAT AND NEEDLE KIT

Note: Not illustrated

$25.99

$

Usually ships in 3-6 days

0

8

Toro 119-1929

KEY AND LANYARD KIT

$12.99

$

In Stock, only 2 left!

0

9

Toro 119-1981

PRIMER BULB KIT

$37.99

$

In Stock, only 3 left!

0

10

Toro 119-1982

HEATER BOX KIT

$49.99

$

Usually ships in 3-6 days

0

11

Toro 119-1932

SWITCH KIT

$15.99

$

Usually ships in 3-6 days

0

12

Toro 119-1962

FLYWHEEL AND FAN KIT

$107.99

$

Usually ships in 3-6 days

0

14

Toro 119-1984

FUEL CAP ASM KIT
(Superseded to 133-9823)

$20.99

$

In Stock, only 2 left!

0

15

Toro 119-1985

FUEL TANK, CAP AND HARDWARE KIT
(Superseded to 127-9368)

$115.99

$

In Stock, only 2 left!

0

16

Toro 119-1937

FUEL LINE, FILTER AND CLAMP KIT
(Superseded to 121-0487)

$47.99

$

In Stock, only 2 left!

0

17

Toro 119-1938

MUFFLER KIT
(Superseded to 133-9822)

$90.99

$

In Stock, only 2 left!

0

18

Toro 119-1939

GASKET, SEAL AND O-RING KIT

Note: Not illustrated

$86.99

$

Usually ships in 3-6 days

0

20

Toro 119-1987

GOVERNOR ARM, SPRING, LINK, HARDWARE KIT
(Superseded to 121-0489)

$29.99

$

Usually ships in 3-6 days

0

21

Toro 119-1960

IGNITION KIT
(Superseded to 136-7772)

$90.99

$

In Stock, only 1 left!

0

22

Toro 119-1961

SPARK PLUG
(Superseded to 121-4199)

$3.99

$

In Stock, Qty 20+

0

23

Toro 121-0110

GASKET-COVER, VALVE

$13.99

$

In Stock, only 2 left!

0

24

Toro 121-0466

VALVE COVER ASM

$21.99

$

Usually ships in 3-6 days

0
