38252 (S-200) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) SHROUD & HANDLE ASSEMBLY (MODEL 38242) Parts Diagram

Snow Thrower

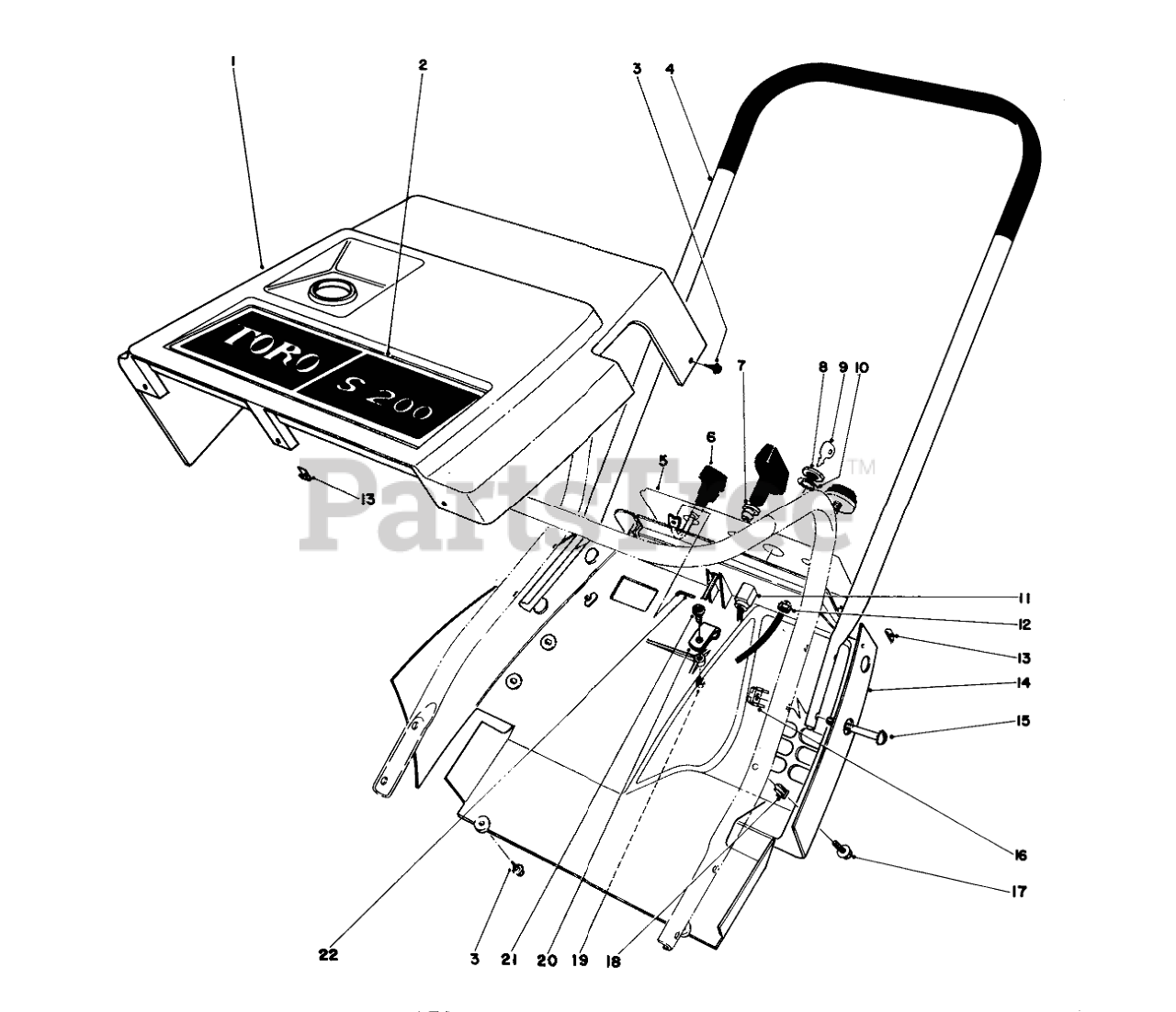

SHROUD & HANDLE ASSEMBLY (MODEL 38242) Parts Diagram

  • Title

1

Toro 39-0890

Shroud-Upper
(Superseded to 92-6030)

$

$

Not available

2

Toro 39-3290

TORO DECAL

$26.99

$

Usually ships in 3-6 days

0

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 234260

Upper Handle

$

$

Currently unavailable

5

Toro 42-0730

Decal-Control Panel

$

$

Not available

6

Toro 39-0560

CHOKE CONTROL ASM

$36.99

$

Usually ships in 3-6 days

0

7

Toro 23-7470

GUIDE-ROPE, STARTER

$20.99

$

Usually ships in 3-6 days

0

8

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

9

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

10

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

11

Toro 39-4650

SWITCH

$

$

Not available

12

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

13

Toro 3290-171

NUT-TYPE J

$5.99

$

In Stock, only 3 left!

0

14

Toro 39-0870

Lower Shroud
(Superseded to 99-3238)

$

$

Not available

15

Toro 32140-100

Sems Mach. Screw
(Superseded to 108-7301)

$1.99

$

Usually ships in 3-6 days

0

16

Toro 3290-225

TINNERMAN NUT

$8.99

$

In Stock, only 4 left!

0

17

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 7

0

18

Toro 3290-420

Push Nut
(Superseded to 3290-486)

$1.49

$

In Stock, Qty 8

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 2412-65

CABLE CLAMP

$

$

Not available

21

Toro 32105-2

SCREW-SHWH

$3.99

$

Usually ships in 3-6 days

0

22

Toro 39-8180

CONTROL WIRE

$54.99

$

Usually ships in 3-6 days

0
