38250 (421) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

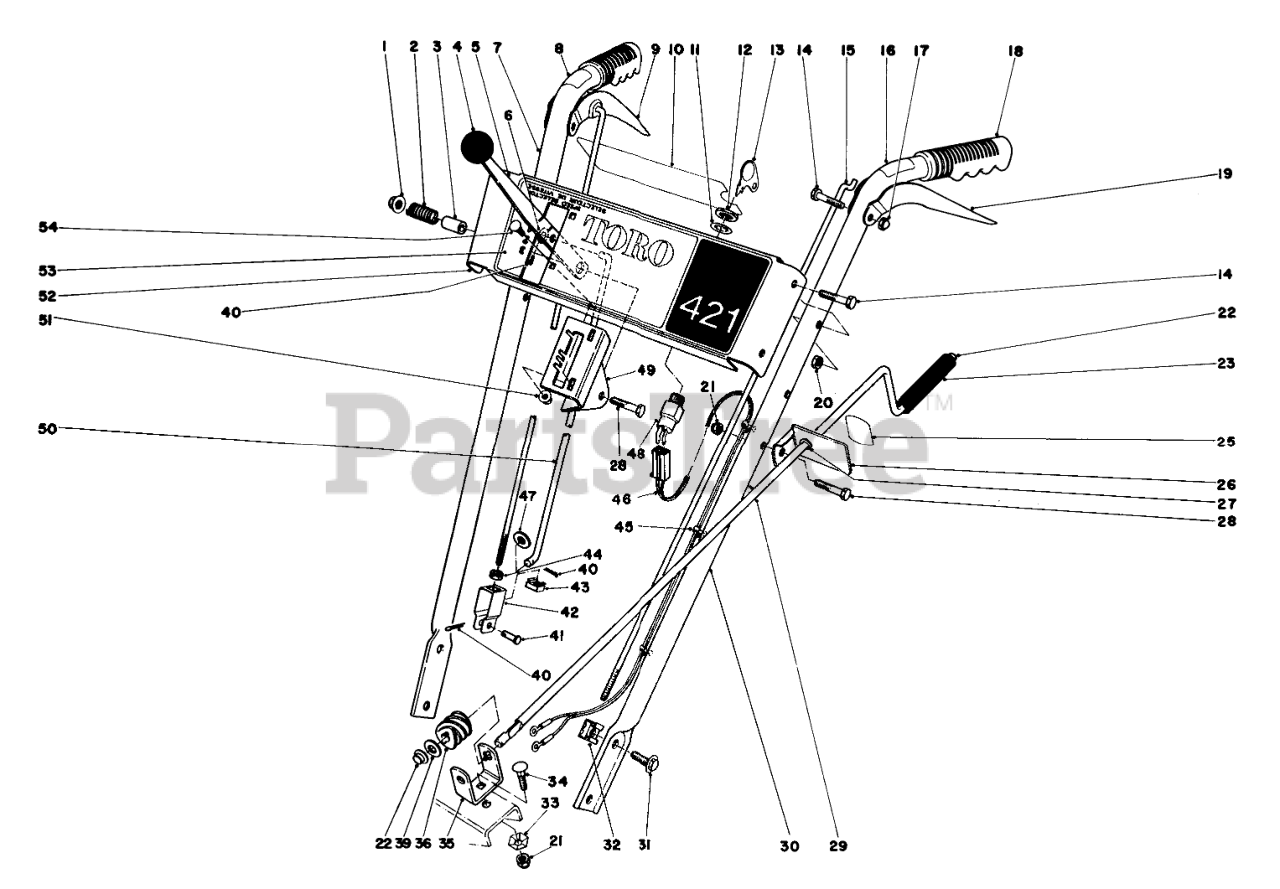

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

2

Toro 37-9150

SPRING

$10.99

$

In Stock, only 1 left!

0

3

Toro 40-8130

SPACER

$10.99

$

In Stock, only 1 left!

0

4

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

5

Toro 37-8820

SPEED SELECTOR B
(Superseded to 37-8820-03)

$

$

Not available

6

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 37-8710

Handle Ring

$

$

Not available

8

Toro 39-1130

Decal-Auger Drive

$

$

Not available

9

Toro 39-4810

Lever-Auger Control
(Superseded to 99-3243)

$

$

Not available

10

Toro 37-9140

Decal-Escutcheon Back

$

$

Not available

11

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

12

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

13

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

14

Toro 321-37

SCREW-HH

$11.99

$

In Stock, only 2 left!

0

15

Toro 39-3070

Link Upper
(Superseded to 99-3242)

$191.99

$

Usually ships in 3-6 days

0

16

Toro 39-1140

Decal-Wheel Drive

$

$

Not available

17

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

18

Toro 37-9110

Grip
(Superseded to 74-1360)

$

$

Not available

19

Toro 39-4820

Lever-Traction Control
(Superseded to 47-4960-03)

$95.99

$

Usually ships in 3-6 days

0

20

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

23

Toro 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

25

Toro 29-6370

CHUTE DECAL

$

$

Not available

26

Toro 6-3069

Bracket-Chute Control Mtg. (Incl. Ref. #25 & 27)
(Superseded to 12-7739)

$

$

Not available

27

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 9

0

28

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 40-8270

ROD-CONTROL, CHUTE

$161.99

$

Usually ships in 3-6 days

0

30

Toro 37-8720

Handle Left

$

$

Not available

31

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

32

Toro 3290-196

NUT

$9.99

$

Usually ships in 3-6 days

0

33

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

34

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

35

Toro 40-8280

BRACKET-WORM

$18.99

$

In Stock, only 1 left!

0

36

Toro 40-8250

GEAR-WORM, CHUTE

$15.99

$

Usually ships in 3-6 days

0

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

40

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

41

Toro 283-3

PIN-CLEVIS

$0.99

$

In Stock, only 1 left!

0

42

Toro 39-3080

CLEVIS

$14.99

$

Usually ships in 3-6 days

0

43

Toro 32115-5

NUT-RETAINED

$7.49

$

Usually ships in 3-6 days

0

44

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

45

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

46

Toro 37-8980

WIRE HARNESS

$34.99

$

Usually ships in 3-6 days

0

47

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

48

Toro 25-6420

Switch
(Superseded to 29-5560)

$17.99

$

In Stock, only 2 left!

0

49

Toro 39-1280

Mount-Speed Selector
(Superseded to 39-1280-03)

$

$

Not available

50

Toro 39-7570

ROD-SELECTOR, SPEED

$41.99

$

Usually ships in 3-6 days

0

51

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

52

Toro 39-1260

Panel-Escutcheon

$

$

Not available

53

Toro 39-1270

Decal-Escutcheon

$

$

Not available

54

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0
