38250 (421) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) AUGER ASSEMBLY Parts Diagram

Snow Thrower

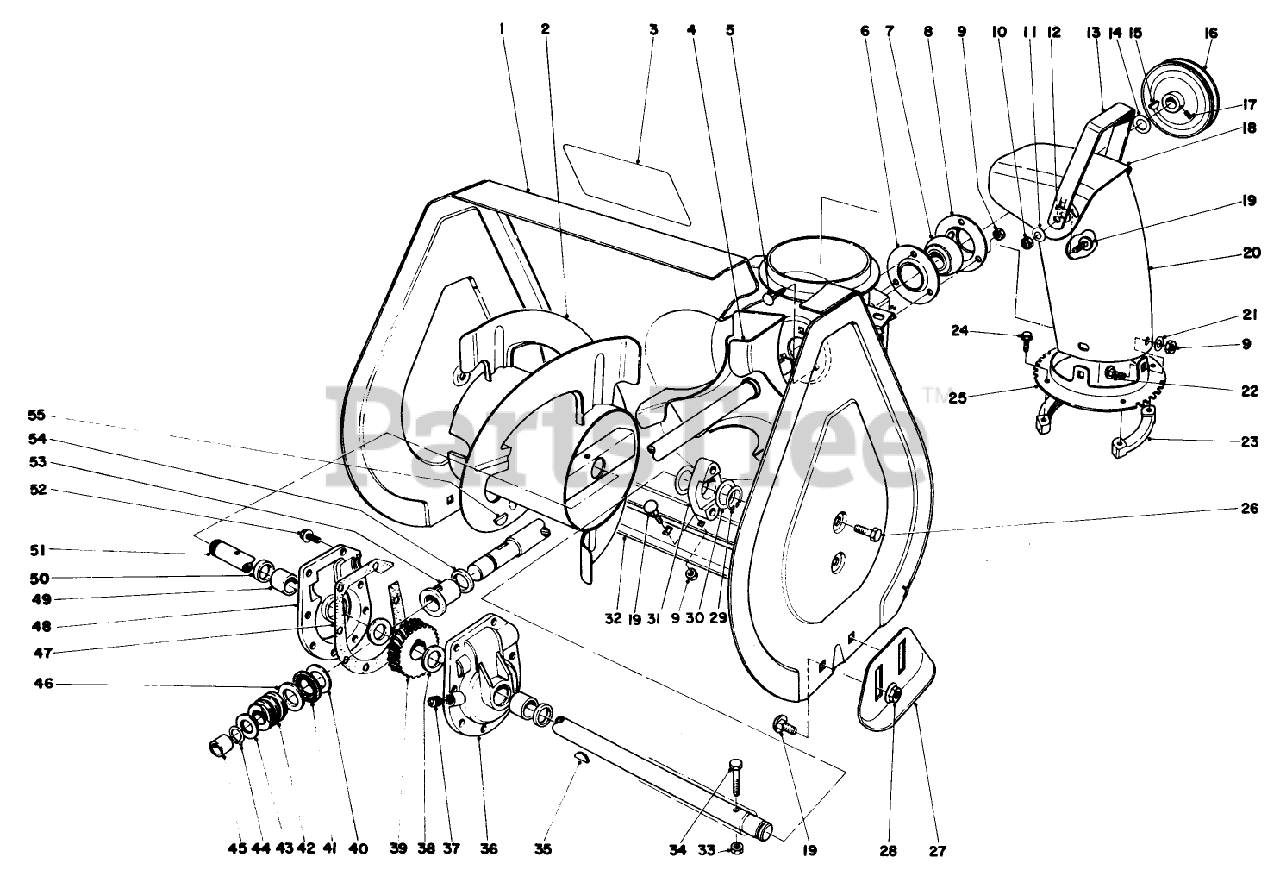

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 37-6650

Auger Housing
(Superseded to 94-2784)

$

$

Not available

2

Toro 39-1180

Auger R.H.
(Superseded to 39-1180-03)

$550.99

$

Usually ships in 3-6 days

0

Toro 39-1190

Auger L.H.
(Superseded to 39-1190-03)

Note: Not illustrated

$548.99

$

Usually ships in 3-6 days

0

3

Toro 29-6350

Decal-Warning
(Superseded to 54-9910)

$

$

Not available

4

Toro 37-6990

Shaft & Impeiler
(Superseded to 37-6990-03)

$

$

Not available

5

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

6

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, Qty 11

0

7

Toro 26-6100

Ball Bearing
(Superseded to 12-8789)

$34.99

$

In Stock, Qty 7

0

8

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, Qty 10

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

11

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

12

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

13

Toro 37-8930

Handle Deflector

$

$

Not available

14

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

15

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

16

Toro 37-6890

PULLEY

$216.99

$

Usually ships in 3-6 days

0

17

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

18

Toro 37-8920

Deflector
(Superseded to 11-9359)

$

$

Not available

19

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Toro 37-8910

Chute-Discharge

$

$

Not available

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

23

Toro 37-6490

RING-CHUTE, RETAINER

$19.99

$

In Stock, Qty 5

0

24

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

25

Toro 37-8940

Chute Ring

$

$

Not available

26

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

27

Toro 40-8160

Skid
(Superseded to 40-8160-01)

$28.99

$

In Stock, Qty 16

0

28

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

30

Toro 5-1550

WASHER

$7.49

$

Usually ships in 3-6 days

0

31

Toro 37-6550

BEARING-AUGER
(Superseded to 136-8685)

$74.99

$

In Stock, only 2 left!

0

32

Toro 39-1550

Blade-Scraper
(Superseded to 39-1551-01)

$76.99

$

In Stock, only 2 left!

0

33

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

34

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

36

Toro 37-8860

Gear Case L.H. (Incl. Ref. #49 & 50)
(Superseded to 14-2459)

$155.99

$

In Stock, only 2 left!

0

37

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

38

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

39

Toro 23-9050

Gear
(Superseded to 5-7180)

$183.99

$

In Stock, only 1 left!

0

40

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

41

Toro 252-76

BEARING-THRUST

$21.99

$

Usually ships in 3-6 days

0

42

Toro 5-7170

GEAR

$131.99

$

In Stock, only 3 left!

0

43

Toro 3-8664

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

44

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

45

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

46

Toro 252-80

WASHER-THRUST

$9.99

$

In Stock, only 4 left!

0

47

Toro 40-8330

asket
(Superseded to 51-0460)

$9.49

$

In Stock, Qty 5

0

48

Toro 37-8850

Gear Case R.H. (Incl. Ref. #49 & 50)
(Superseded to 14-2449)

$155.99

$

In Stock, only 2 left!

0

49

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

50

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, Qty 6

0

51

Toro 37-6800

AUGER SHAFT

$262.99

$

Usually ships in 3-6 days

0

52

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

53

Toro 37-6560

BUSHING-INPUT

$43.99

$

In Stock, only 1 left!

0

54

Toro 237-87

RING-QUAD

$7.49

$

In Stock, only 1 left!

0

55

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

Toro 37-6960

21 GEAR CASE ASM

Note: Not illustrated

$

$

Not available
