38250 (421) - Toro Snow Thrower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY Parts Diagram

Snow Thrower

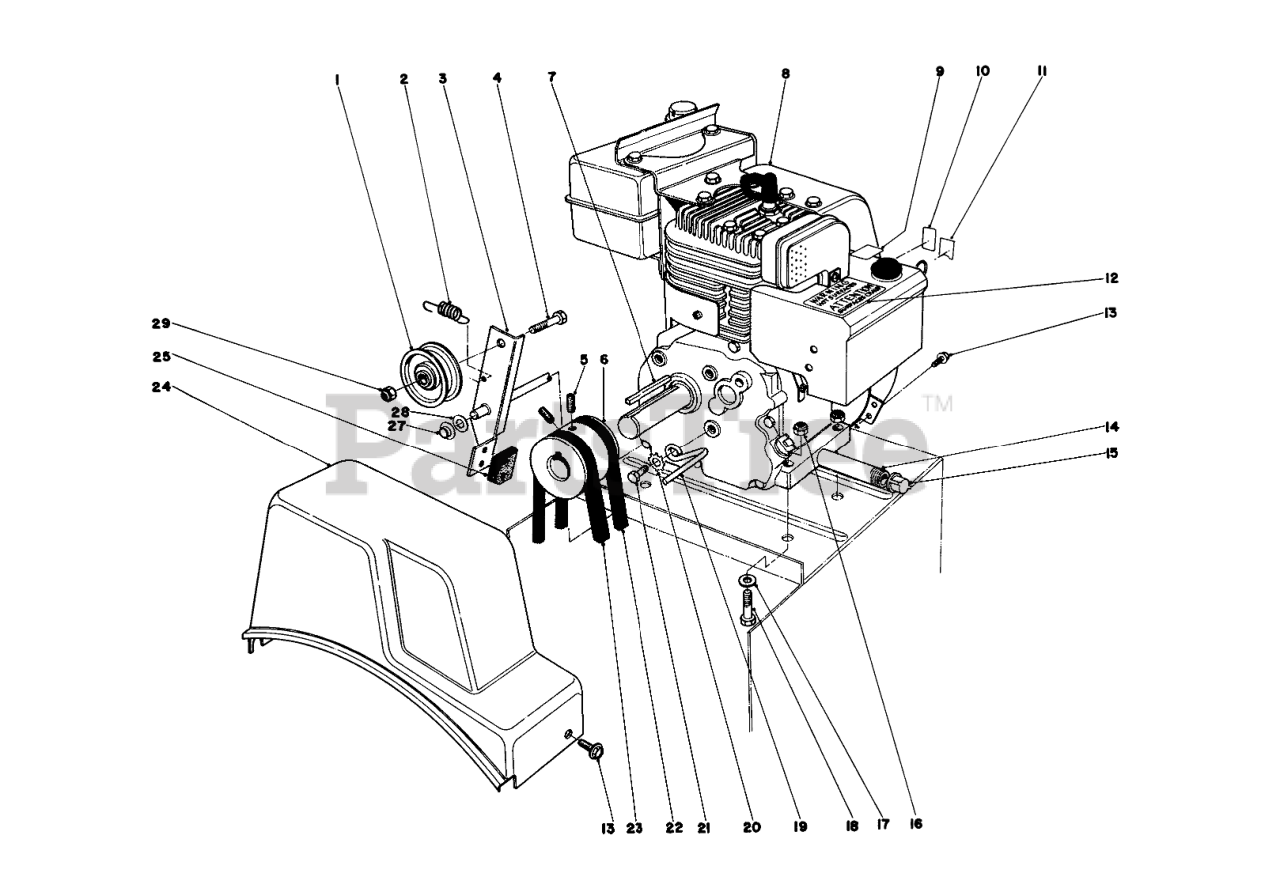

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

2

Toro 10-3890

EXTENSION SPRING

$27.99

$

Usually ships in 3-6 days

0

3

Toro 39-5300

Auger Clutch (Incl. Ref. #25)

$

$

Not available

4

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

5

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$13.99

$

Usually ships in 3-6 days

0

6

Toro 37-6720

ENGINE PULLEY

$

$

Not available

7

Toro 5-0930

KEY

$

$

Not available

8

Toro 221-639

Engine

$

$

Currently unavailable

9

Toro 39-3860

PRIMER DECAL

$

$

Not available

10

Toro 37-8890

DECAL THROTTLE

$

$

Not available

11

Toro 39-3850

CHOKE DECAL

$

$

Not available

12

Toro 29-6390

Decal Hot Surface Warning
(Superseded to 53-7680)

$

$

Not available

13

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

14

Toro 289-8

PIPE NIPPLE

$

$

Not available

15

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 37-8990

RETAINER-BELT

$10.99

$

Usually ships in 3-6 days

0

20

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

21

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

22

Toro 37-9090

V BELT-3L, TRACTION

$16.99

$

In Stock, Qty 5

0

23

Toro 37-9080

V-BELT (29.50 INCH)

$23.99

$

In Stock, Qty 10

0

24

Toro 37-6900

COVER-BELT

$71.99

$

Usually ships in 3-6 days

0

25

Toro 39-5720

Brake Pad & Cushion Assy.

$

$

Not available

27

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

29

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0
