38235 (S-200) - Toro Snow Thrower (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY (ENGINE TECUMSEH MODEL NO. AH520 TYPE 1603A) Parts Diagram

Snow Thrower

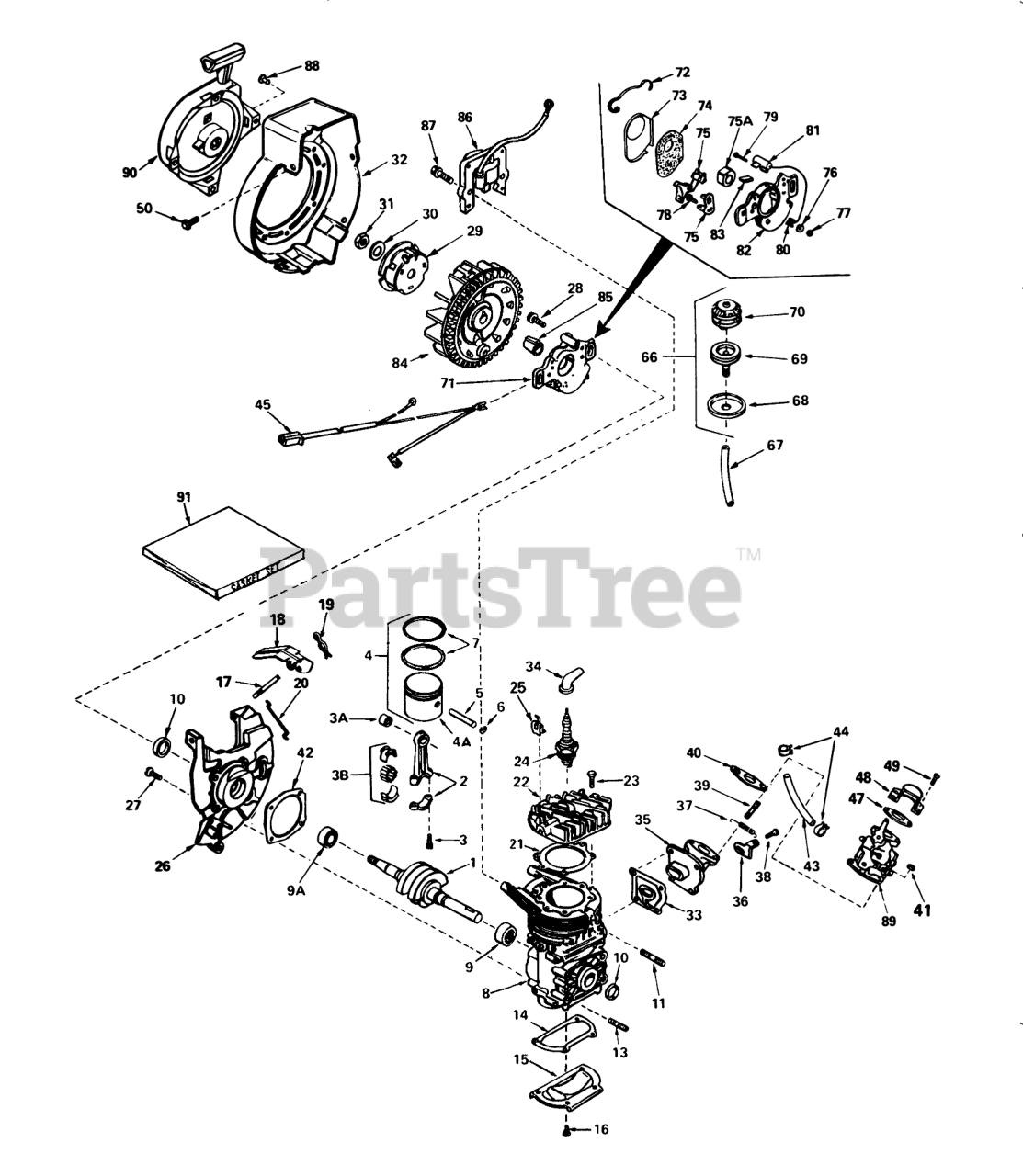

ENGINE ASSEMBLY (ENGINE TECUMSEH MODEL NO. AH520 TYPE 1603A) Parts Diagram

  • Title

1

Tecumseh 290497

Crankshaft

$

$

Currently unavailable

2

Tecumseh 310244

Rod Assy., Connecting (Incl. Ref. #3, 3A & 3B)

$

$

Currently unavailable

3

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

3A

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

Usually ships in 3-12 days

0

3B

Tecumseh 530149

Bearing & Liner Set Needle

$27.99

$

Usually ships in 3-12 days

0

4

Tecumseh 310259

Piston Assy. (Incl. Ref. #4A thru 7)

$30.99

$

Usually ships in 3-12 days

0

4A

Tecumseh 310230B

Piston
(Superseded to 310283A)

$33.99

$

Usually ships in 3-12 days

0

5

Tecumseh 310178

Pin, Piston

$9.49

$

Usually ships in 3-12 days

0

6

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

8

Block Assy., Cylinder (Order short block if replacement is required)

$

$

Not available

9

Tecumseh 530105

Bearing-Cartridge

$11.99

$

Usually ships in 3-12 days

0

9A

Tecumseh 530110

Bearing-Ball

$30.99

$

Usually ships in 3-12 days

0

10

Tecumseh 510319

Seal-Oil

$7.49

$

In Stock, Qty 8

0

11

Tecumseh 650801

Stud

$1.99

$

In Stock, only 3 left!

0

13

Tecumseh 650796

Stud

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 510270

Gasket, Cover
(Superseded to 510270A)

Note: Indicates items included in Gasket Set part no. 510264D

$5.49

$

Usually ships in 3-12 days

0

15

Tecumseh 570370A

Plate, Cover

$

$

Not available

16

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 490295

Shaft, Air Vane

$

$

Currently unavailable

18

Tecumseh 490296

Vane Assy., Air

$

$

Currently unavailable

19

Tecumseh 490278

Clip,Air Vane

$

$

Currently unavailable

20

Tecumseh 490294

Link-Governor

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 510274

Gasket, Head
(Superseded to 510274A)

Note: Indicates items included in Gasket Set part no. 510264D

$1.99

$

In Stock, only 4 left!

0

22

Tecumseh 250240A

Head-Cylinder
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

23

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

24

Tecumseh 611005

Head Adjustment Knob

$

$

Not available

26

Tecumseh 350398

Base Assy., Blower Housing (Incl. Ref #10 & 17)

$

$

Currently unavailable

27

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

29

Tecumseh 590551

Cup-Starter
(Superseded to 590551A)

$10.99

$

Usually ships in 3-12 days

0

30

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

31

Tecumseh 650390

Nut-Flywheel

$1.99

$

In Stock, only 3 left!

0

32

Tecumseh 350399

Housing-Blower

$

$

Not available

33

Tecumseh 510312

Gasket, Port
(Superseded to 510312A)

Note: Indicates items included in Gasket Set part no. 510264D

$1.99

$

In Stock, Qty 5

0

34

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

35

Tecumseh 570627

Elbow Assy., Adapter (Incl. Ref. #39)

$

$

Currently unavailable

36

Tecumseh 570626

Lever, Adjusting

$

$

Not available

37

Tecumseh 490293

Spring, Adjusting Lever

$3.99

$

In Stock, only 1 left!

0

38

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

39

Tecumseh 650700

Stud Carburetor

$

$

Not available

40

Tecumseh 510213

Gasket, Carburetor
(Superseded to 510213A)

Note: Indicates items included in Gasket Set part no. 510264D

$1.99

$

In Stock, only 4 left!

0

41

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, only 3 left!

0

42

Tecumseh 510292

Gasket, Shroud Base
(Superseded to 510292A)

Note: Indicates items included in Gasket Set part no. 510264D

$3.99

$

Usually ships in 3-12 days

0

43

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, Qty 9

0

44

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

45

Tecumseh 611012

Harness, Wire

$

$

Not available

47

Tecumseh 510206

Gasket
(Superseded to 35815)

$1.49

$

In Stock, Qty 20+

0

48

Tecumseh 570434

Baffle-Carburetor

$10.99

$

Usually ships in 3-12 days

0

49

Tecumseh 650229

Screw

$1.99

$

Usually ships in 3-12 days

0

50

Tecumseh 650356

Screw-Hex, Hd.

$1.99

$

Usually ships in 3-12 days

0

66

Tecumseh 570629A

Primer Assy. (Incl. Ref. #68, 69 & 70)
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

67

Tecumseh 32180B

Line, Primer
(Superseded to 32180C)

$6.99

$

In Stock, only 4 left!

0

68

Tecumseh 32312

Retainer, Primer Bulb
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

69

Tecumseh 32184

Body Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

70

Tecumseh 570442A

Bulb-Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

71

Tecumseh 611006

Stator Plate Assy. (Incl. Ref. #72 & 75 thru 83)

$

$

Not available

72

Tecumseh 30551

Spring Breaker Box

$

$

Not available

73

Tecumseh 610947

Cover-Dust

$3.99

$

Usually ships in 3-12 days

0

74

Tecumseh 30883

Gasket Dust
(Superseded to 610955)

$

$

Not available

75

Tecumseh 30547A

Breaker Assy.

$18.99

$

In Stock, only 1 left!

0

75A

Tecumseh 30552

Cam, Breaker

$

$

Not available

76

Tecumseh 610385

Washer

$

$

Not available

77

Tecumseh 610408

DECAL

$

$

Currently unavailable

78

Tecumseh 29181

Breaker Screw

$

$

Not available

79

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

80

Tecumseh 33356

Terminal, Ground

$1.99

$

In Stock, Qty 5

0

81

Tecumseh 30548B

Condenser

$13.99

$

In Stock, Qty 9

0

82

Tecumseh 611008

Stator Plate
(Superseded to 611006)

$

$

Not available

83

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 611010

FIywheel
(Superseded to 611050)

$64.99

$

Usually ships in 3-12 days

0

85

Tecumseh 611014

SHIELD
(Superseded to 611014A)

$3.99

$

In Stock, only 1 left!

0

86

Tecumseh 34431

Lamination & Coil Assy. (Incl. Ref. #34)
(Superseded to 730207)

$62.99

$

In Stock, only 2 left!

0

87

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

88

Rivet, Pop (3/16" dia.)(Can be purchased locally)

$

$

Not available

89

Tecumseh 632142

Carburetor (Incl. Ref. #40)
(Superseded to 632142B)

$

$

Not available

90

Tecumseh 590537

Starter-Rewind
(Superseded to 590706)

$68.99

$

In Stock, only 1 left!

0

91

Tecumseh 510264D

Gasket Set
(Superseded to 510264E)

$26.99

$

In Stock, only 1 left!

0
