38235 (S-200) - Toro Snow Thrower (SN: 000000001 - 000999999) (1980) MAGNETO NO. 610794A ENGINE MODEL AH520 TYPE 1585A UNIT MODEL 38225 (USED ON UNITS WITH SERIAL NO. 0000001 THRU 0299999) ENGINE MOD Parts Diagram

Snow Thrower

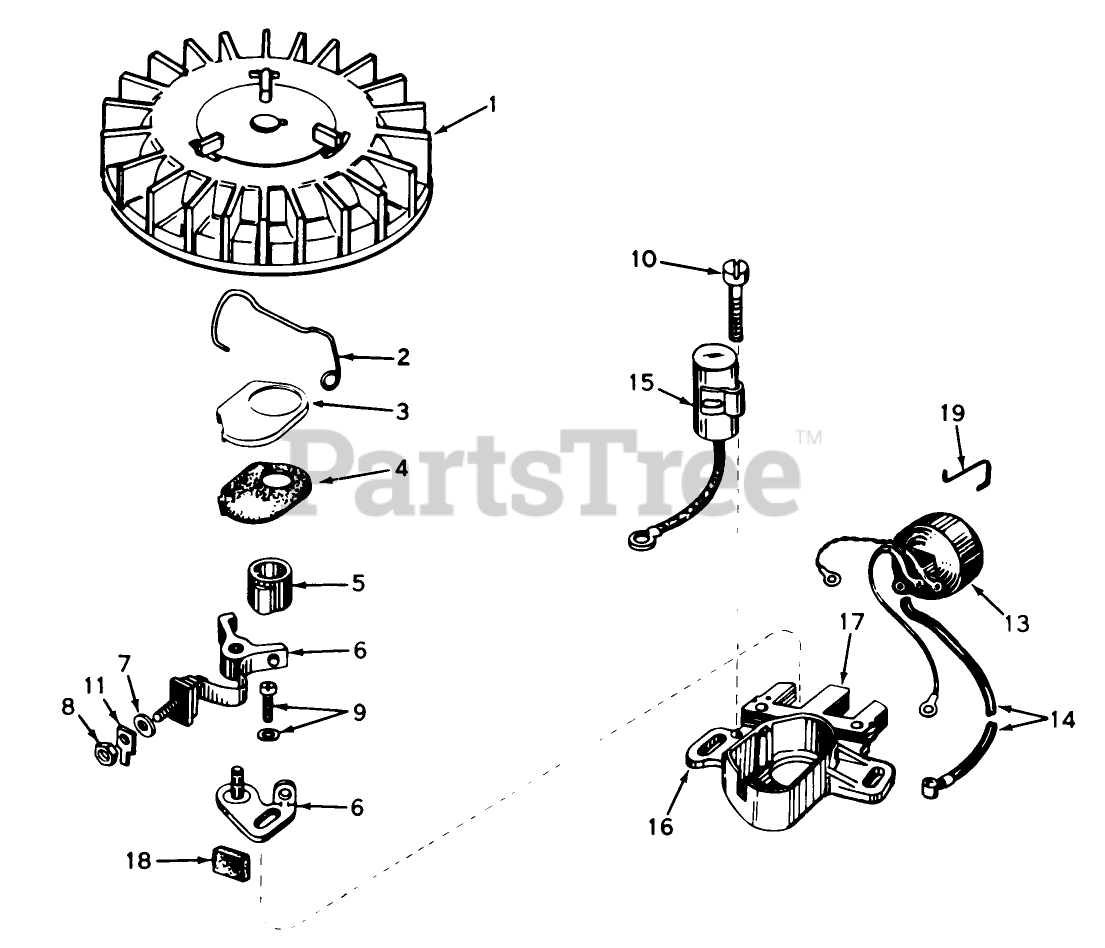

MAGNETO NO. 610794A ENGINE MODEL AH520 TYPE 1585A UNIT MODEL 38225 (USED ON UNITS WITH SERIAL NO. 0000001 THRU 0299999) ENGINE MOD Parts Diagram

  • Title

1

Tecumseh 610781A

Flywheel (Incl. Ref. #3 & 4)
(Superseded to 610782B)

$

$

Not available

2

Tecumseh 30551

Spring Breaker Box

$

$

Not available

3

Tecumseh 610947

Cover-Dust

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 610948

Gasket, Dust Cover

$3.99

$

Usually ships in 3-12 days

0

5

Tecumseh 30552

Cam, Breaker

$

$

Not available

6

Tecumseh 30547A

Breaker Assy.

$18.99

$

In Stock, only 2 left!

0

7

Tecumseh 610385

Washer

$

$

Not available

8

Tecumseh 610408

DECAL

$

$

Currently unavailable

9

Tecumseh 29181

Breaker Screw

$

$

Not available

10

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 33356

Terminal, Ground

$1.99

$

In Stock, Qty 5

0

13

Tecumseh 30560A

Coil Assy. (Incl. Ref. #14)

$48.99

$

In Stock, only 1 left!

0

14

Tecumseh 30554

Wire, Lead

$

$

Not available

15

Tecumseh 30548B

Condenser

$13.99

$

In Stock, Qty 10

0

16

Tecumseh 30545

Core & Plate

$

$

Not available

17

Tecumseh 30561B

Stator Assy. (Incl. Ref. #2, 3, 4, 6 thru 11, 13, 15, 16, 18 & 19)

$

$

Not available

18

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 4 left!

0

19

Tecumseh 31311

Clip, Coil

$

$

Not available
