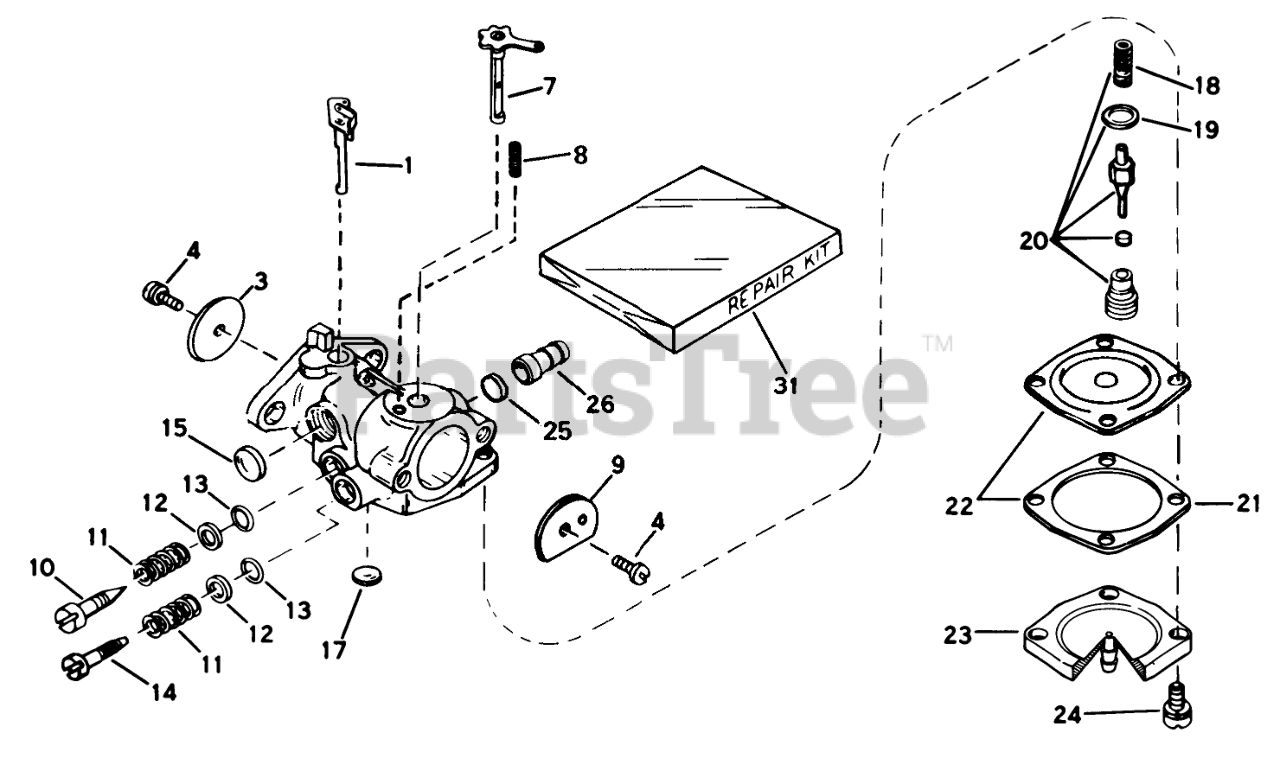

38232 (S-200) - Toro Snow Thrower (SN: 003000001 - 003999999) (1983) CARBURETOR NO. 632142 ENGINE MODEL NO. AH520 TYPE 1602 & 1602A Parts Diagram

Snow Thrower

CARBURETOR NO. 632142 ENGINE MODEL NO. AH520 TYPE 1602 & 1602A Parts Diagram

  • Title
1

Tecumseh 632130

Shaft/Lever-Throttle

$7.49

$

In Stock, only 1 left!

0

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

7

Tecumseh 631888

Shaft & Lever Assembly

$

$

Not available

8

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 31837

Shutter-Choke

$1.99

$

In Stock, only 1 left!

0

10

Tecumseh 631562

Screw-Idle Adjustment

$5.49

$

In Stock, Qty 11

0

11

$1.99

$

In Stock, Qty 8

0

12

$1.99

$

In Stock, Qty 6

0

13

Tecumseh 630740

"O"Ring

Note: Indicates items included in Repair Kit part no. 631893

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 630898

Screw Main Adjustment

$2.49

$

In Stock, Qty 8

0

15

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Indicates items included in Repair Kit part no. 631893

$1.99

$

In Stock, only 1 left!

0

17

Tecumseh 630746

Plug Welch
(Superseded to 632554)

$1.99

$

In Stock, only 1 left!

0

Toro 640746

Plug, Welch

Note: Indicates items included in Repair Kit part no. 631893

$

$

Currently unavailable

Toro 640746

Plug, Welch

Note: Not illustrated

$

$

Currently unavailable

18

Tecumseh 631049

Spring-Valve

$1.99

$

In Stock, only 1 left!

0

19

Tecumseh 630742

Gasket-Valve Seat

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 630932A

Inlet Needle, Seat, Spring & Gasket Assy. (Incl. Ref. #18 & 19)

Note: Indicates items included in Repair Kit part no. 631893

$9.49

$

In Stock, Qty 11

0

21

Tecumseh 630750

Gasket-Diaphragm
(Superseded to 630750A)

$4.49

$

In Stock, only 2 left!

0

22

Tecumseh 630978

Diaphragm Assy. (Incl. Ref. #21)

Note: Indicates items included in Repair Kit part no. 631893

$5.99

$

In Stock, only 4 left!

0

23

Tecumseh 632127

Cover-Diaphragm

$

$

Not available

Tecumseh 631653

Cover, Diaphragm

Note: Not illustrated

$10.99

$

Usually ships in 3-12 days

0

24

$

$

Not available

25

$1.99

$

Usually ships in 3-12 days

0

Tecumseh 631201

Valve Check

Note: Not illustrated

$21.99

$

Usually ships in 3-12 days

0

26

Tecumseh 632164

Fitting-Fuel

$3.99

$

In Stock, only 1 left!

0

Tecumseh 631803

Fuel Fitting
(Superseded to 632164)

Note: Not illustrated

$3.99

$

In Stock, only 1 left!

0

31

Tecumseh 631893

Kit-Repair
(Superseded to 631893A)

$23.99

$

In Stock, Qty 5

0
