38232 (S-200) - Toro Snow Thrower (SN: 002000001 - 002999999) (1982) LOWER MAIN FRAME ASSEMBLY Parts Diagram

Snow Thrower

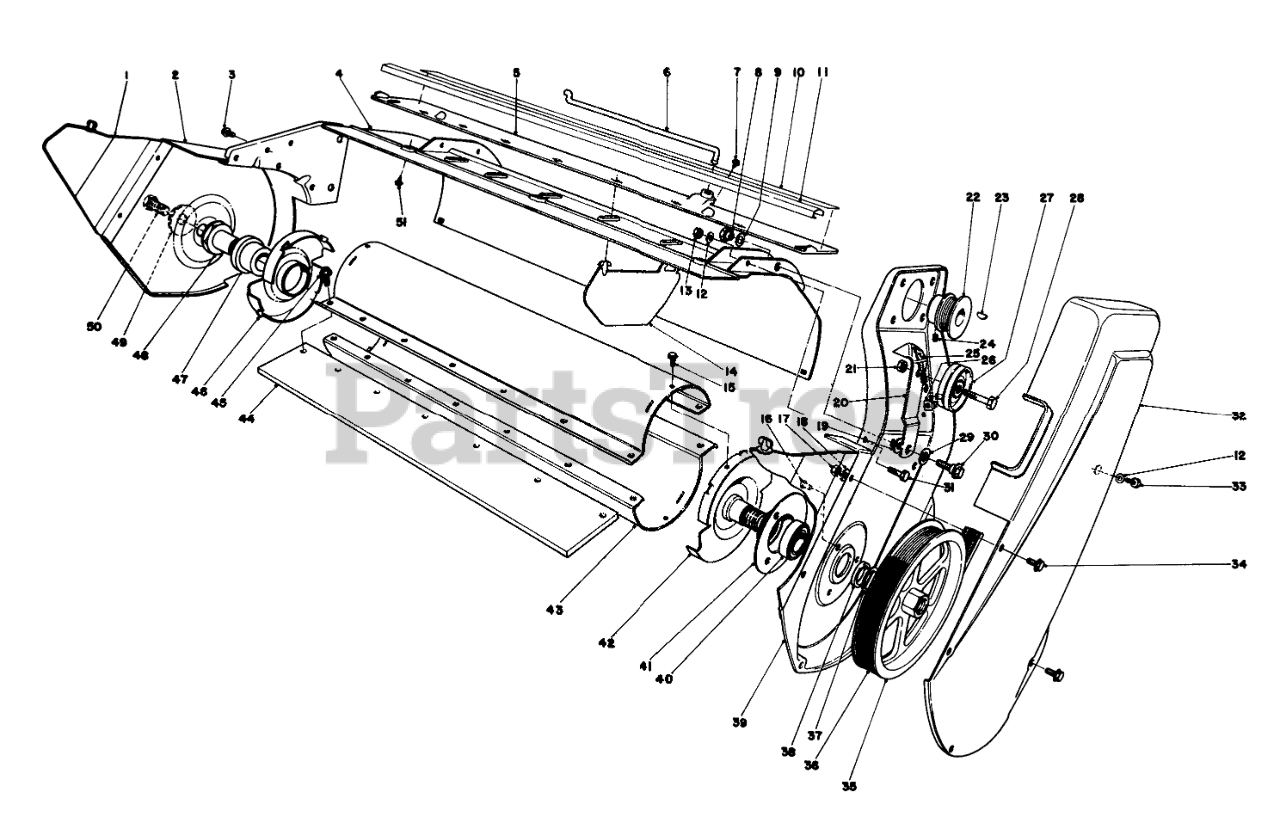

LOWER MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 39-2380

Vane-Outside
(Superseded to 52-7080)

$8.99

$

In Stock, Qty 7

0

2

Toro 39-1060

Side Plate Right

$

$

Not available

3

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

4

Toro 26-9680

Housing

$

$

Not available

5

Toro 39-2490

Vane Mount
(Superseded to 13-1689)

$

$

Not available

6

Toro 25-5630

Linkage-Vane Adj.
(Superseded to 52-7090)

$

$

Not available

7

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

8

Toro 17-7010

Pivot Nut

$

$

Not available

9

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

10

Toro 43-9150

Decal-Warning

$

$

Not available

11

Toro 41-8400

Moulding Assy. (Incl. Ref. #10)
(Superseded to 13-1689)

$

$

Not available

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

14

Toro 39-1540

Vane
(Superseded to 52-7060)

$10.99

$

In Stock, Qty 20+

0

15

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

16

Toro 3292-7

3/16X3/8 SOLID RIVET

$

$

Not available

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 5-0774

WASHER CONTROL PIVOT
(Superseded to 3256-61)

$2.99

$

In Stock, only 2 left!

0

19

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

20

Toro 26-8990

IDLER ARM

$204.99

$

Usually ships in 3-6 days

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 25-6400

Pulley

$

$

Not available

23

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

24

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

25

Toro 26-9730

IDLER SPRING

$23.99

$

Usually ships in 3-6 days

0

26

Toro 3290-225

TINNERMAN NUT

$9.99

$

In Stock, only 4 left!

0

27

Toro 25-5880

IDLER PULLEY

$

$

Not available

28

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

30

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

31

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 29-5490

Drive Cover
(Superseded to 16-1349)

$63.99

$

In Stock, only 1 left!

0

33

Toro 3235-18

1/4-20 X 5/8 CAPSCREW

$10.99

$

Usually ships in 3-6 days

0

34

Toro 32105-2

SCREW-SHWH

$3.99

$

Usually ships in 3-6 days

0

35

Toro 23-7360

Rotor Pulley

$

$

Not available

36

Toro 25-6430

BELT - DRIVE

$29.99

$

In Stock, only 3 left!

0

37

Toro 26-0970

WASHER

$11.99

$

Usually ships in 3-6 days

0

38

Toro 38-8630

SPACER

$8.49

$

In Stock, only 1 left!

0

39

Toro 33-2130

Plate-L.H. Side
(Superseded to 33-2130-03)

$

$

Not available

40

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

41

Toro 38-8620

FLANGE-BEARING

$

$

Not available

42

Toro 38-8610

Drive Shaft & End Cap
(Superseded to 41-8150-03)

$107.99

$

Usually ships in 3-6 days

0

43

Toro 23-3190

ROTOR SHELL

$

$

Not available

44

Toro 23-3730

ROTOR BLADE

$32.99

$

In Stock, only 2 left!

0

45

Toro 37-0370

Screw
(Superseded to 32144-9)

$5.49

$

In Stock, only 2 left!

0

46

Toro 39-1070

End Cap Assembly, R.H. (Incl. Ref. #47)

$

$

Not available

47

Toro 39-0790

ROTOR BUSHING

$49.99

$

Usually ships in 3-6 days

0

48

Toro 39-0830

ROTOR SHAFT

$

$

Not available

49

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

50

Toro 323-41

SCREW-HH

$1.99

$

In Stock, Qty 14

0

51

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 20+

0
