38230 (S-200) - Toro Snow Thrower (SN: 009000001 - 009999999) (1979) STARTER MOTOR & SWITCH ASSEMBLY (MODEL 38230) Parts Diagram

Snow Thrower

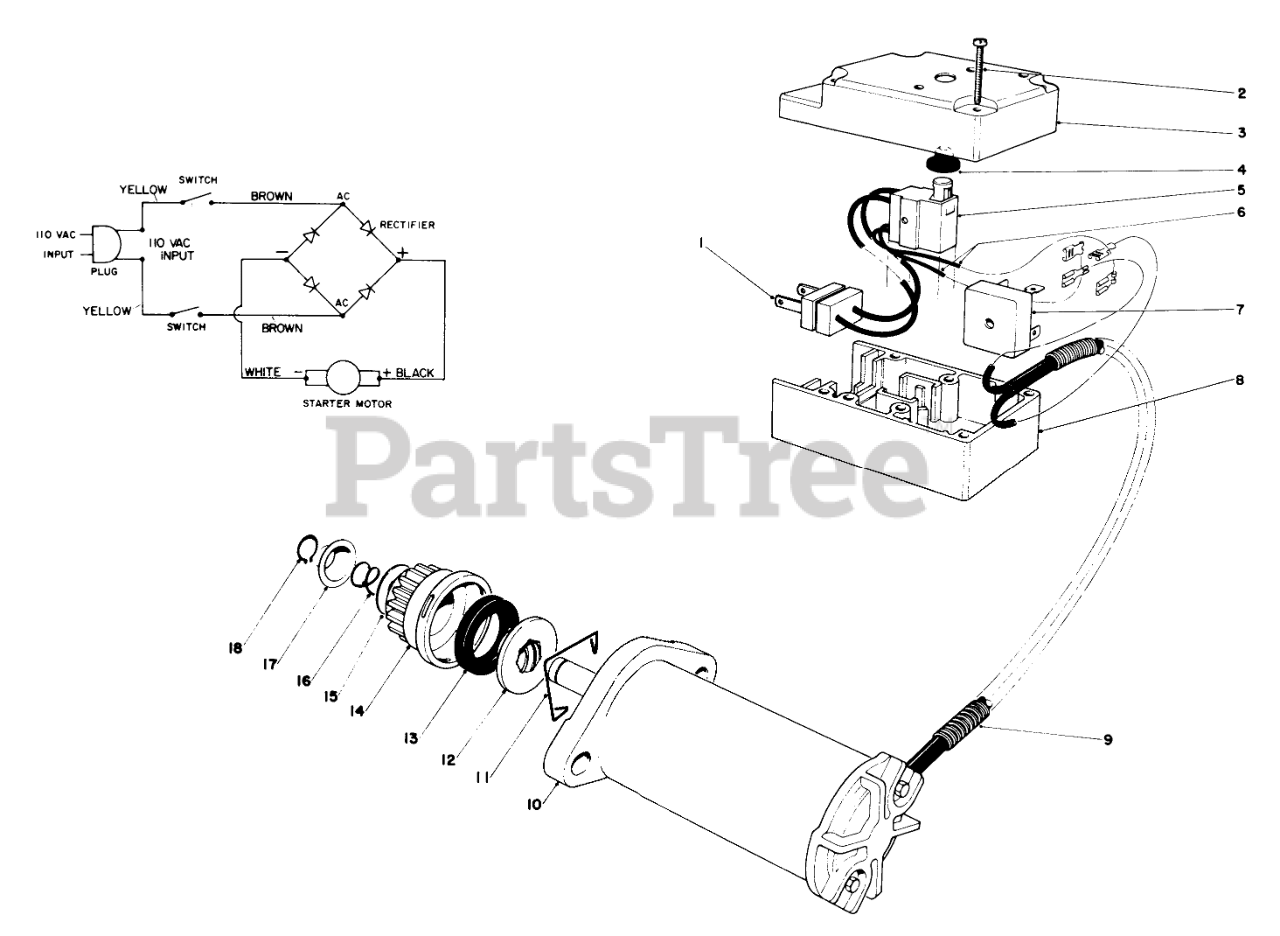

STARTER MOTOR & SWITCH ASSEMBLY (MODEL 38230) Parts Diagram

  • Title

1

Toro 36-8370

Plug
(Superseded to 94-9933)

$7.99

$

In Stock, only 1 left!

0

2

Toro 32144-27

SCREW-PLASTITE

$7.49

$

Usually ships in 3-6 days

0

3

Toro 28-9960

Cap-Switch Housing

$

$

Not available

4

Toro 36-8350

BOOT-SWITCH

$10.99

$

In Stock, Qty 6

0

5

Toro 36-8340

SWITCH-STARTER

$29.99

$

In Stock, only 4 left!

0

6

Toro 36-8360

WIRE

$

$

Not available

7

Toro 37-7600

RECTIFIER-BRIDGE

$27.99

$

In Stock, only 1 left!

0

8

Toro 36-8330

Base-Switch Housing

$

$

Not available

9

Toro 33-5130

CABLE COVER

$

$

Not available

10

Toro 33-4390

Pivot Washer
(Superseded to 92-6021)

$

$

Not available

11

Toro 5-6530

RETAINING CLIP

$8.49

$

In Stock, only 1 left!

0

12

Helix Pinion Nut

$

$

Not available

13

Toro 25-3400

RUBBER RING

$

$

Not available

14

Toro 28-9110

PINION GEAR

$

$

Not available

15

Toro 33-5570

WASHER

$

$

Not available

16

Toro 33-3230

COMP SPRING

$6.99

$

In Stock, Qty 8

0

17

Toro 33-3210

PINION STOP

$20.99

$

In Stock, Qty 7

0

18

Toro 32151-49

RET RING

$4.99

$

In Stock, Qty 9

0

Toro 28-9140

Starter Motor Assembly (Incl. Ref. #9-17)

Note: Not illustrated

$

$

Not available

Toro 36-5350

Pinion Assembly (Incl. Ref. #11-14)

Note: Not illustrated

$

$

Not available

Toro 28-9170

CORD
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
