38230 (S-200) - Toro Snow Thrower (SN: 009000001 - 009999999) (1979) ENGINE ASSEMBLY (MODEL 38230) Parts Diagram

Snow Thrower

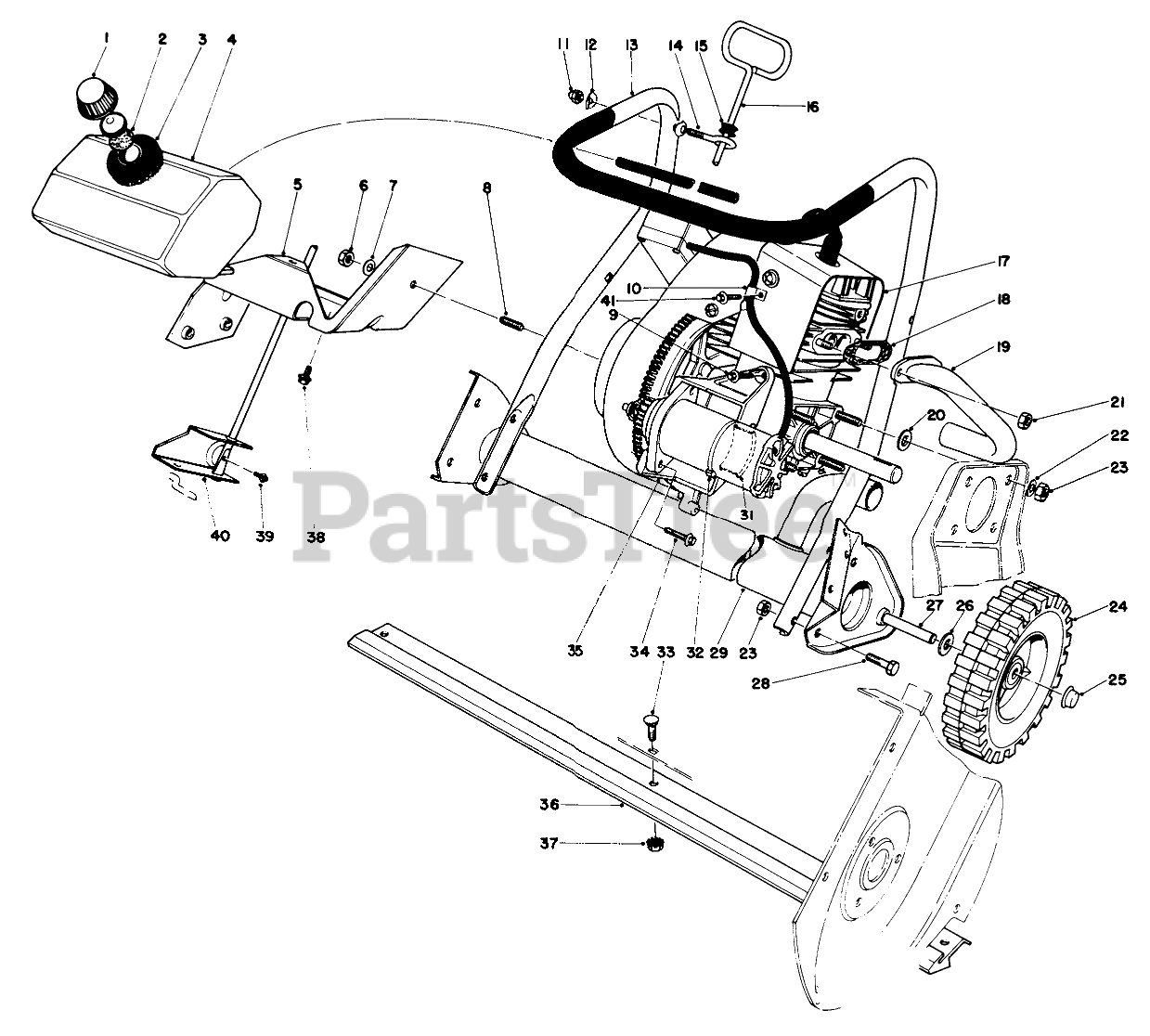

ENGINE ASSEMBLY (MODEL 38230) Parts Diagram

  • Title

1

Toro 38-3000

Gas Cap (Incl. Ref. #2)
(Superseded to 42-0680)

$

$

Not available

2

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

3

Toro 25-1610

FOAM PAD

$

$

Not available

4

Toro 23-5230

Gas Tank

$

$

Not available

5

Toro 29-5480

Rear Support Engine

$

$

Not available

6

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

7

Toro 3-5792

WASHER

$6.99

$

Usually ships in 3-6 days

0

8

Toro 29-5700

Stud

$

$

Not available

9

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

10

Toro 2412-65

CABLE CLAMP

$

$

Not available

11

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

12

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

13

Toro 33-2120

Lower Handle
(Superseded to 49-1390)

$129.99

$

Usually ships in 3-6 days

0

14

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

15

Toro 237-73

GROMMET

$

$

Not available

16

Toro 23-4540

Rod Vane Adjustment

$

$

Not available

17

Toro 221-558

Engine

$

$

Currently unavailable

18

Toro 23-3810

EXHAUST GASKET

$

$

Not available

19

Toro 27-0530

Exhaust Pipe
(Superseded to 52-7200)

$

$

Not available

20

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

21

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 23-3250

WHEEL

$20.99

$

In Stock, Qty 5

0

25

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

26

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 27-0060

AXLE

$

$

Not available

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 26-6550

EXHAUST MUFFLER ASM

$411.99

$

Usually ships in 3-6 days

0

31

Toro 28-9120

RR MOTOR SUPPORT

$

$

Not available

32

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

33

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

34

Toro 32144-26

SCREW-FLOW, TAPTITE

$

$

Not available

35

Toro 28-9160

Bracket-Motor Mount
(Superseded to 51-2990)

$

$

Not available

36

Toro 23-3170

SCRAPER

$31.99

$

In Stock, Qty 8

0

37

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

38

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

39

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

40

Toro 25-5690

Bracket-Vane Adjustment
(Superseded to 39-0840)

$

$

Not available

41

Toro 32149-10

NUT-KEPS

$3.49

$

Usually ships in 3-6 days

0

Toro 8-2399

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
