38225 (S-200) - Toro Snow Thrower (SN: 000000001 - 000299999) (1980) Shroud Rewind Starter No. 590537 Engine Model Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 02999 Parts Diagram

Snow Thrower

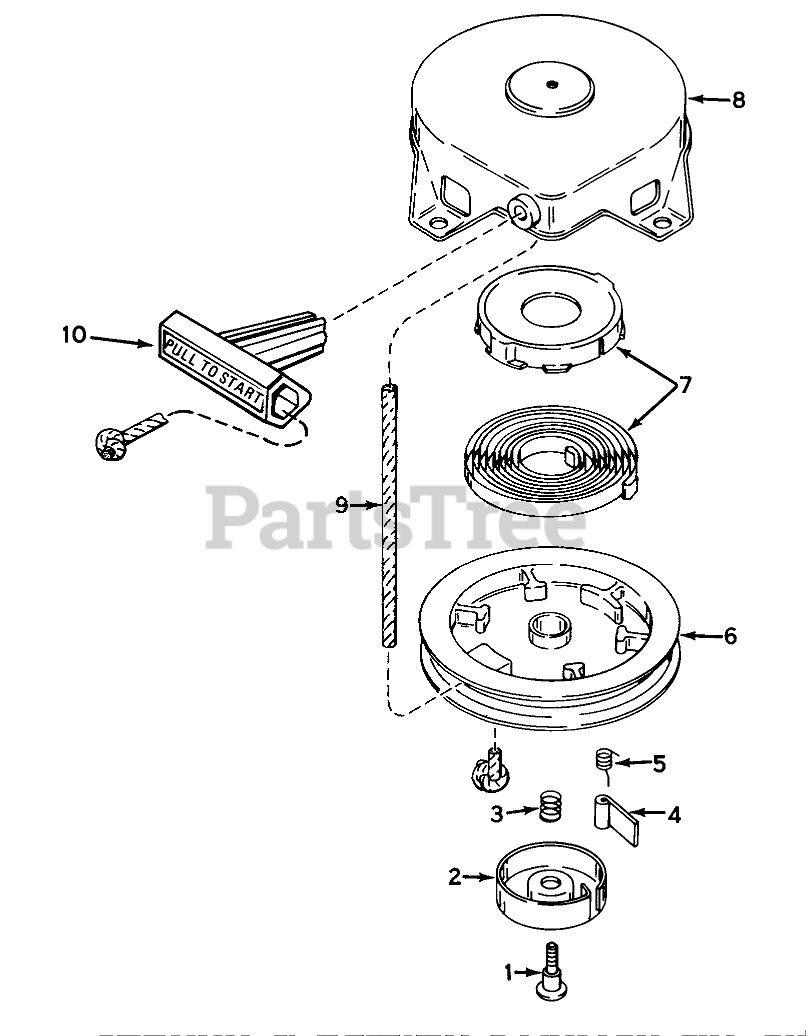

Shroud Rewind Starter No. 590537 Engine Model Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 02999 Parts Diagram

  • Title
1

Toro 590409A

Screw

$

$

Currently unavailable

2

Toro 590410

Retainer

$

$

Currently unavailable

3

Toro 590411

Spring-Brake

$

$

Currently unavailable

4

Toro 590148

Dog-Starter

$

$

Currently unavailable

5

Toro 590412

Spring-Dog

$

$

Currently unavailable

6

Toro 590413A

Pulley

$

$

Currently unavailable

7

Toro 590414

Spring Keeper Assy

$

$

Currently unavailable

8

Toro 590536

Housing Assy., Starter (Incl. Ref. #1)

$

$

Currently unavailable

9

Toro 590535

Rope-Starter (98 cut to length)

$

$

Currently unavailable

10

Toro 590452

Handle-Starter

$

$

Currently unavailable
